Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt.

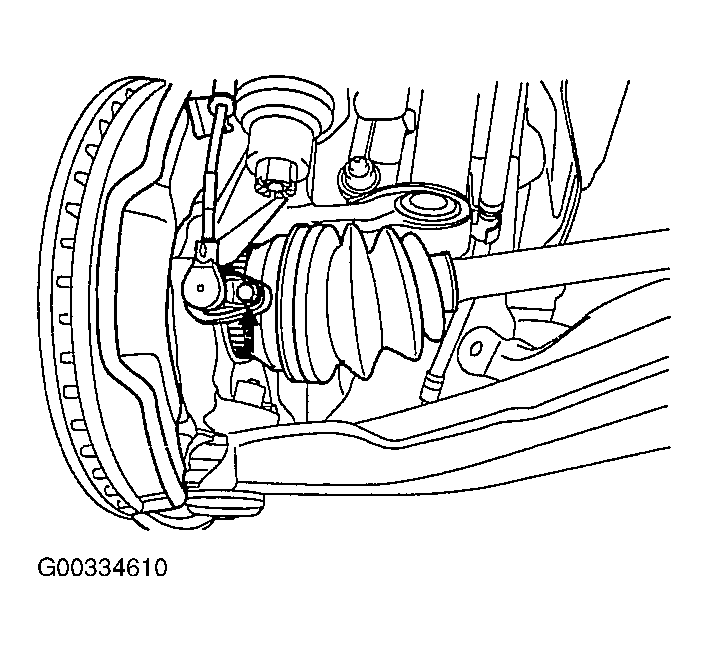

    Fig 1: Locating Front Wheel Speed Sensor Mounting Bolt
    G00334610Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel guard.

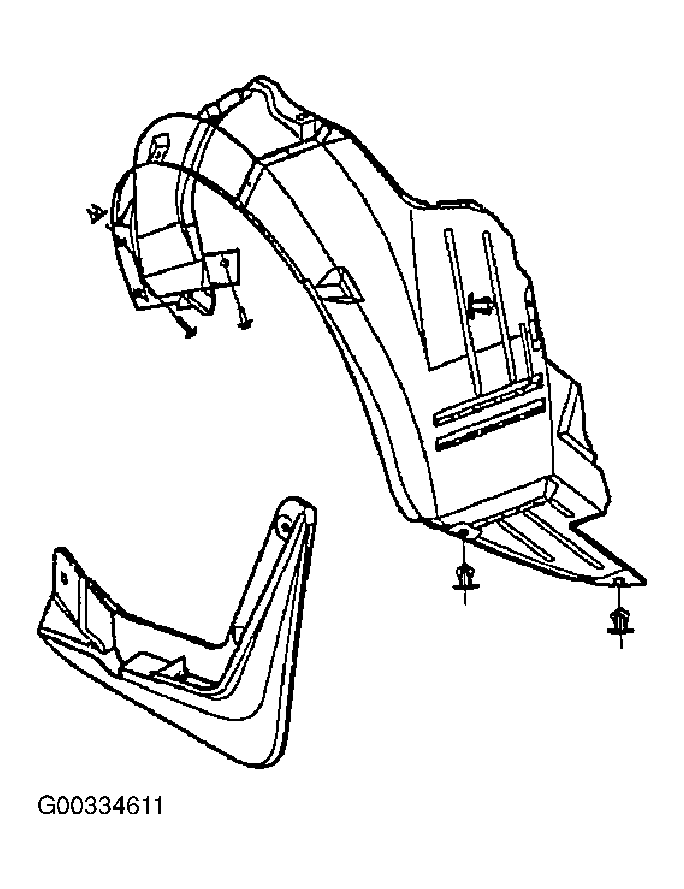

    Fig 2: Removing Front Wheel Guard
    G00334611Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.

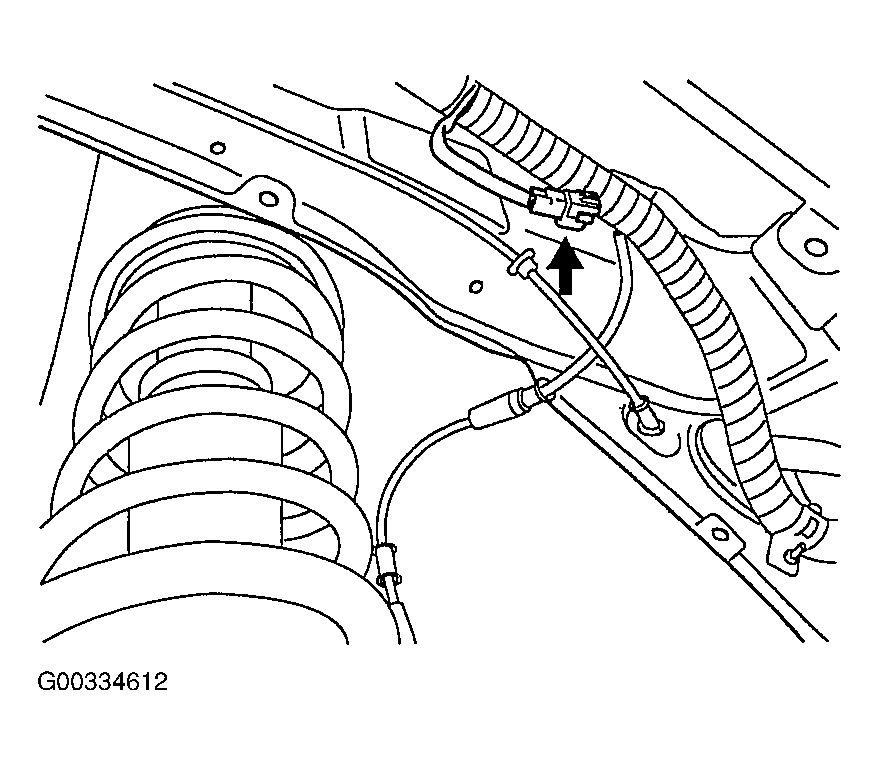

    Fig 3: Disconnecting Wheel Speed Sensor Connector
    G00334612Courtesy of HYUNDAI MOTOR CO.
