Hydraulic System Diagram

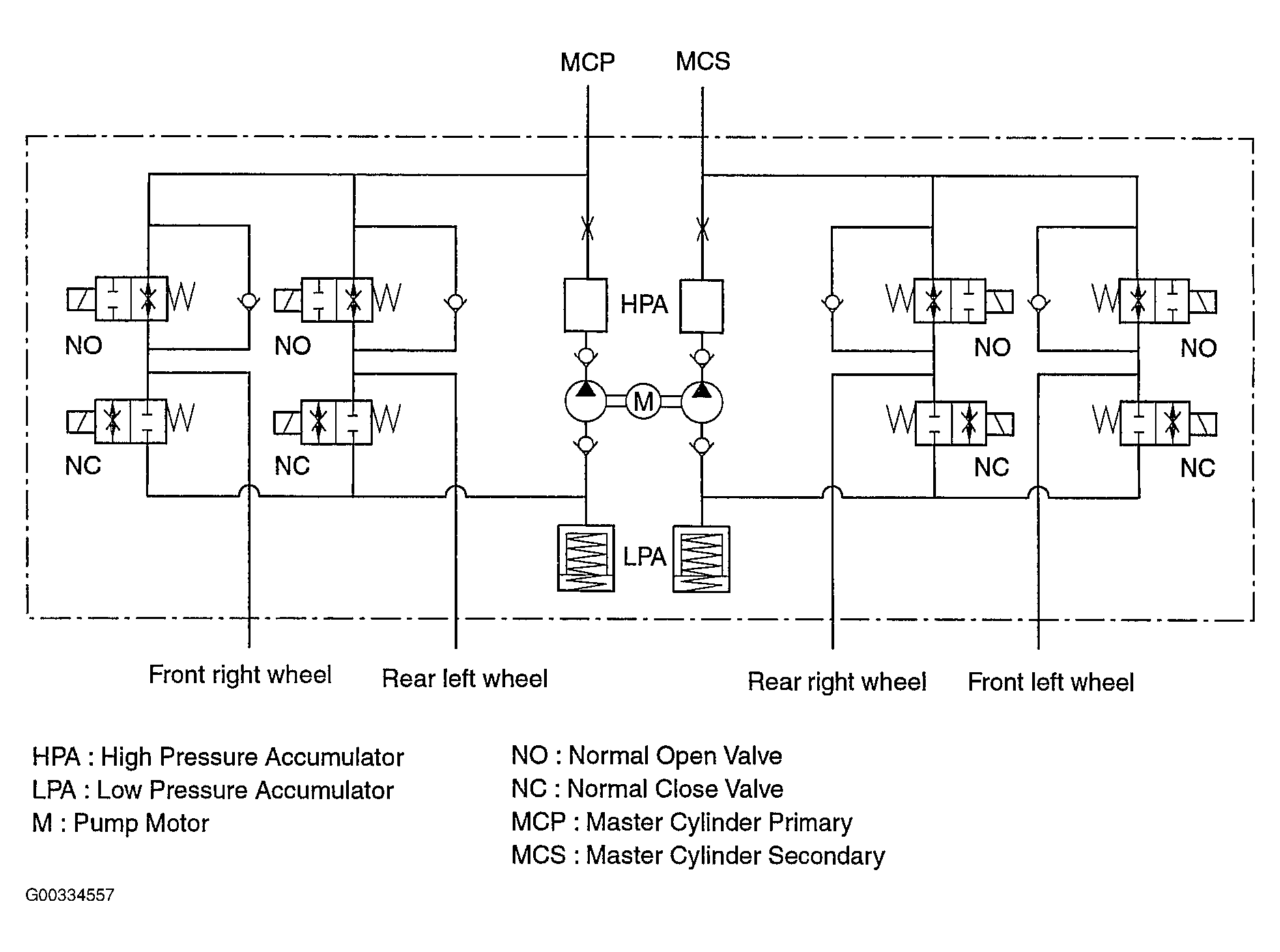

Fig 1: Hydraulic System Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
