Main Moving System: Camshaft: Components

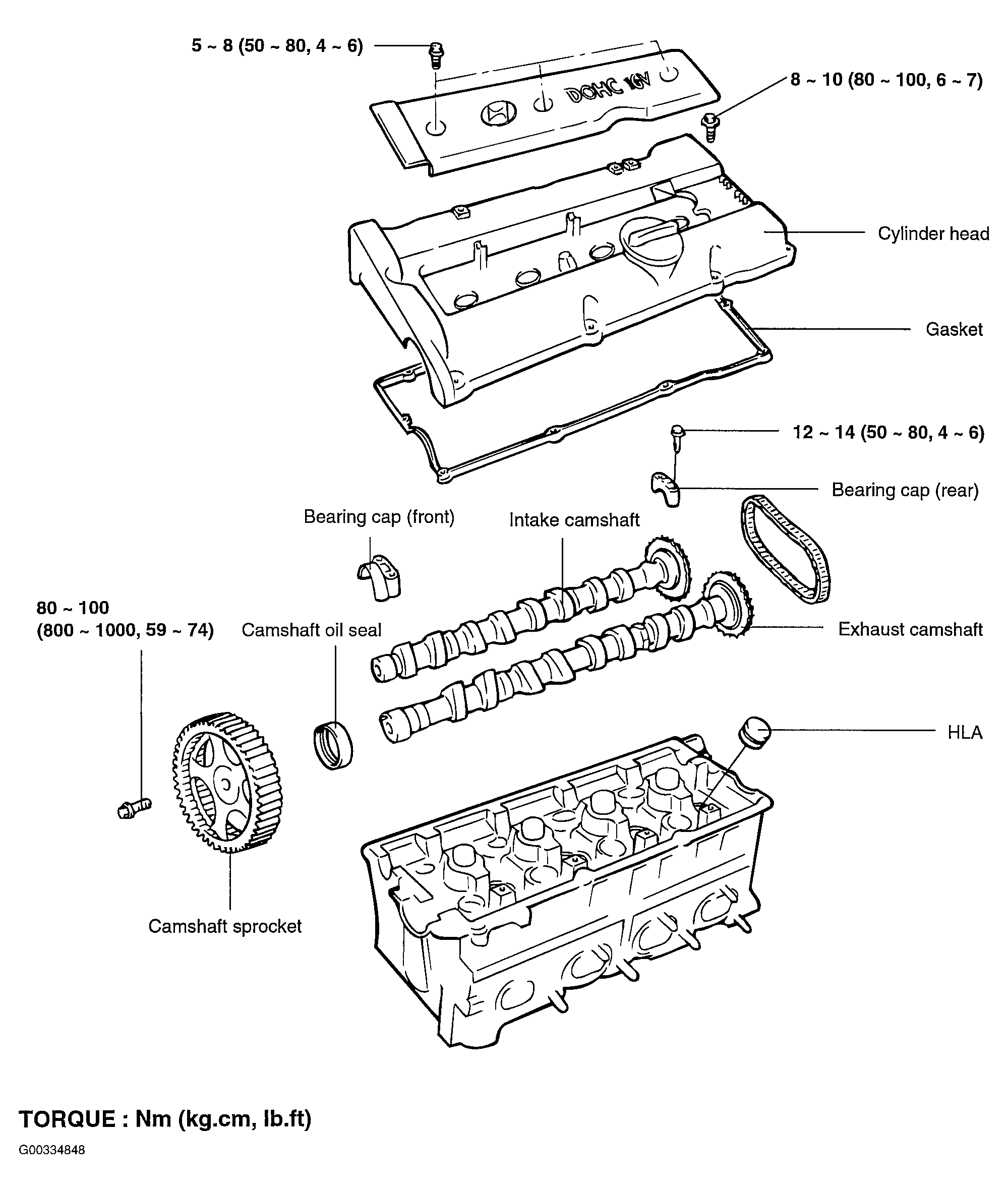

Fig 1: Identifying Camshaft Components
G00334848Courtesy of HYUNDAI MOTOR CO.
