Home › Hyundai › 2004 › Accent Base › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System › Fuel Delivery System › Throttle Body › Components

Throttle Body: Components

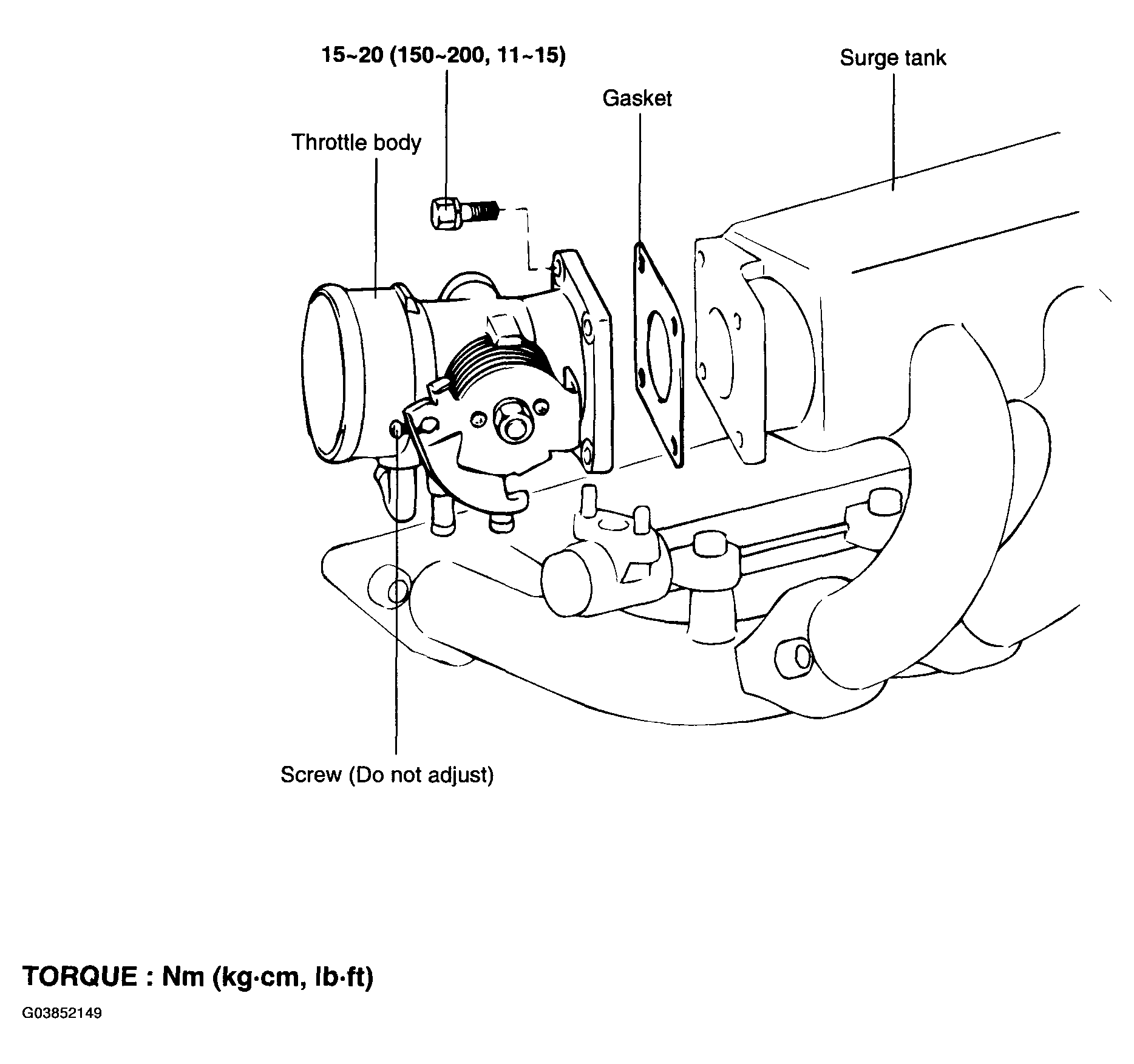

Fig 1: Throttle Body Replacement Components And Torque Specs.
G03852149Courtesy of HYUNDAI MOTOR CO.
