Throttle Body: Removal

CAUTION: The throttle valve must not be removed.

Remove the throttle position sensor.

NOTE: Except when necessary for replacement, the throttle position sensor must not be removed.

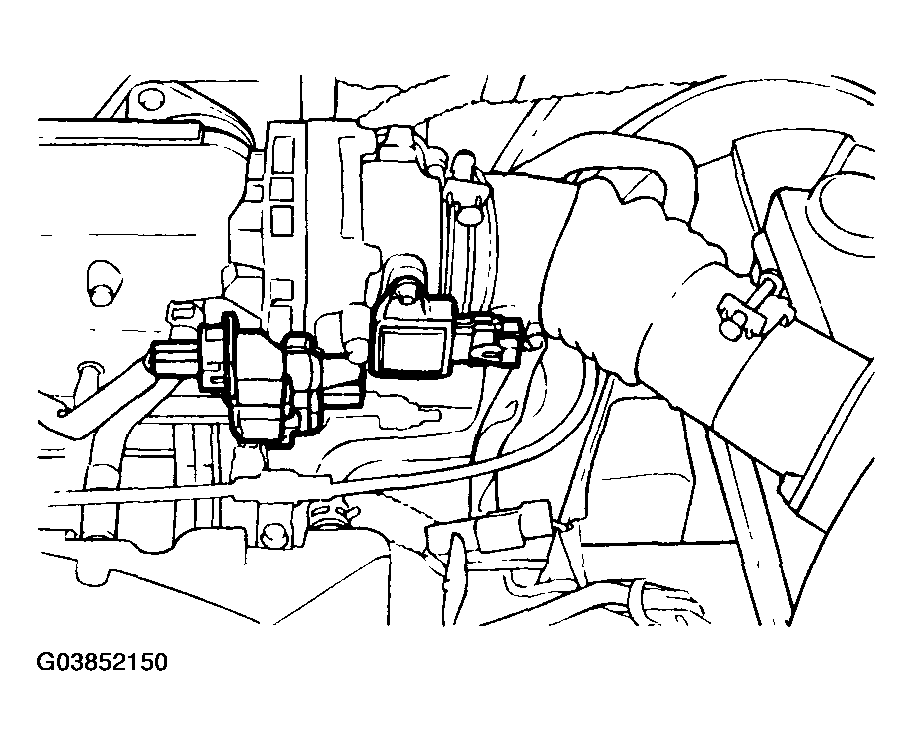

Fig 1: Locating Throttle Position Sensor

Courtesy of HYUNDAI MOTOR CO.
