Camshaft Position Sensor (CMPS)
›
Harness Inspection Procedures
Harness Inspection Procedures

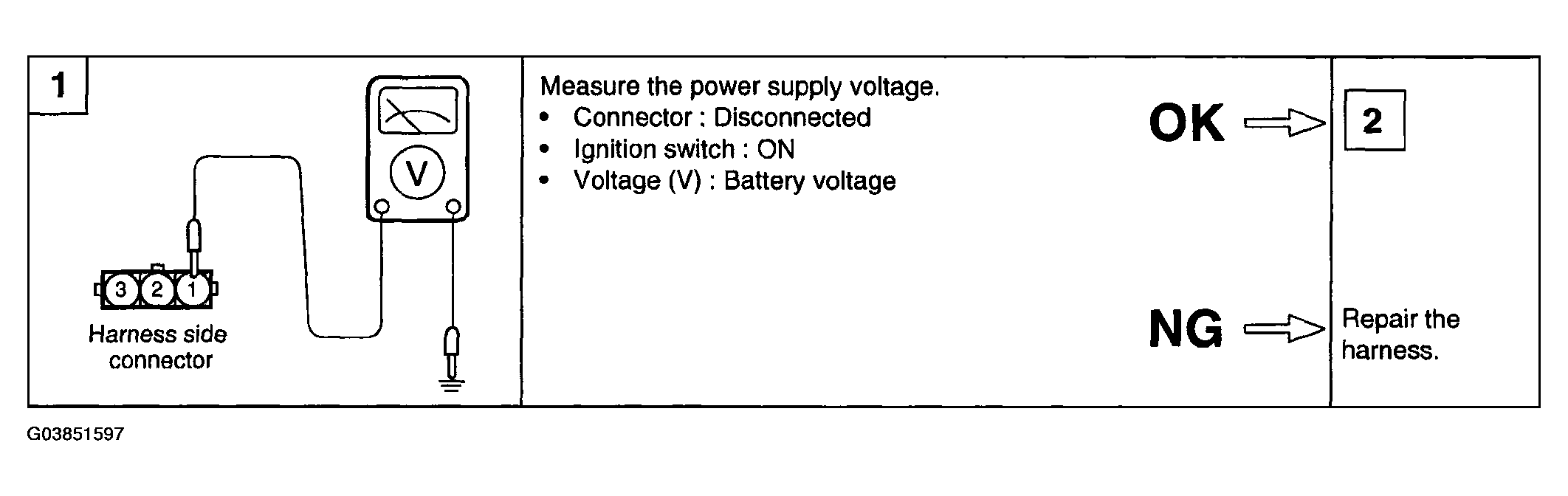

Fig 1: Camshaft Position Sensor Harness Inspection Procedures Chart (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

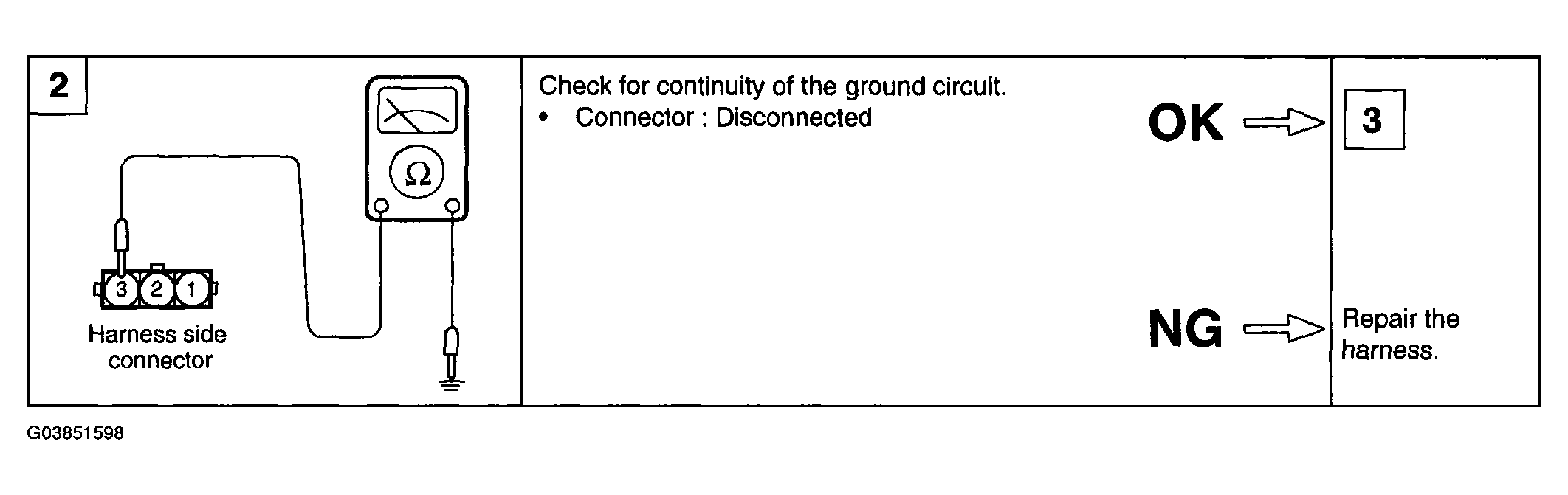

Fig 2: Camshaft Position Sensor Harness Inspection Procedures Chart (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

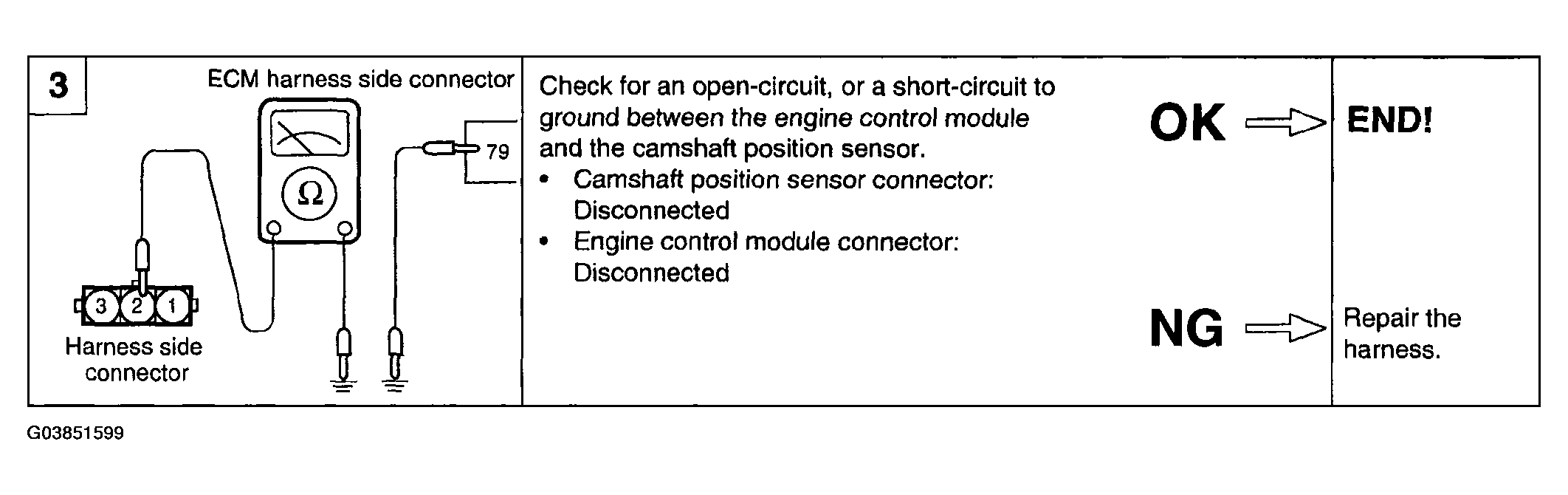

Fig 3: Camshaft Position Sensor Harness Inspection Procedures Chart (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
