Engine Control Module (ECM) Control Relay
›
Harness Inspection Procedures
Harness Inspection Procedures

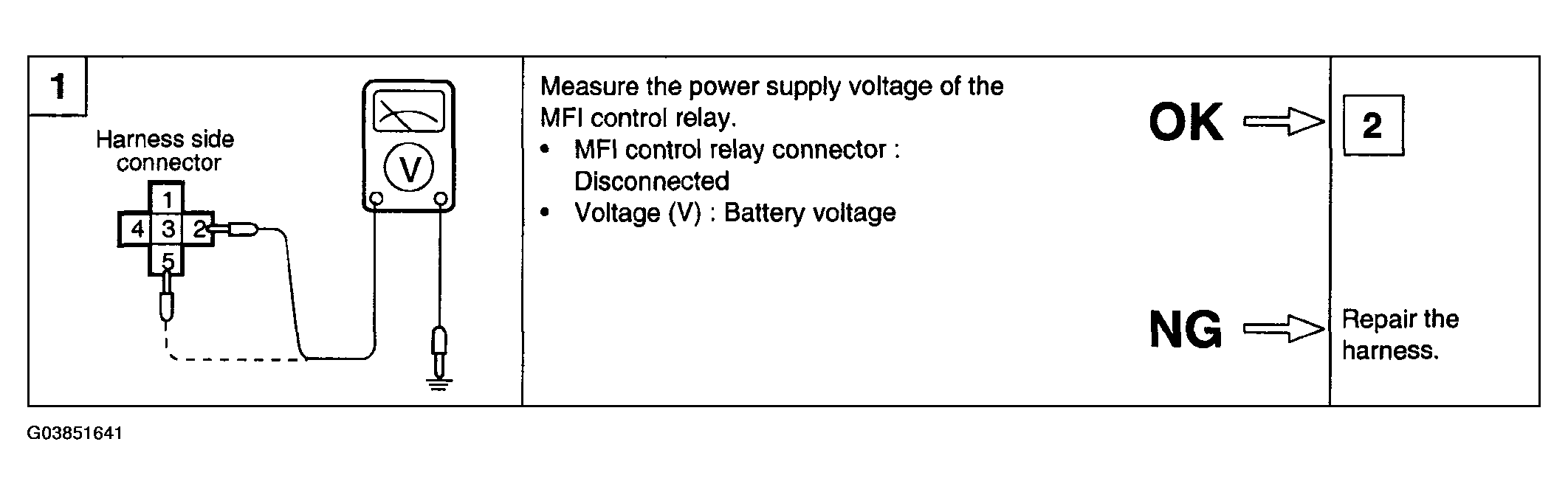

Fig 1: Engine Control Module (ECM) Control Relay Harness Inspection Procedures Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

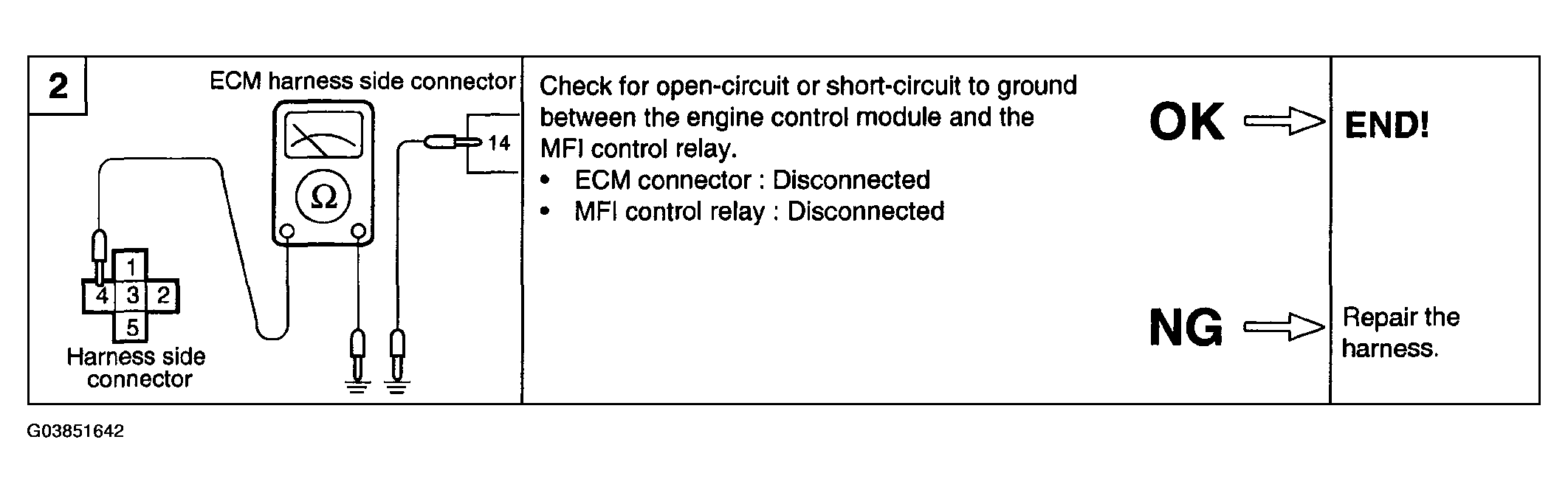

Fig 2: Engine Control Module (ECM) Control Relay Harness Inspection Procedures Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
