Engine Coolant Temperature Sensor (ECTS)
›
Harness Inspection Procedures
Harness Inspection Procedures

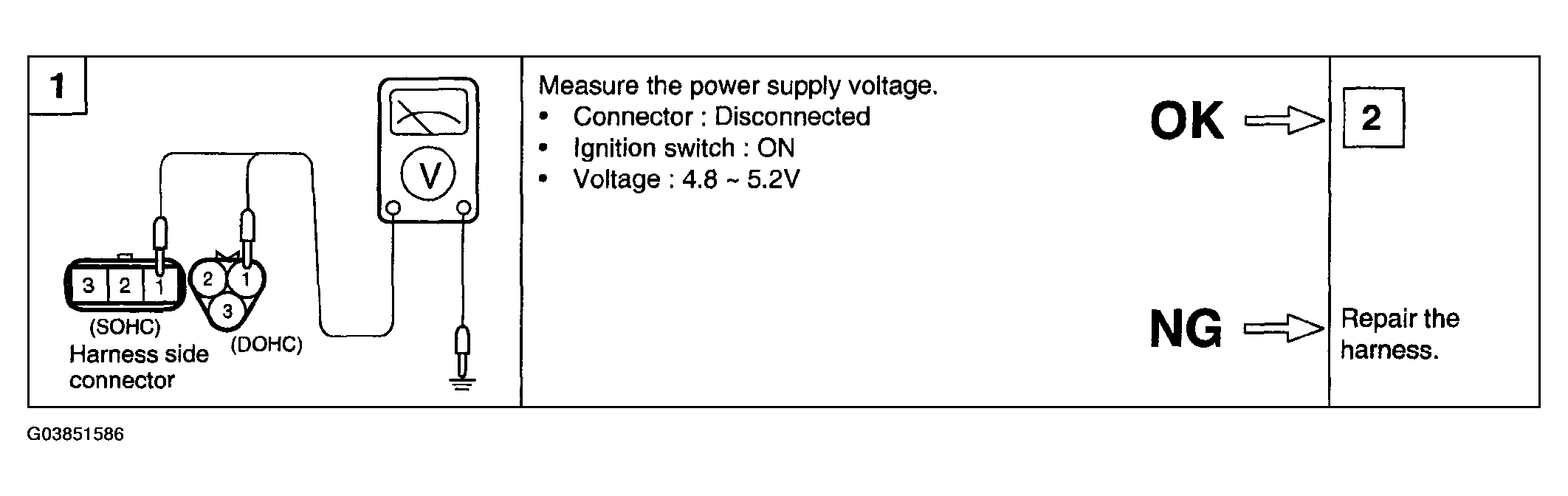

Fig 1: Engine Coolant Temperature Sensor Harness Inspection Procedures Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

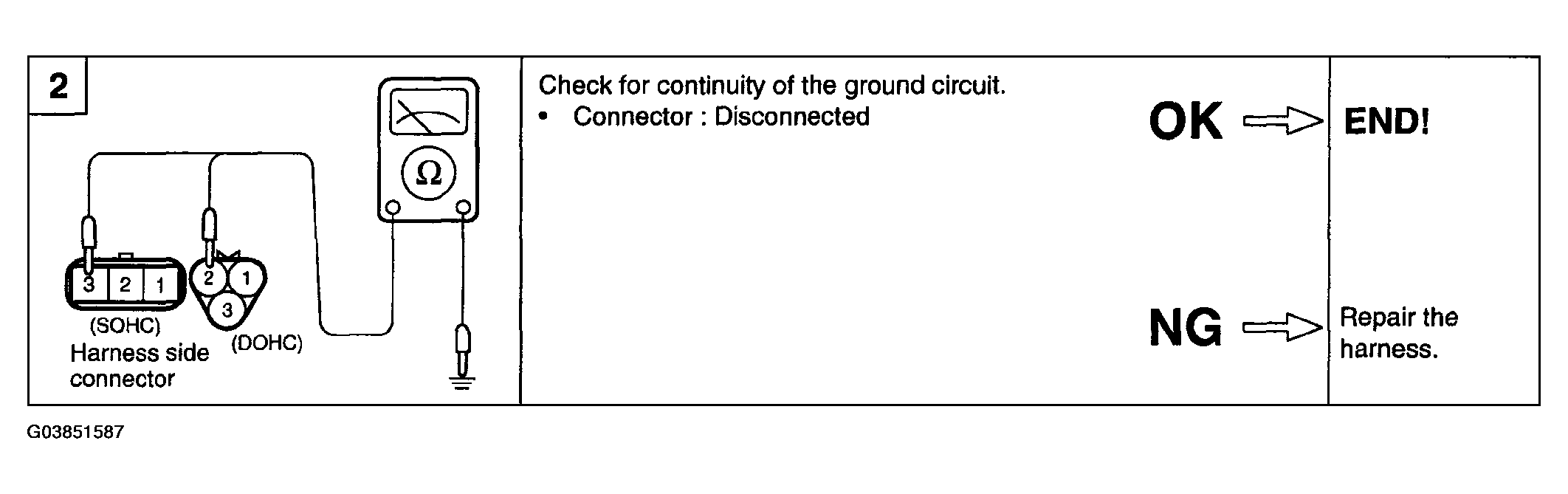

Fig 2: Engine Coolant Temperature Sensor Harness Inspection Procedures Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
