Gasoline Engine Control System
›
Fuel Pump
›
Harness Inspection Procedures
Harness Inspection Procedures

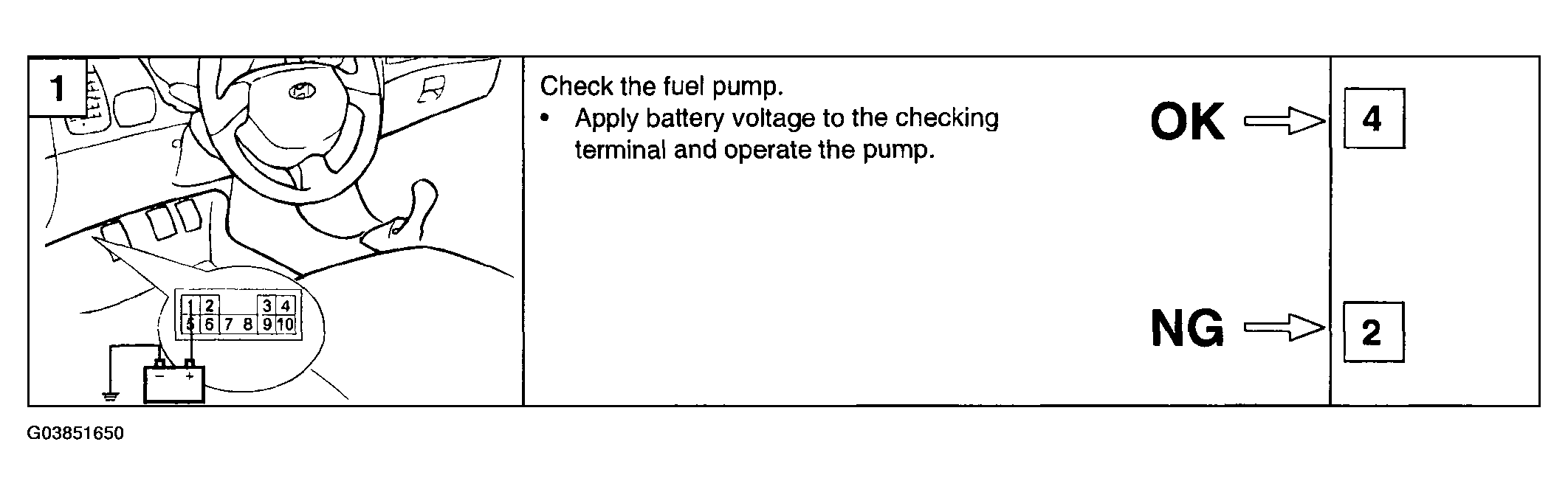

Fig 1: Fuel Pump Harness Inspection Procedures Chart (1 Of 6)
Courtesy of HYUNDAI MOTOR CO.

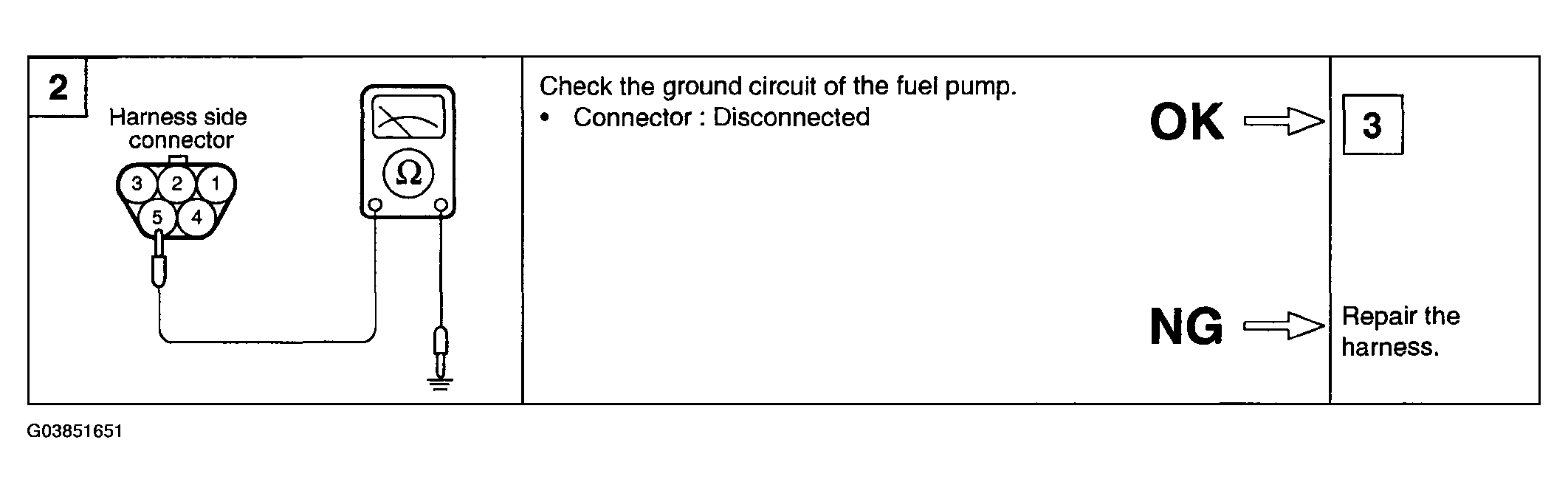

Fig 2: Fuel Pump Harness Inspection Procedures Chart (2 Of 6)
Courtesy of HYUNDAI MOTOR CO.

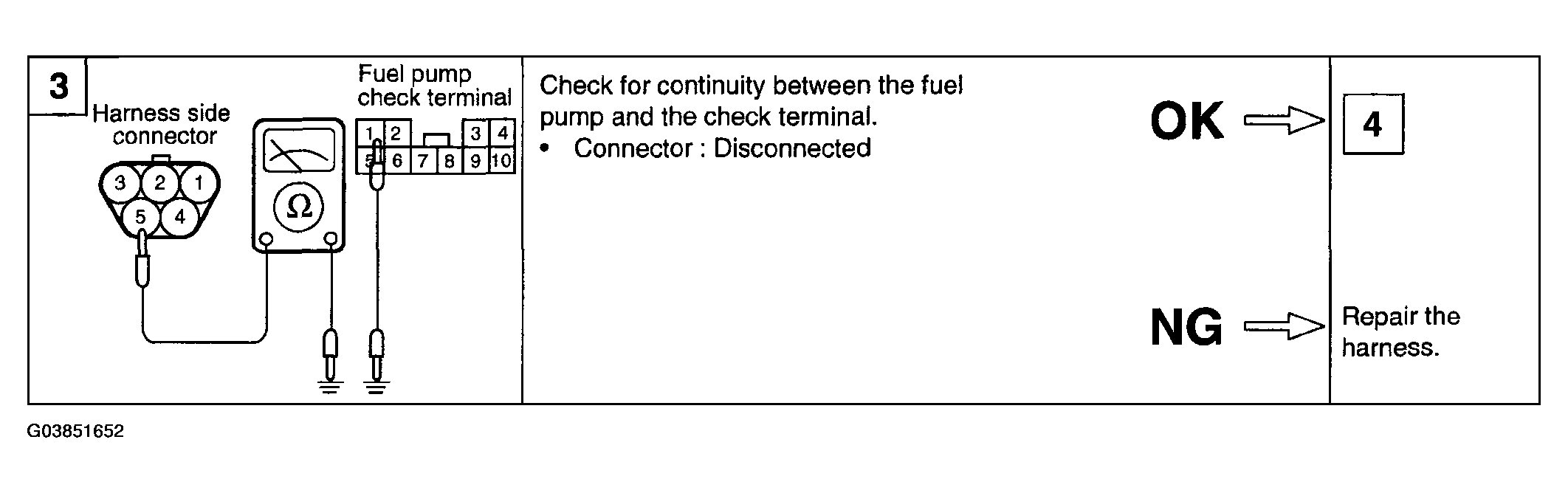

Fig 3: Fuel Pump Harness Inspection Procedures Chart (3 Of 6)
Courtesy of HYUNDAI MOTOR CO.

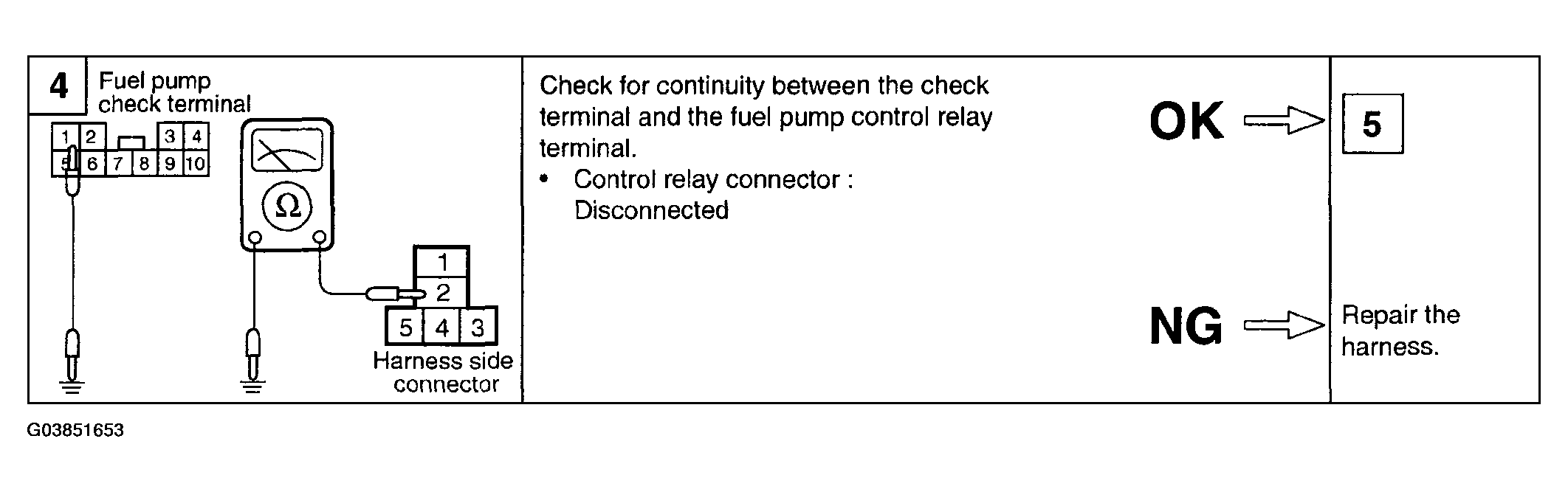

Fig 4: Fuel Pump Harness Inspection Procedures Chart (4 Of 6)
Courtesy of HYUNDAI MOTOR CO.

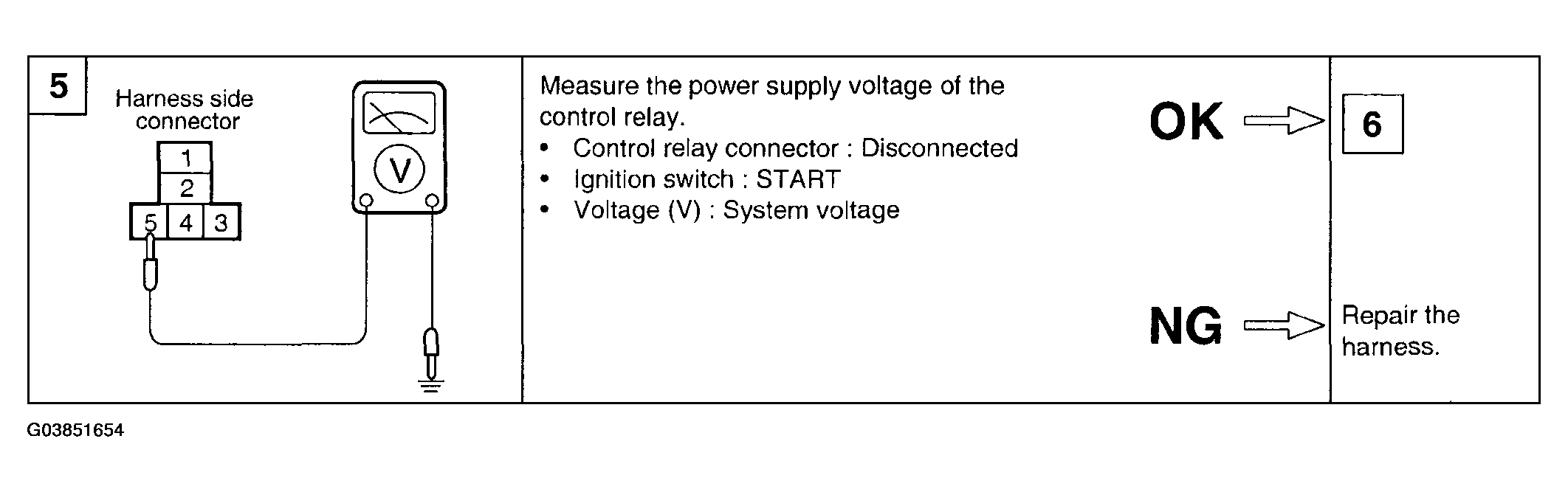

Fig 5: Fuel Pump Harness Inspection Procedures Chart (5 Of 6)
Courtesy of HYUNDAI MOTOR CO.

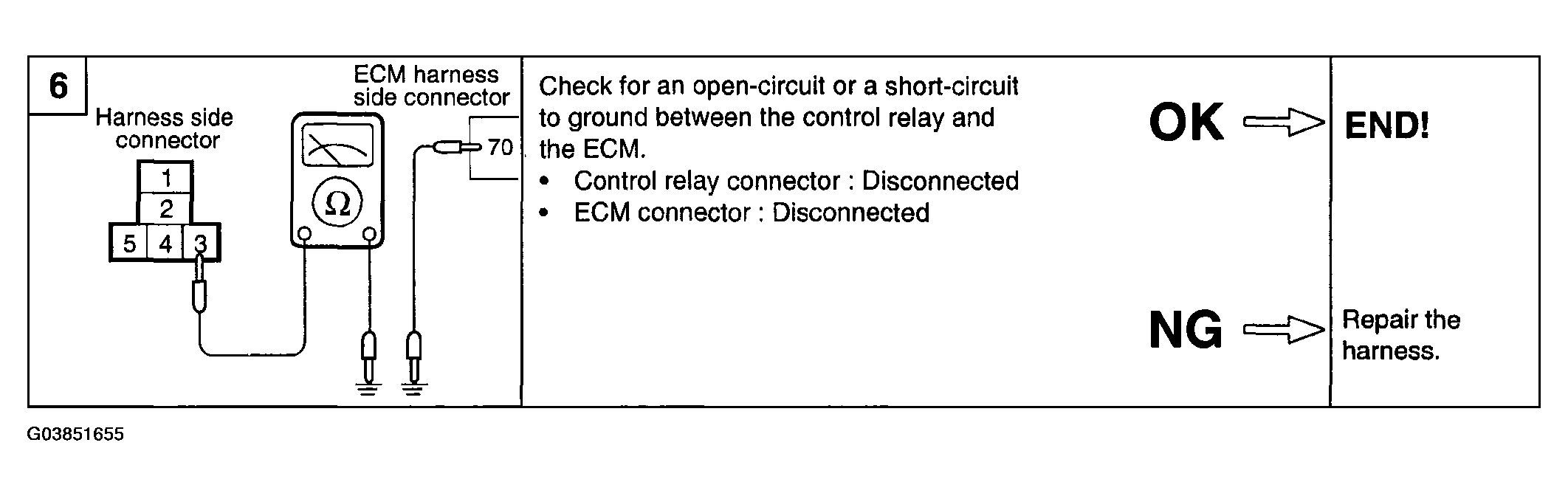

Fig 6: Fuel Pump Harness Inspection Procedures Chart (6 Of 6)
Courtesy of HYUNDAI MOTOR CO.
