Heated Oxygen Sensor (Ho2S)
›
Harness Inspection Procedures
Harness Inspection Procedures

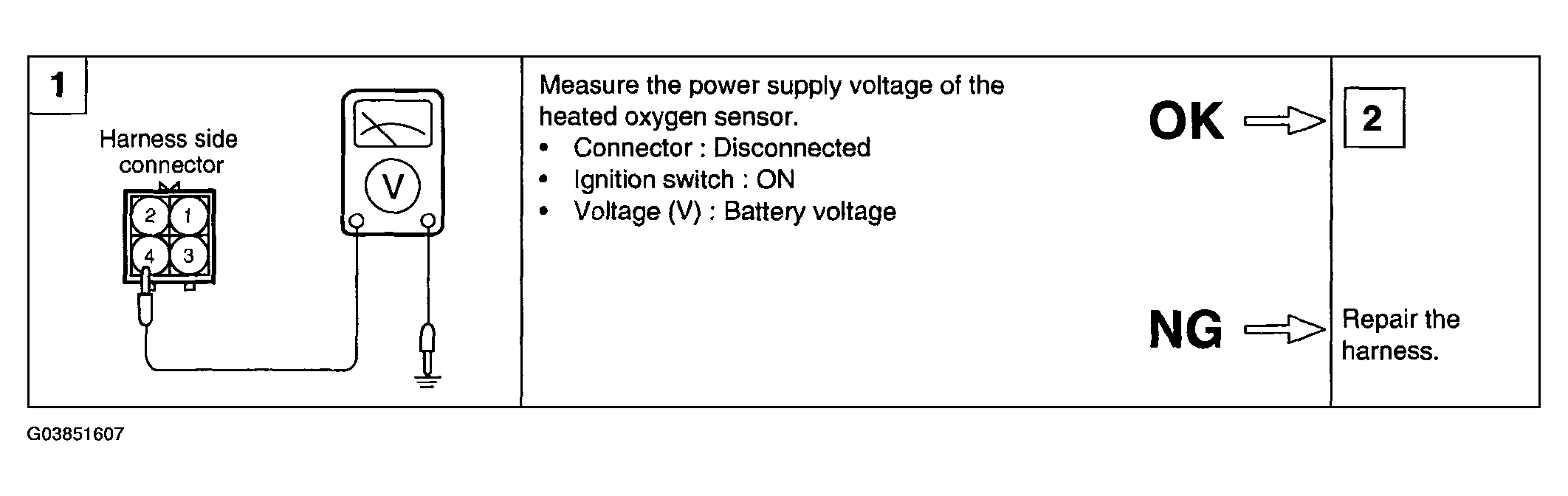

Fig 1: Heated Oxygen Sensor (HO2S) Harness Inspection Procedures Chart (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

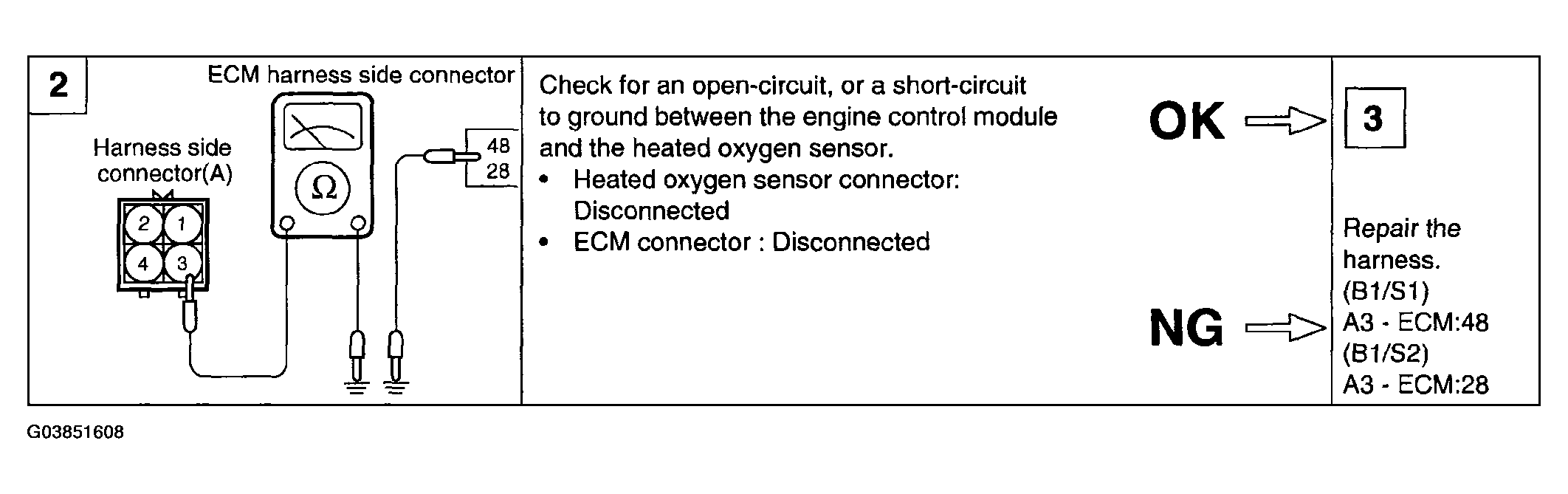

Fig 2: Heated Oxygen Sensor (HO2S) Harness Inspection Procedures Chart (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

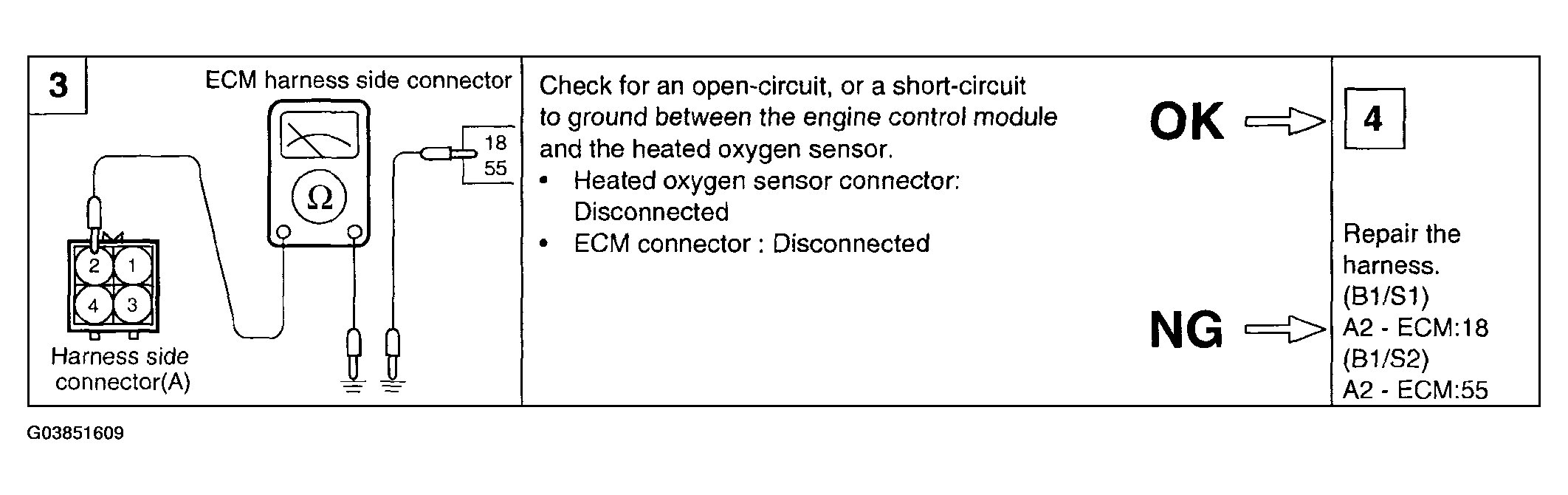

Fig 3: Heated Oxygen Sensor (HO2S) Harness Inspection Procedures Chart (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

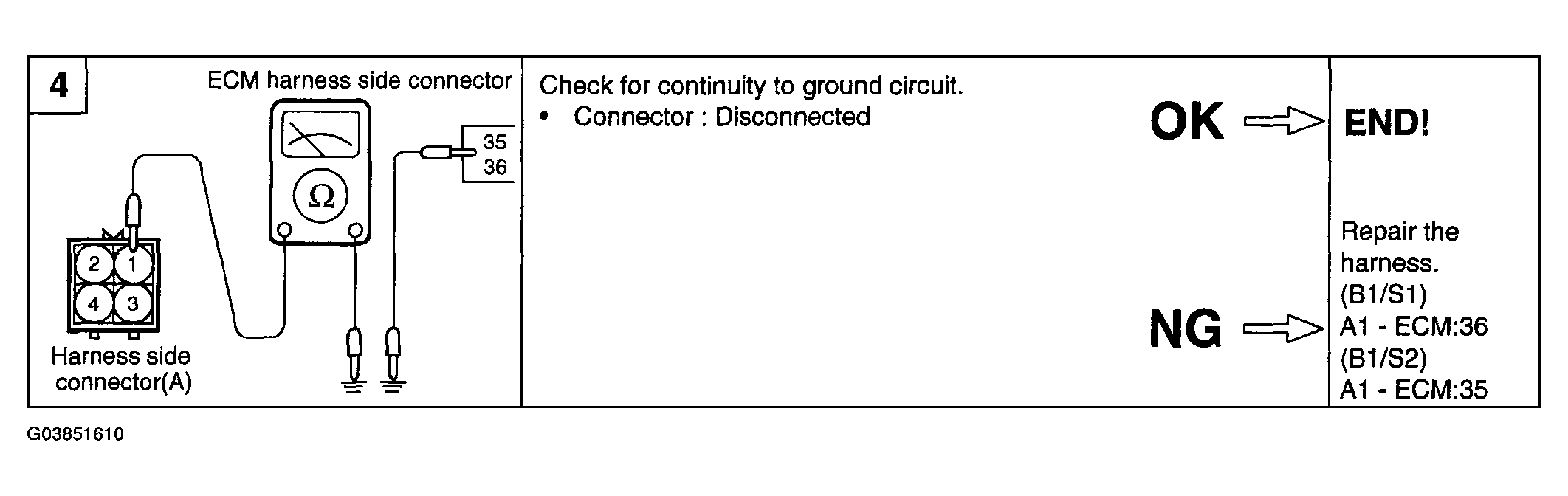

Fig 4: Heated Oxygen Sensor (HO2S) Harness Inspection Procedures Chart (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
