Resistance Measurement Between Terminals

Disconnect the connector of the injector and measure the resistance between the two terminals.

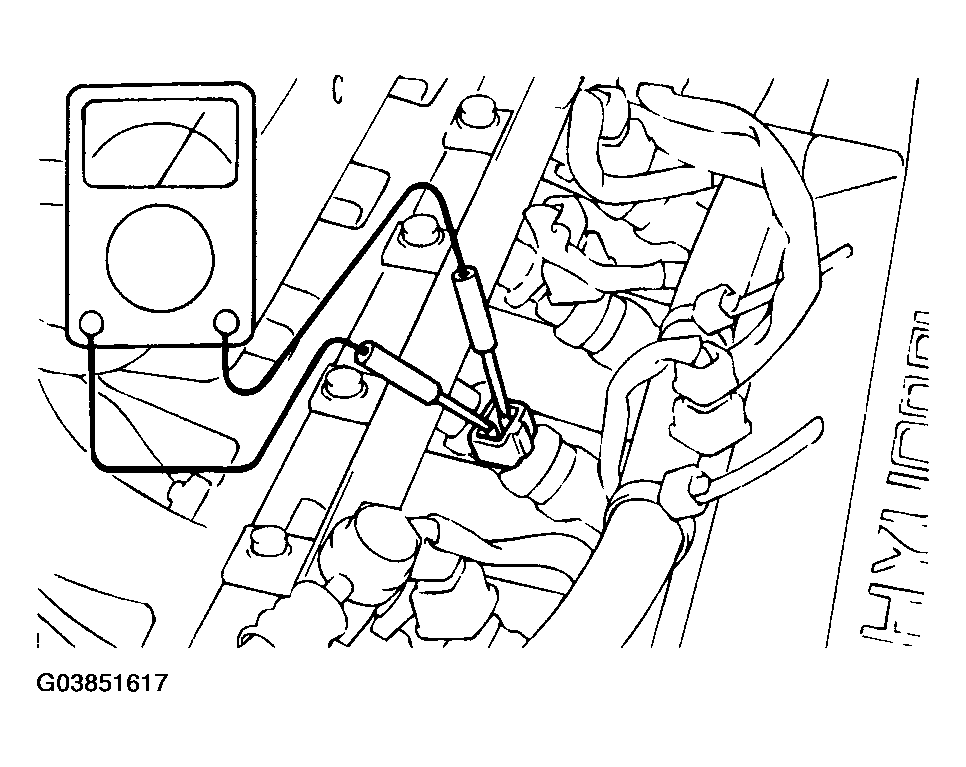

Fig 1: Measuring Resistance Between Injector Terminals
Courtesy of HYUNDAI MOTOR CO.

Standard value : 15.9 +/- 0.35Ω [at 20°C (68°F)]
Reconnect the connector to the injector.
