Harness Inspection Procedures

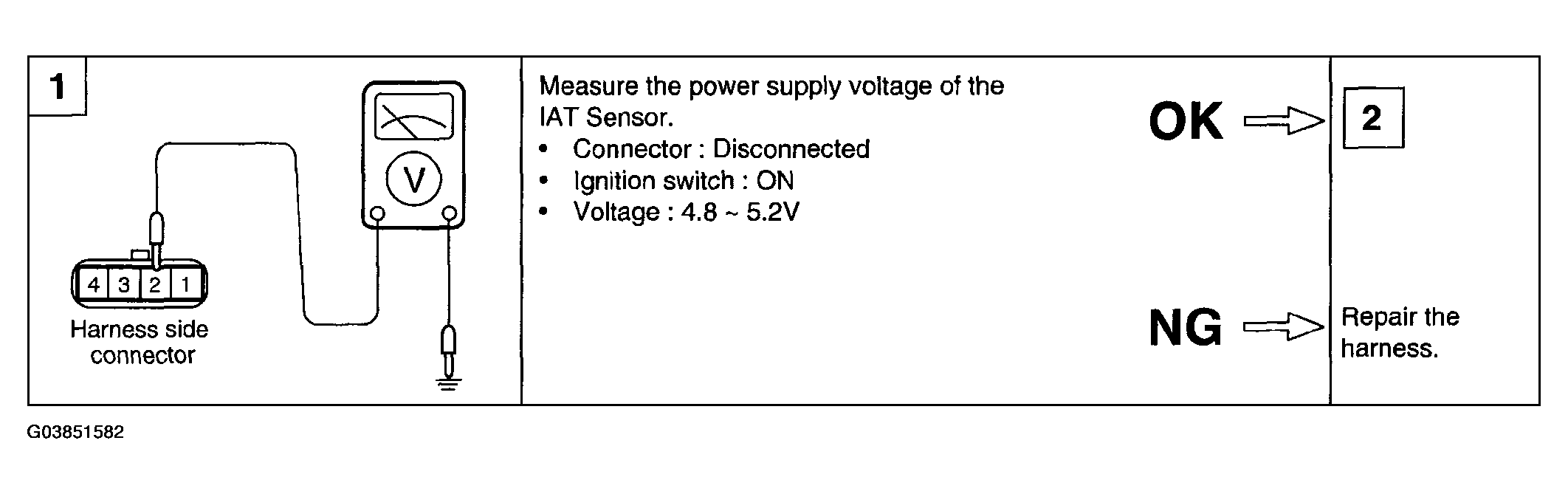

Fig 1: Intake Air Temperature Sensor Harness Inspection Procedures Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

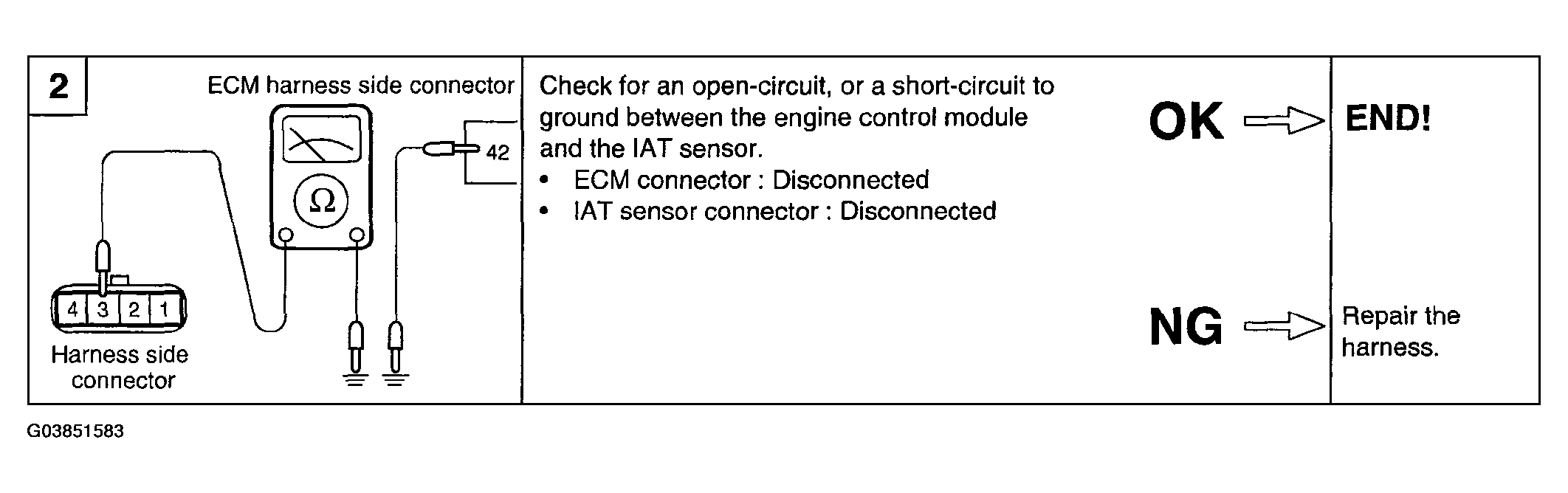

Fig 2: Intake Air Temperature Sensor Harness Inspection Procedures Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
