Purge Control Solenoid Valve (PCSV)
›
Harness Inspection Procedures
Harness Inspection Procedures

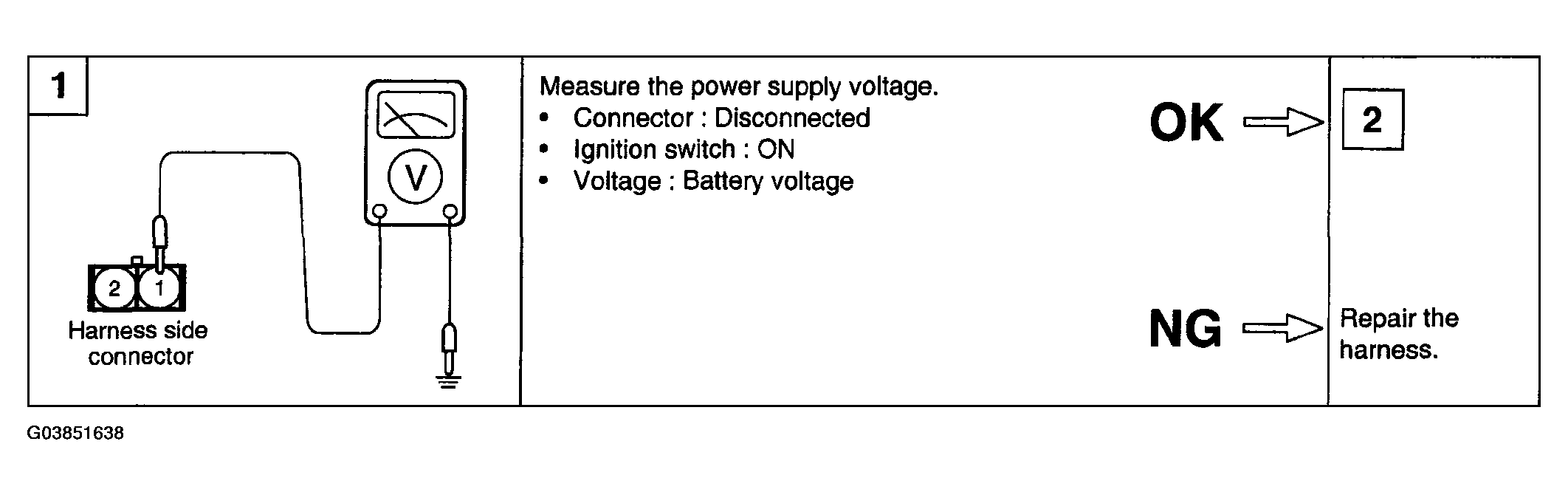

Fig 1: Purge Control Solenoid Valve Harness Inspection Procedures Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

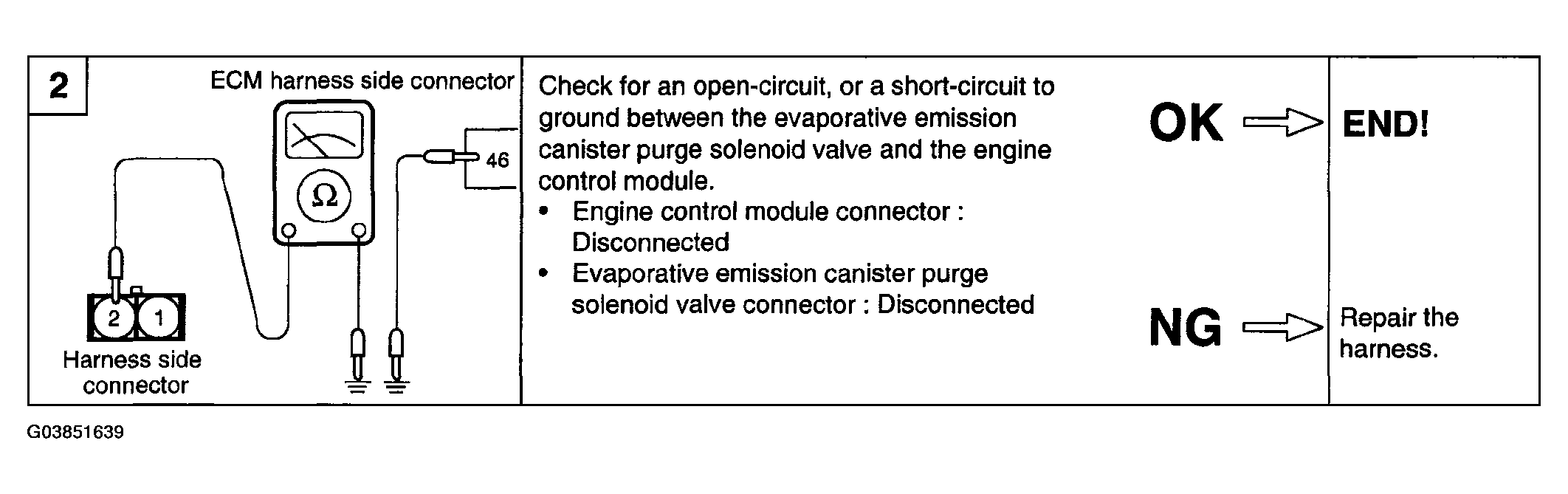

Fig 2: Purge Control Solenoid Valve Harness Inspection Procedures Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
