Harness Inspection Procedures

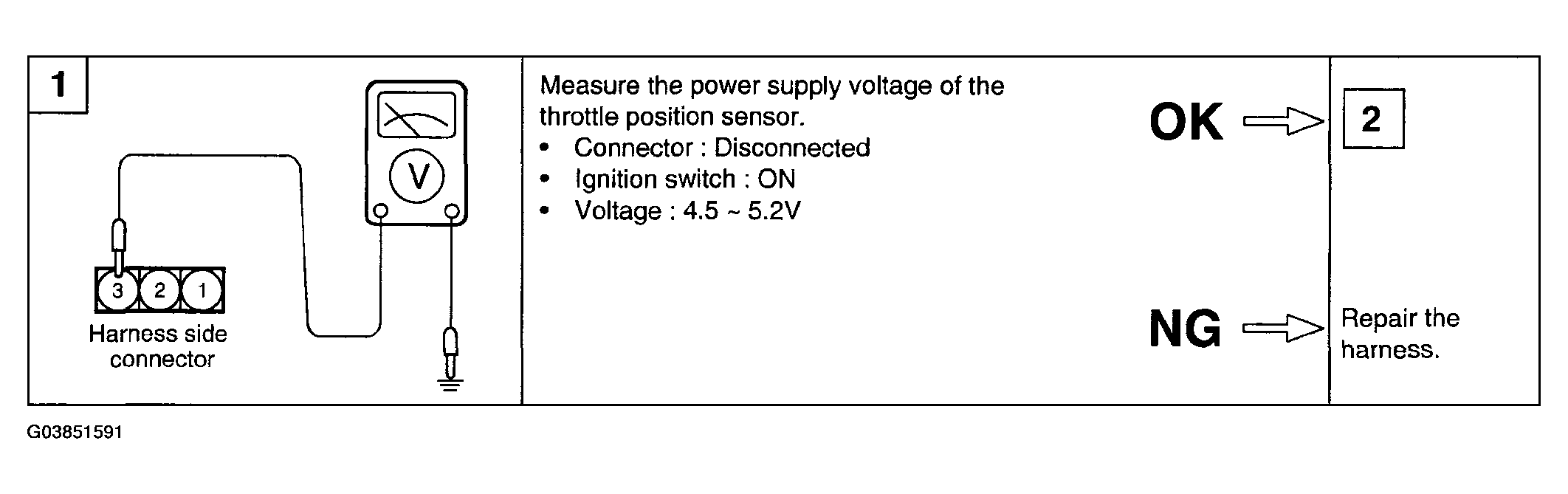

Fig 1: Throttle Position Sensor (TPS) Harness Inspection Procedures Chart (1 Of 3)
G03851591Courtesy of HYUNDAI MOTOR CO.

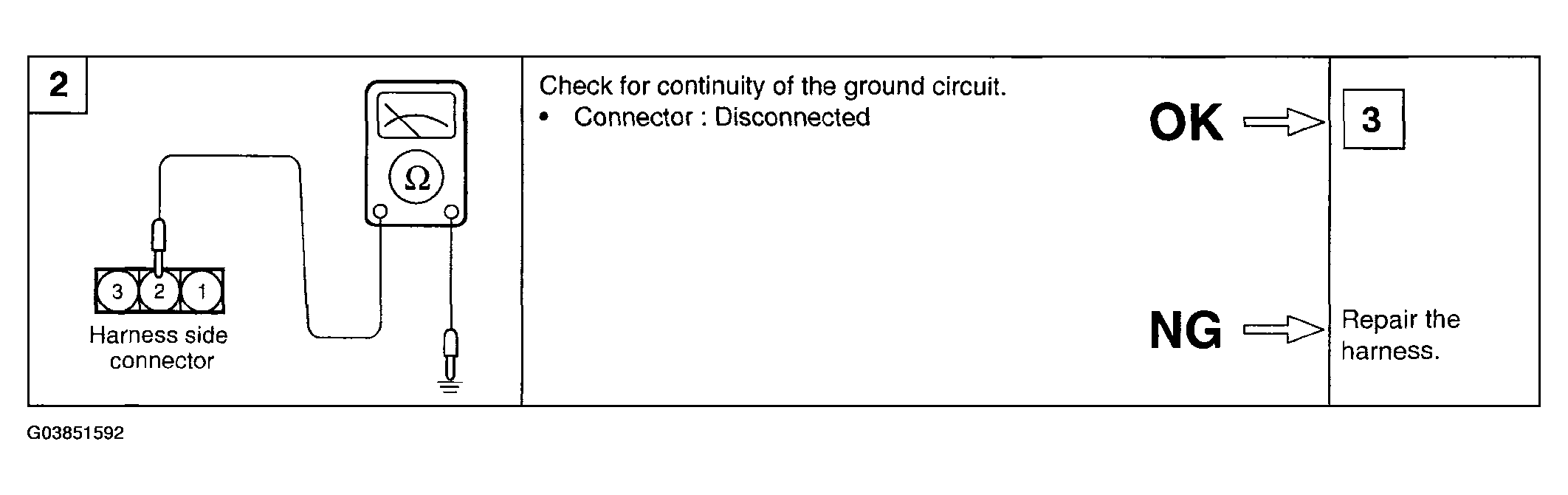

Fig 2: Throttle Position Sensor (TPS) Harness Inspection Procedures Chart (2 Of 3)
G03851592Courtesy of HYUNDAI MOTOR CO.

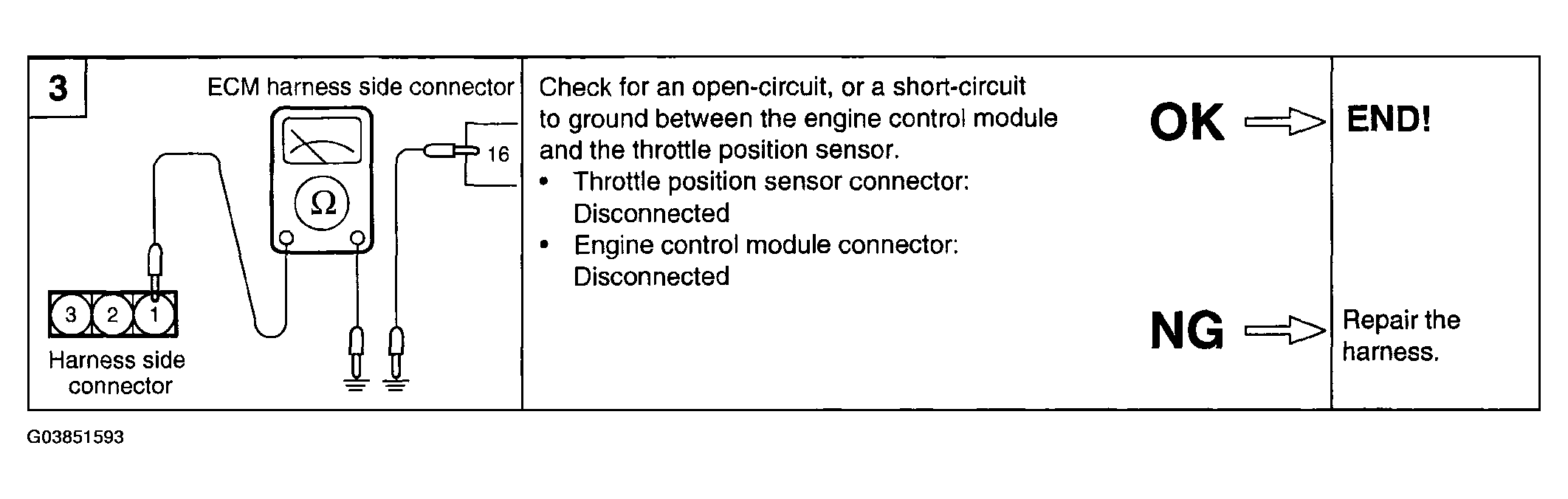

Fig 3: Throttle Position Sensor (TPS) Harness Inspection Procedures Chart (3 Of 3)
G03851593Courtesy of HYUNDAI MOTOR CO.
