Positive Crankcase Ventilation (PCV) Valve: Operation

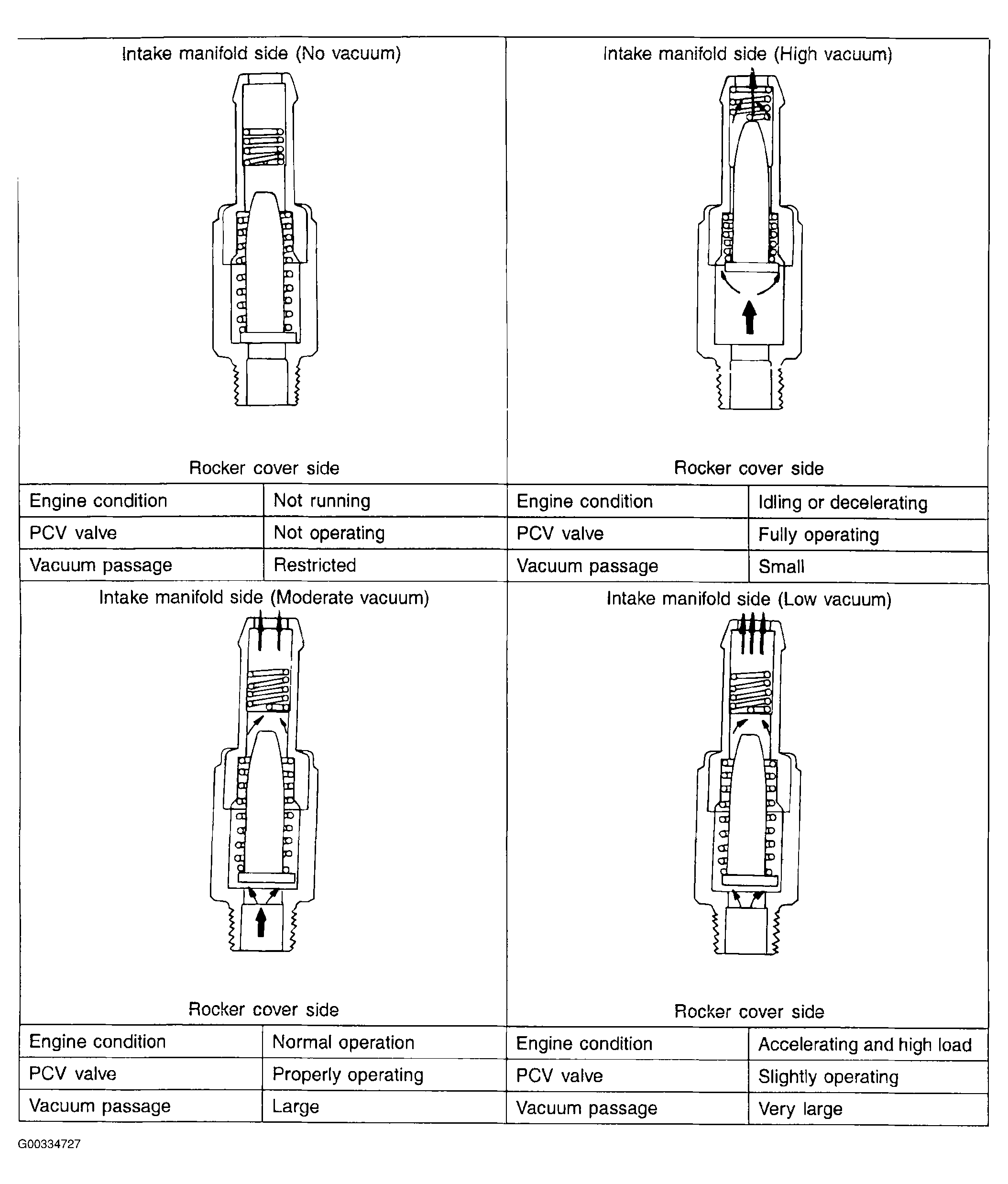

Fig 1: PCV Valve Operation
G00334727Courtesy of HYUNDAI MOTOR CO.
