Engine Control System Diagnosis (1 Of 2)
›
DTC Troubleshooting Procedures
›
DTC P0130: O2 Sensor Circuit (Bank1/Sens0R1)
›
Schematic Diagram
Schematic Diagram

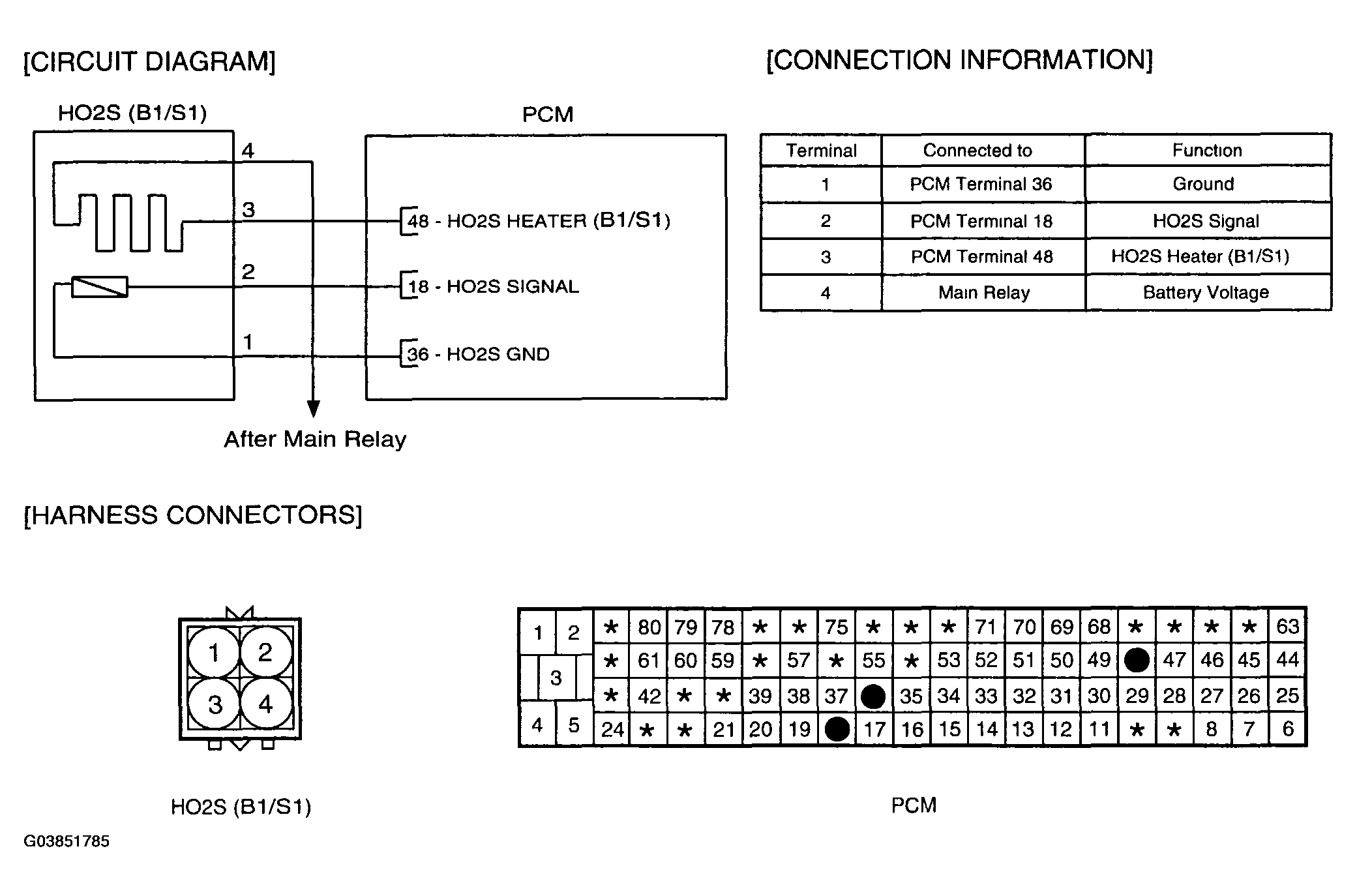

Fig 1: Schematic Diagram - DTC P0130 O2 Sensor Circuit (Bank1/Sensor1)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
