Strut Assembly: Disassembly

WARNING: This page is about a different car, the 2003 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

Remove the insulator dust cover with a flat-tip screw driver.
Using the Special Tool (J38402), compress the coil spring until there is only a little tension on the strut.
NOTE: Do not use an impact gun.

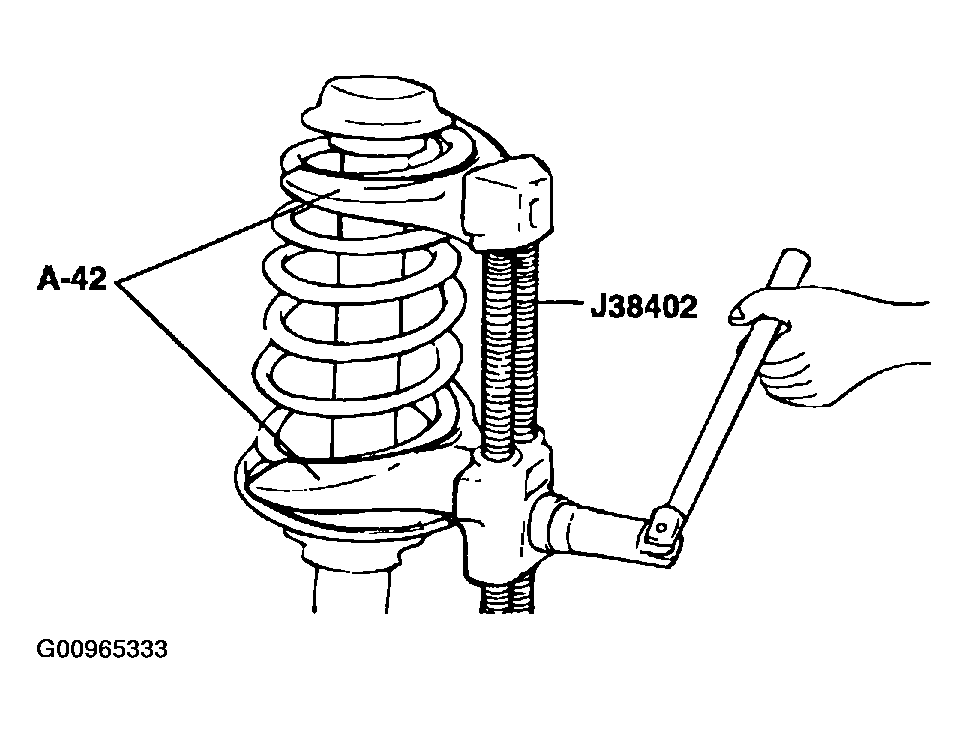

Fig 1: Compressing Coil Spring
Courtesy of HYUNDAI MOTOR CO.
Remove the lock-nut at the top end of the shock absorber.
Remove the strut insulator, spring seat assembly, coil spring and strut dust cover.
