Section 1 (Automatic Transaxle System)
›
Inspection Chart For Trouble Symptoms
›
Inspection Procedure 5
Inspection Procedure 5
WARNING:
This page is about a different variant/trim than selected.

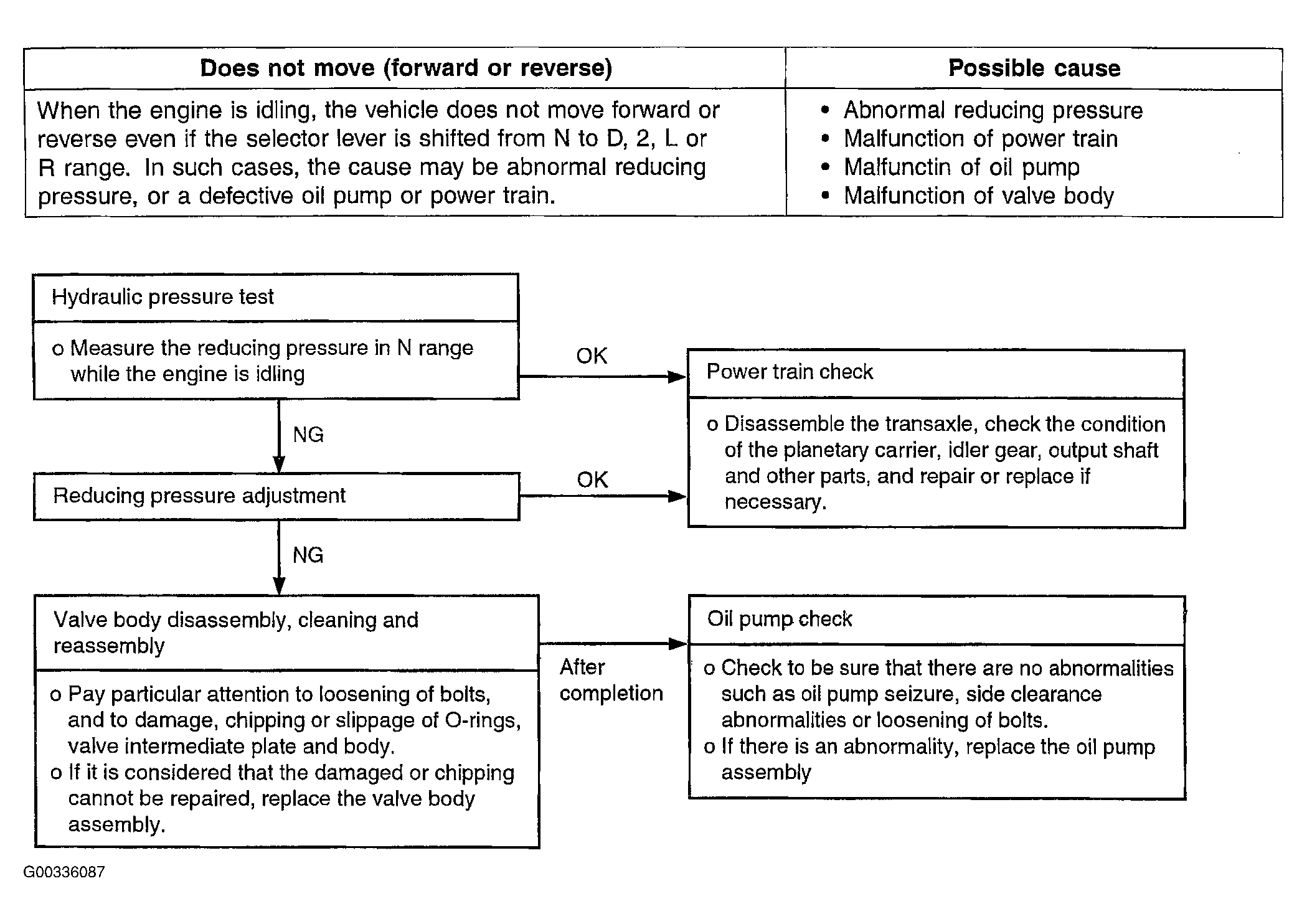

Fig 1: Inspection Procedure 5 Flow Chart
Courtesy of HYUNDAI MOTOR CO.
