Manual Steering Gear Box: Components

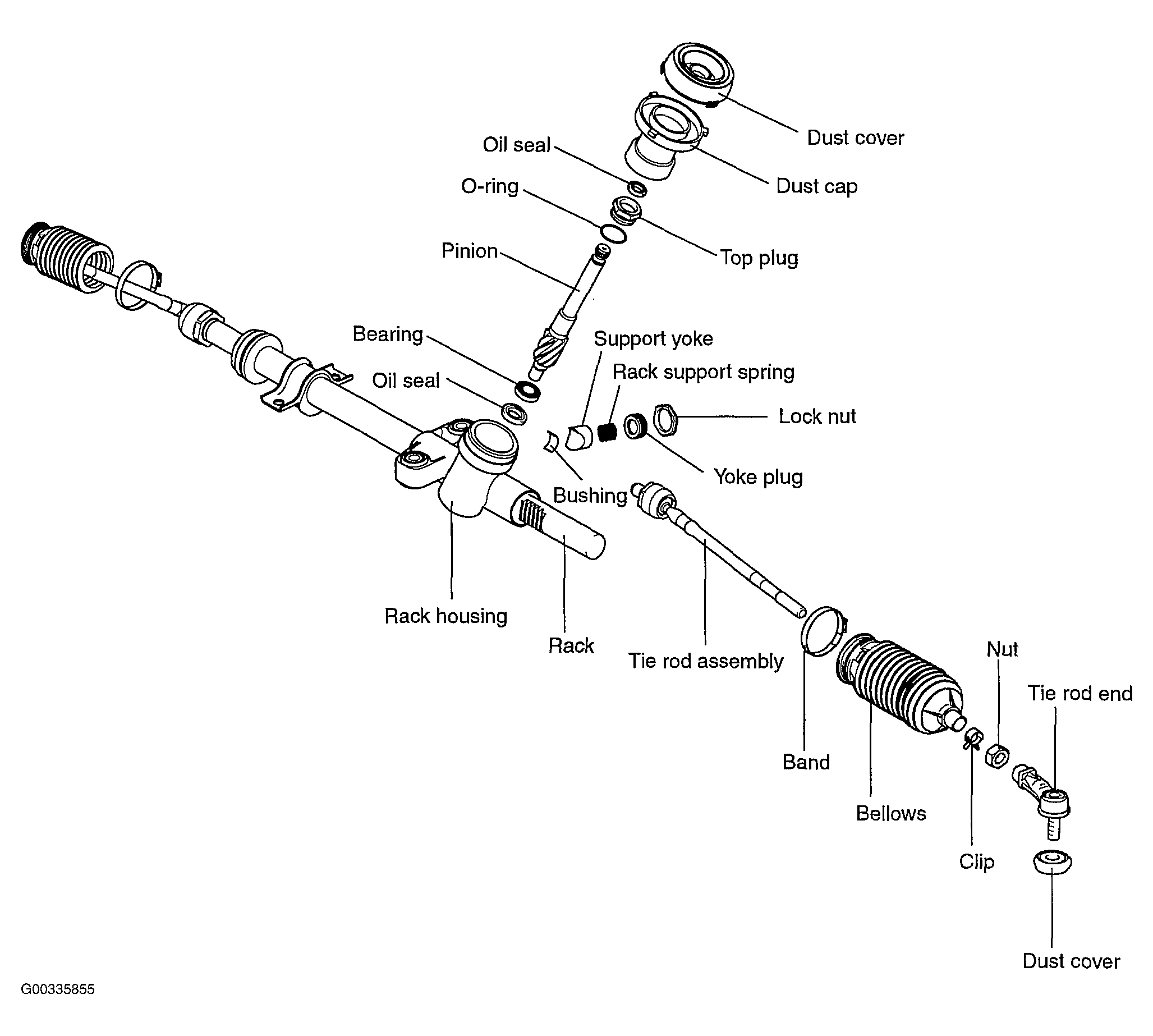

Fig 1: Identifying Manual Steering Gear Box Components (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

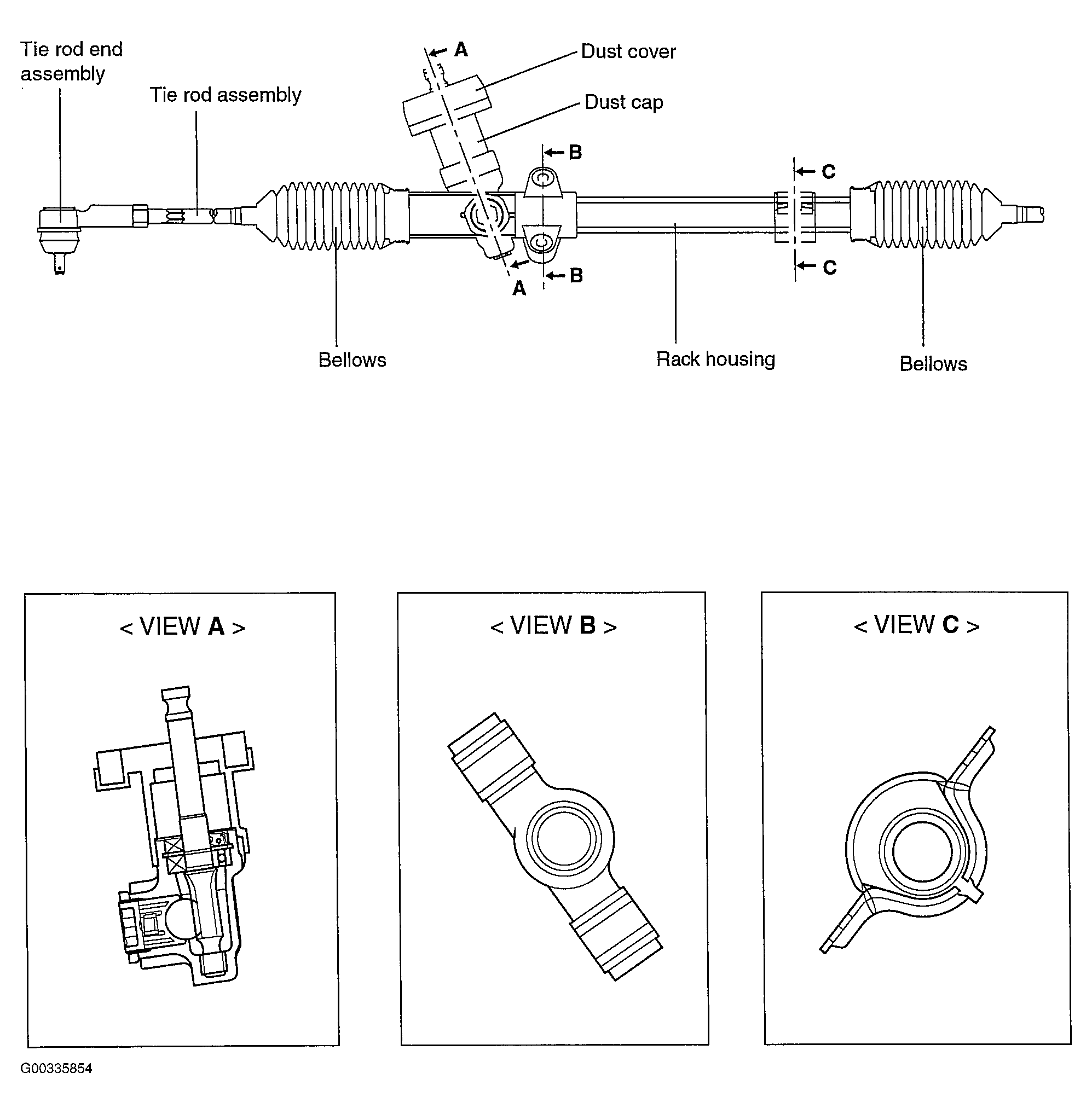

Fig 2: Identifying Manual Steering Gear Box Components (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
