Checking Power Steering Belt Tension

Press the V belt, applying a pressure of 98N (10kg, 22lb) at the specified point and measure the deflection to confirm that it is within the standard value.
Standard value

V belt deflection : 7~10 mm

Fig 1: Measuring Deflection To Confirm That It Is Within Standard Value
Courtesy of HYUNDAI MOTOR CO.
If the belt deflection is beyond the standard value, adjust the belt tension as follows.
1. Loosen the bolt adjusting the power steering "V" belt tension.

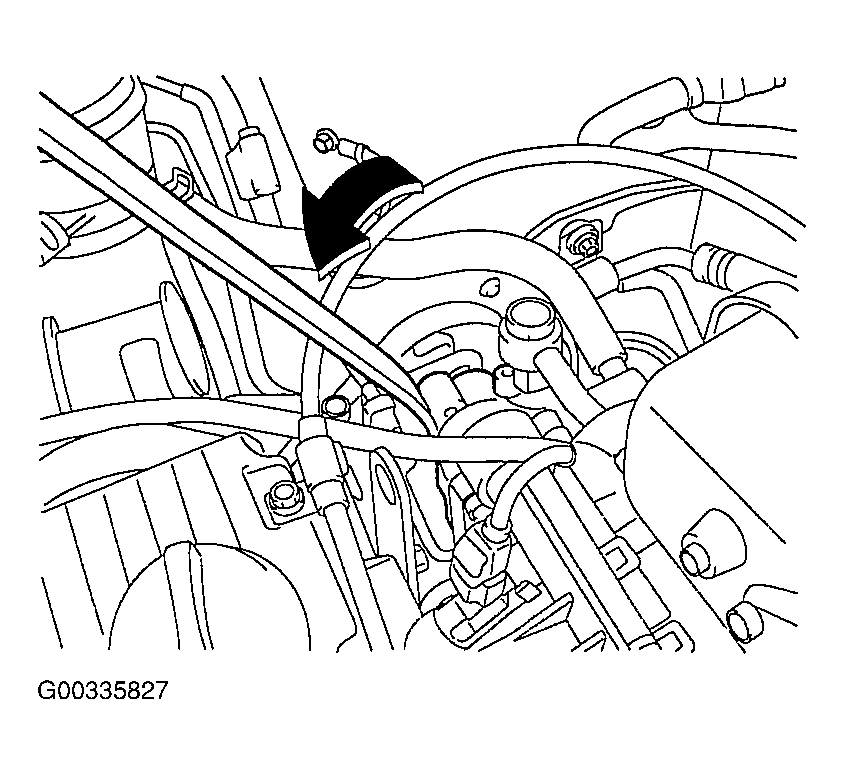

  Fig 2: Locating Power Steering "V" Belt Adjusting Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Put a bar or equivalent between the bracket and the oil pump and adjust the tension so that the belt deflection is within the standard value.

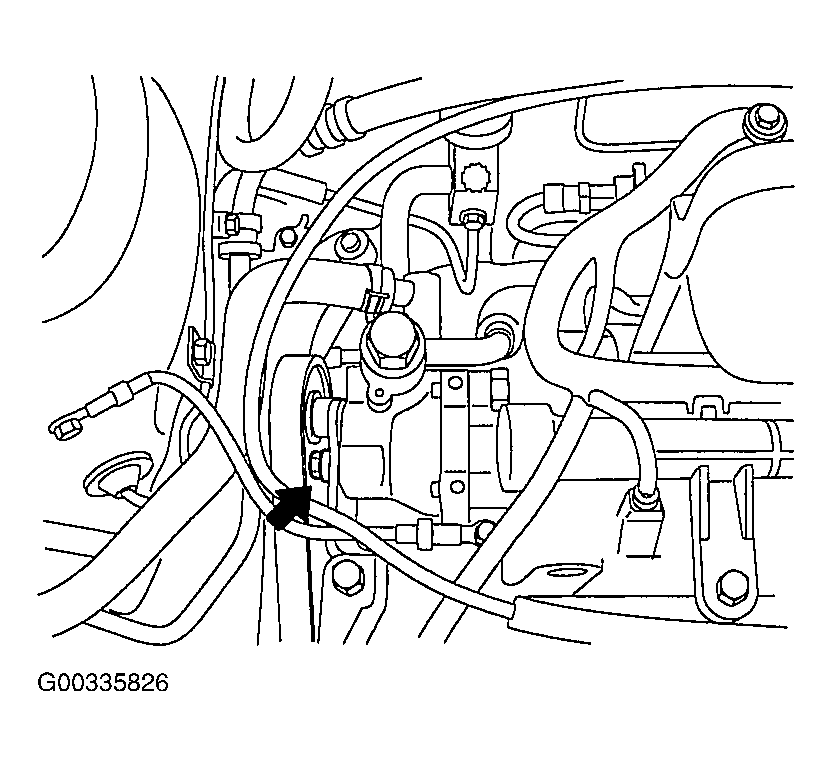

  Fig 3: Using Bar To Adjust Tension So Belt Deflection Is Within Standard Value
  Courtesy of HYUNDAI MOTOR CO.
3. Tighten the bolt adjusting the power steering "V" belt tension.
4. Check the belt deflection and adjust it again if necessary.

CAUTION: After turning the V belt in the normal rotation direction more than once, recheck the belt deflection.
