Front Hub/Knuckle: Components

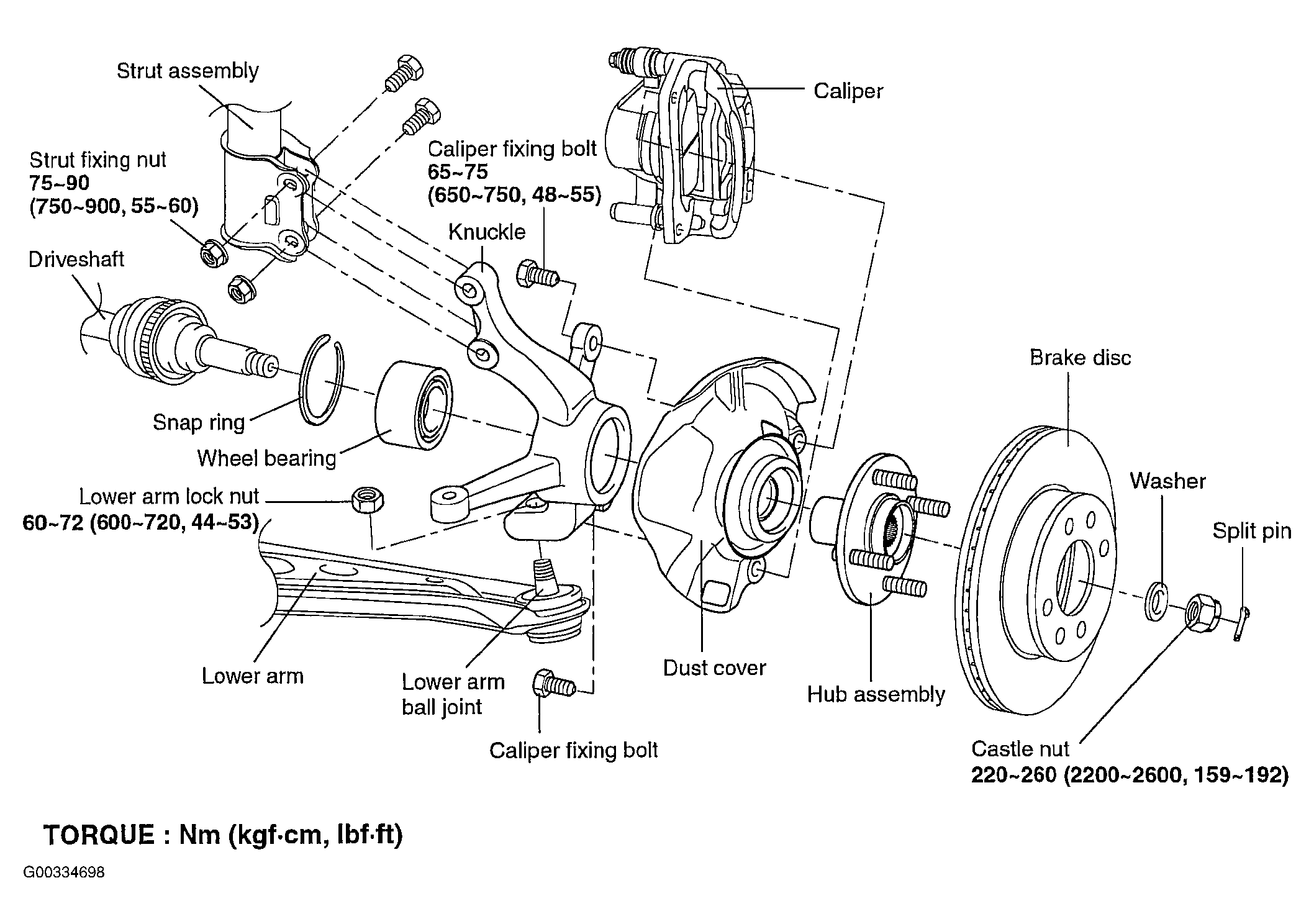

Fig 1: Identifying Front Hub/Knuckle Components
G00334698Courtesy of HYUNDAI MOTOR CO.
