Front Suspension System: Specifications: Notes

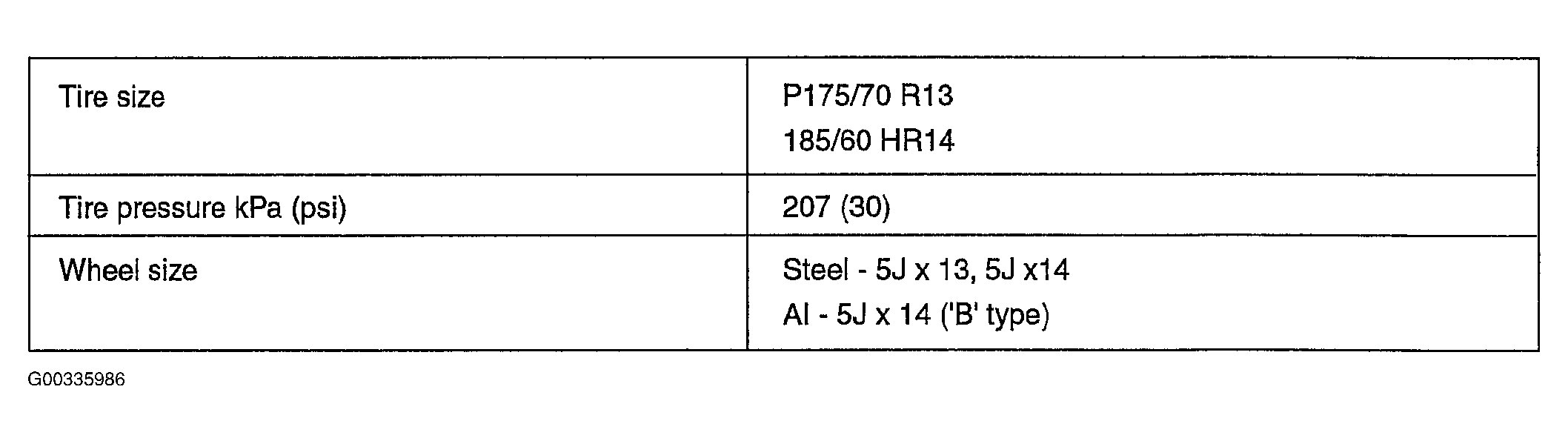

Fig 1: Front Suspension Specifications (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

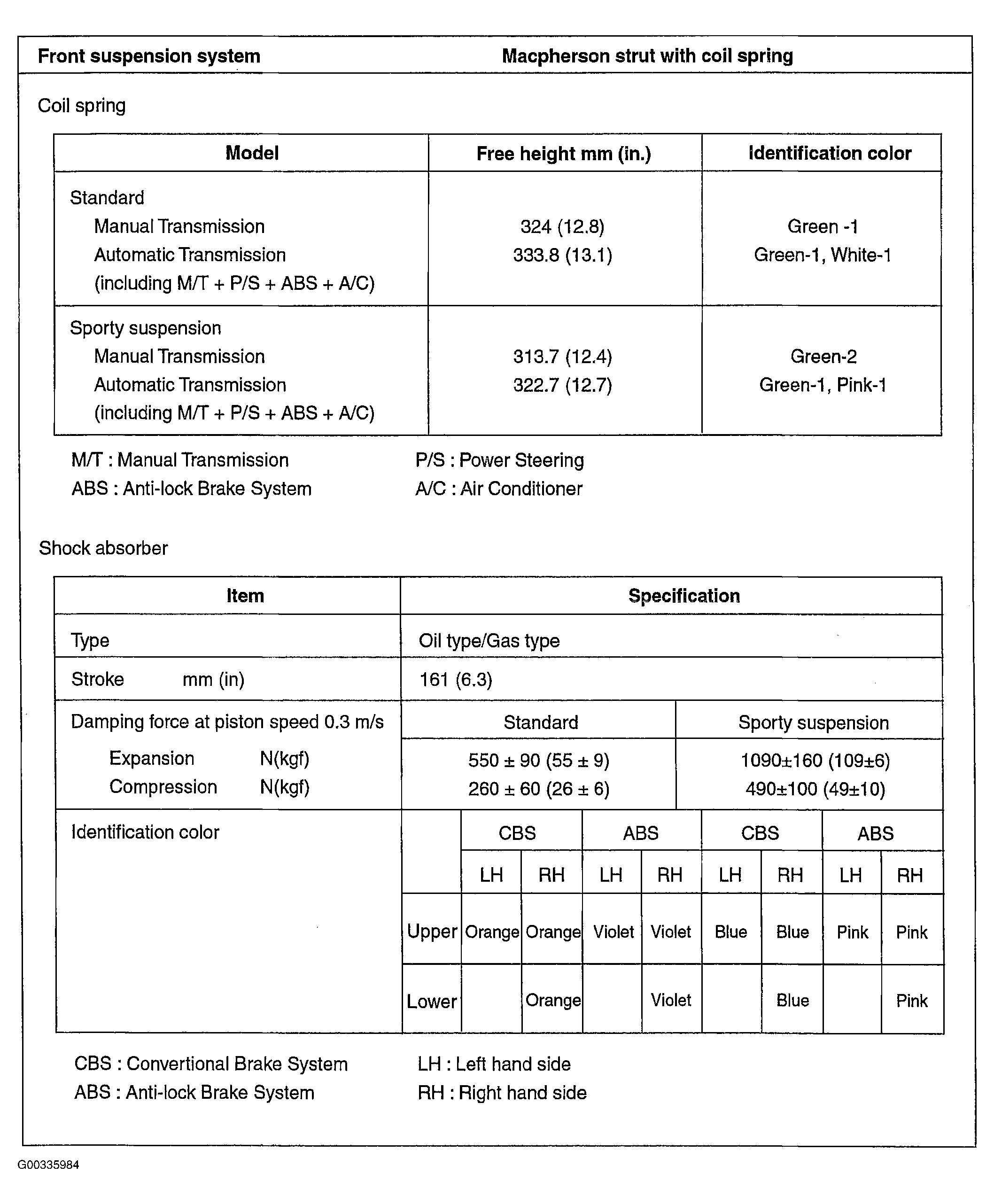

Fig 2: Front Suspension Specifications (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
