Automatic Transaxle (A4AF3): Removal

Remove the battery terminal and the battery.

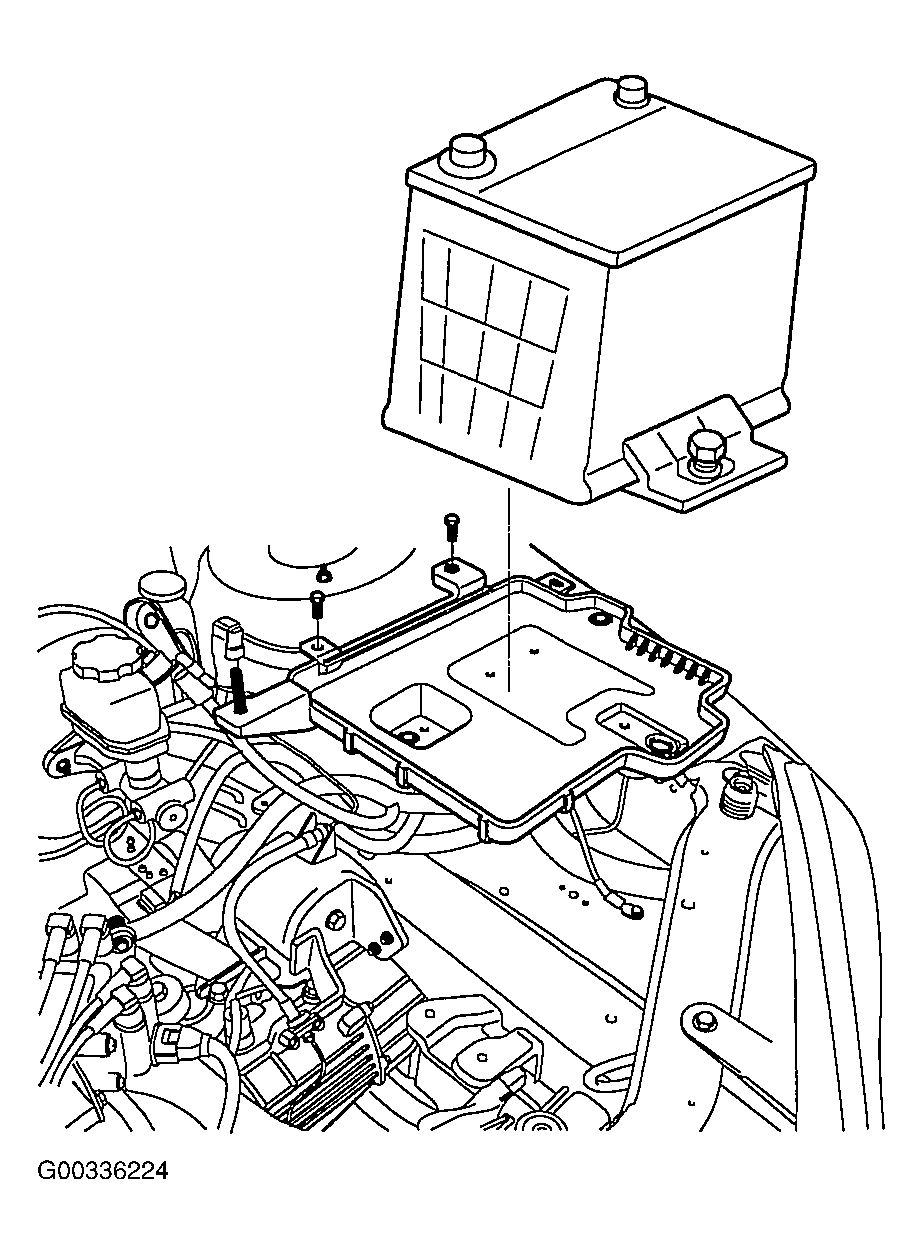

Fig 1: Removing Battery Terminal & Battery
Courtesy of HYUNDAI MOTOR CO.

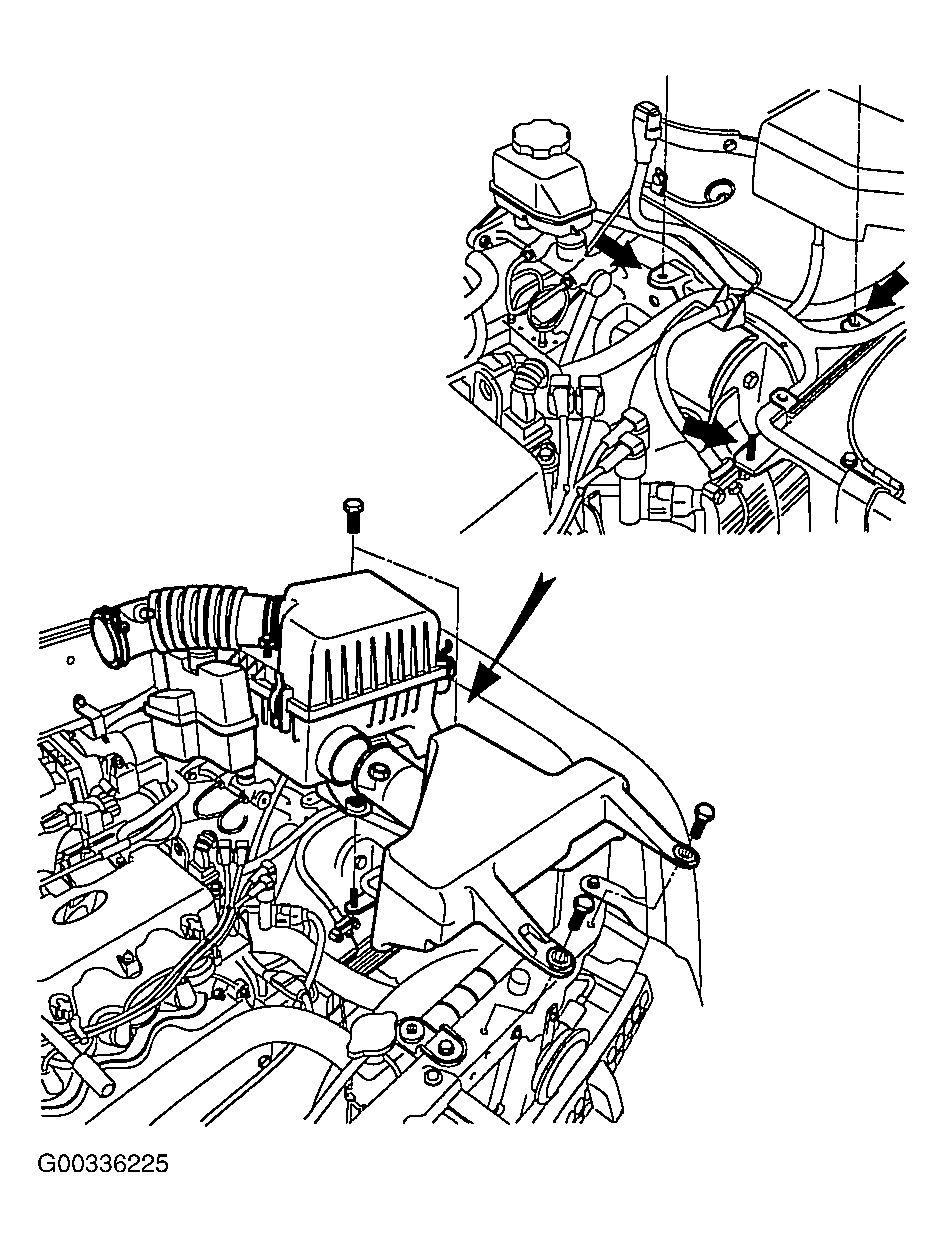

Removal the air cleaner.

Fig 2: Removing Air Cleaner
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle range switch connector.

Fig 3: Removing Transaxle Range Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the solenoid valve connector and the oil temperature sensor connector.

Fig 4: Removing Solenoid Valve Connector & Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR CO.

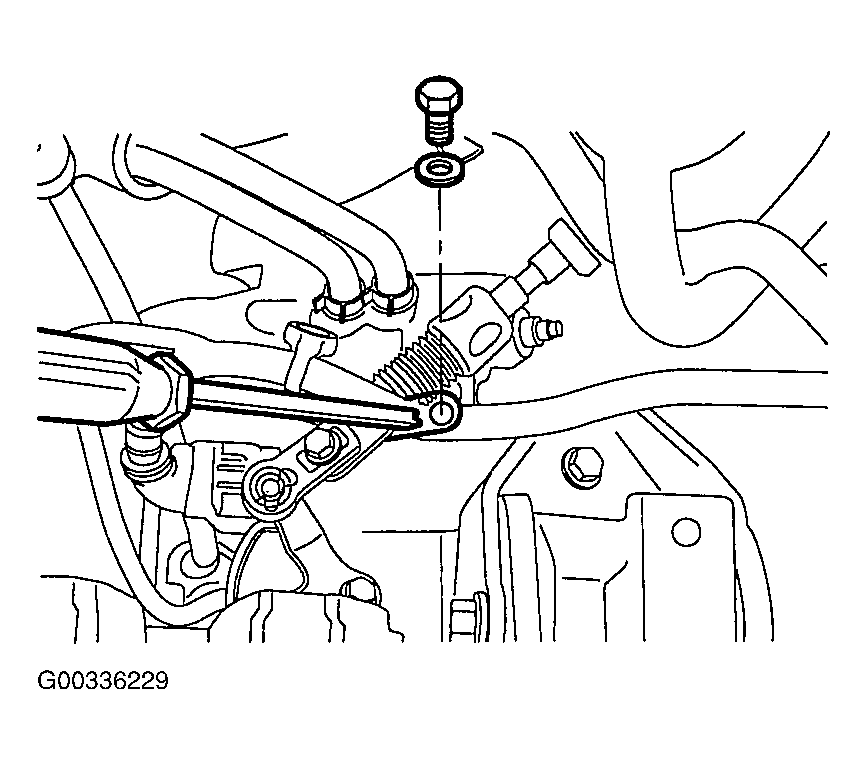

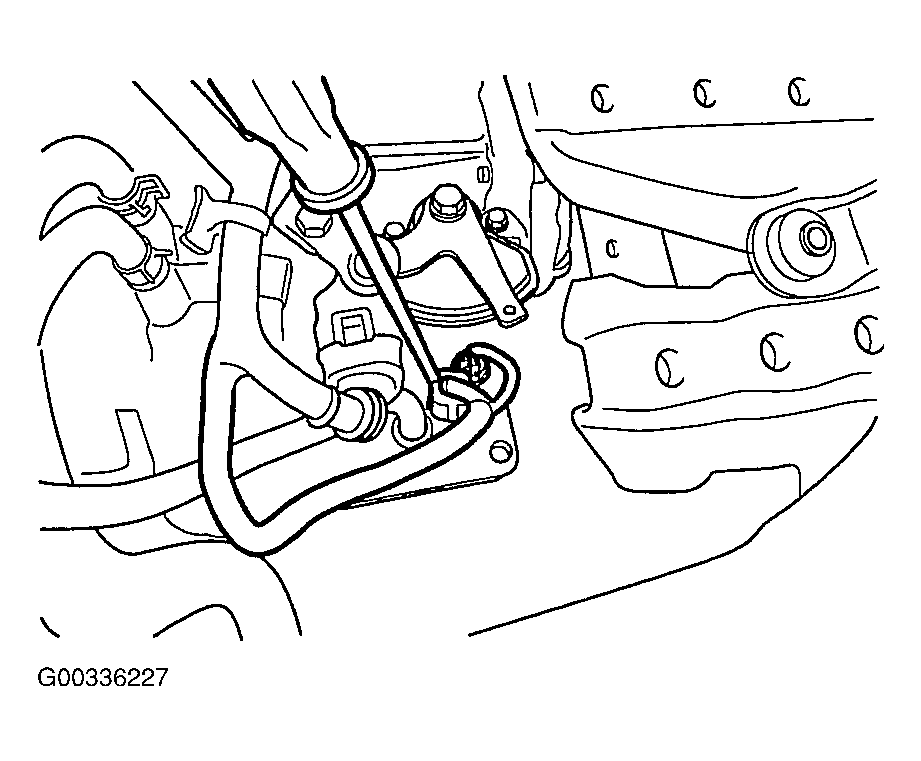

Remove the cotter pin of the control cable.

Fig 5: Removing Control Cable Cotter Pin
Courtesy of HYUNDAI MOTOR CO.
Remove the oil filler tube.

Fig 6: Removing Oil Filler Tube
Courtesy of HYUNDAI MOTOR CO.

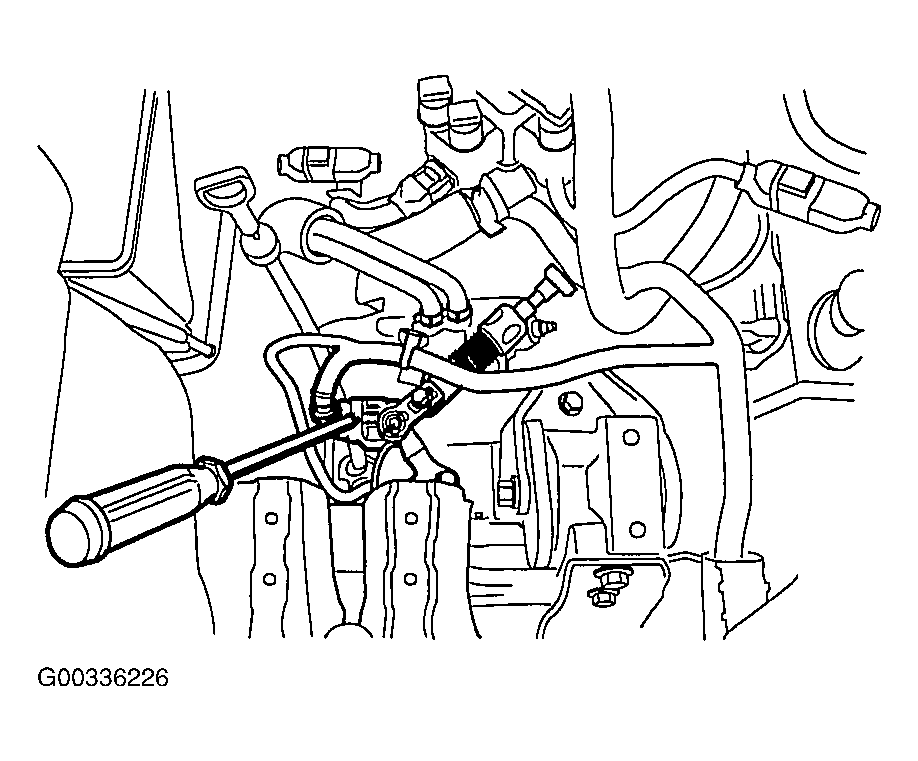

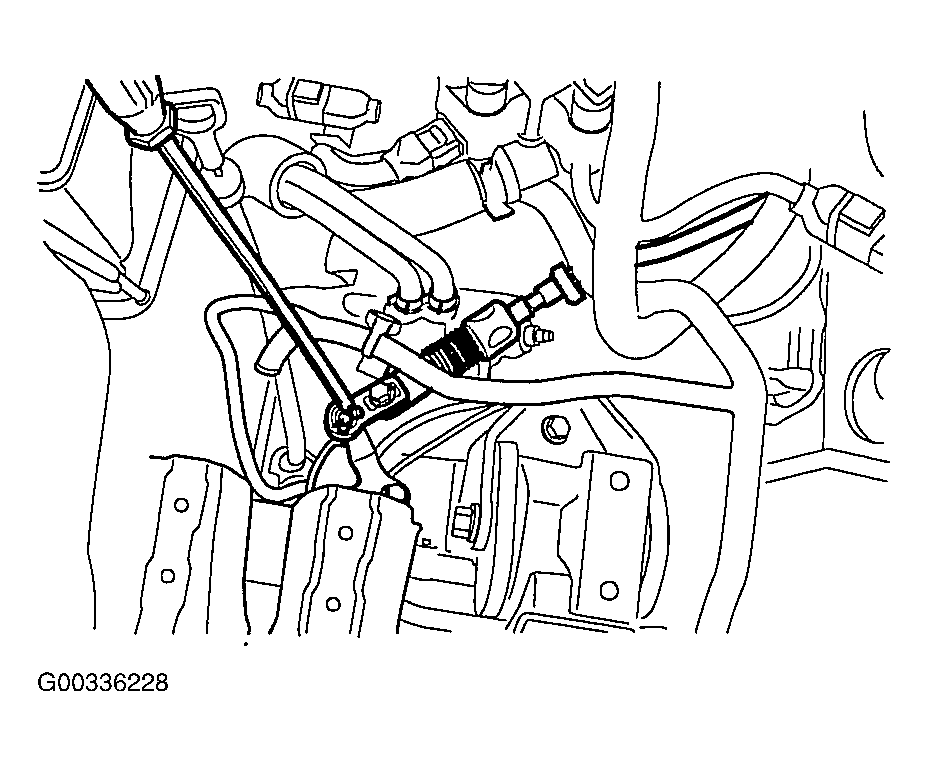

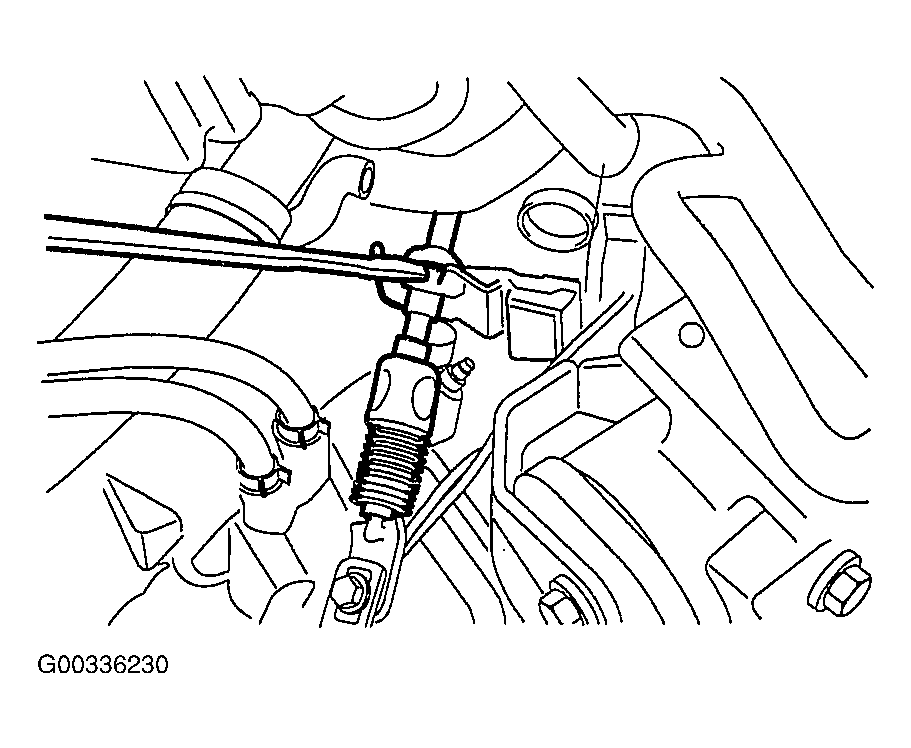

Remove the clip of the control cable.

Fig 7: Removing Clip Of Control Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the oil cooler hose.

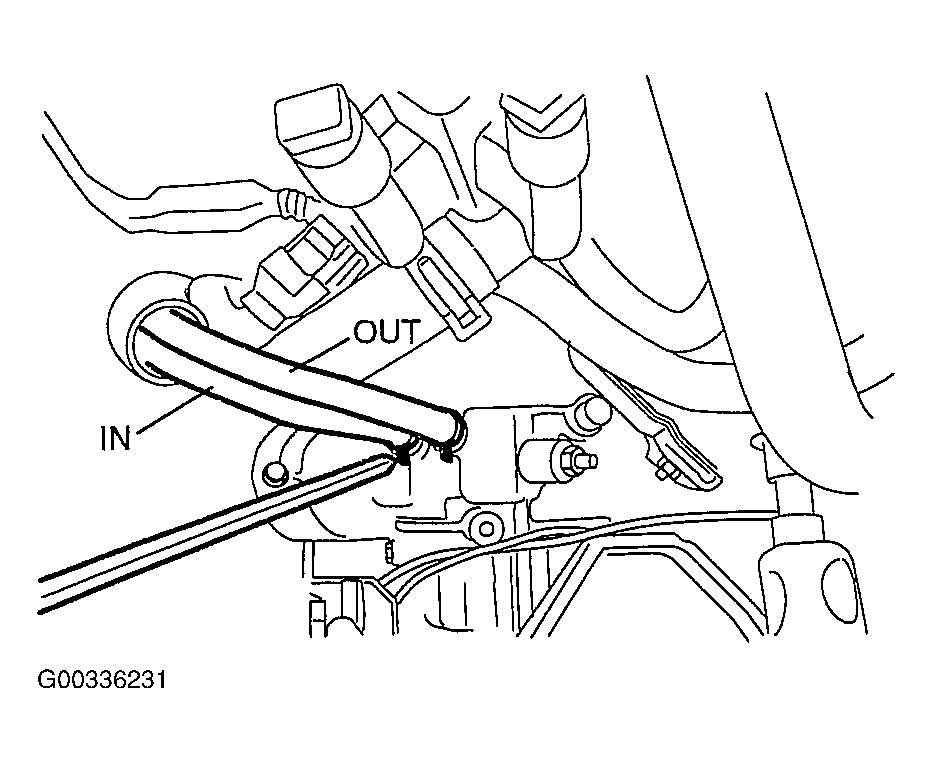

Fig 8: Removing Oil Cooler Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the speedometer driven gear connector. (speed sensor connector)

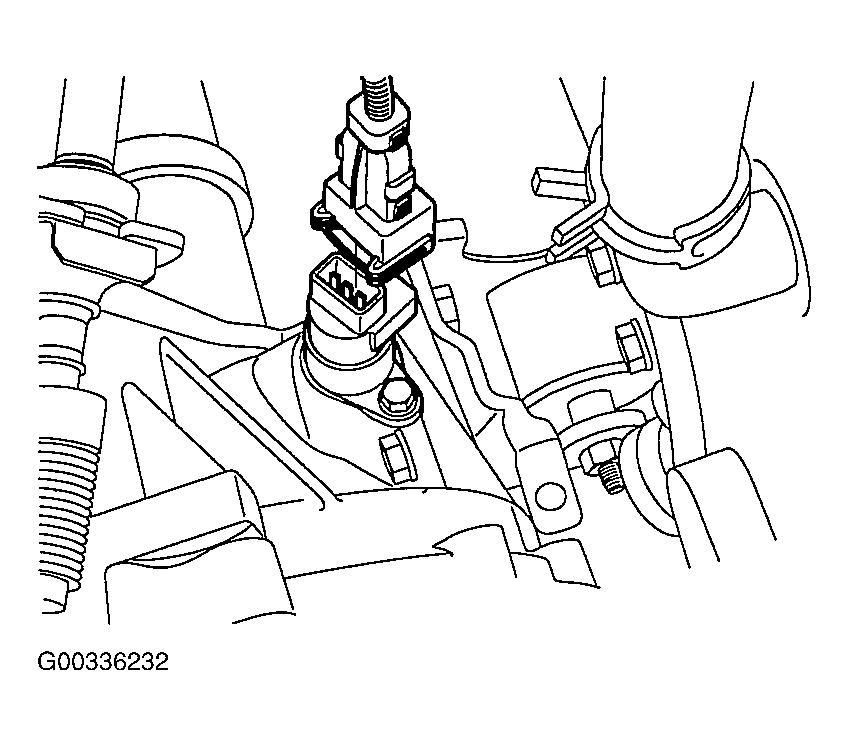

Fig 9: Removing Speedometer Driven Gear Connector (Speed Sensor Connector)
Courtesy of HYUNDAI MOTOR CO.

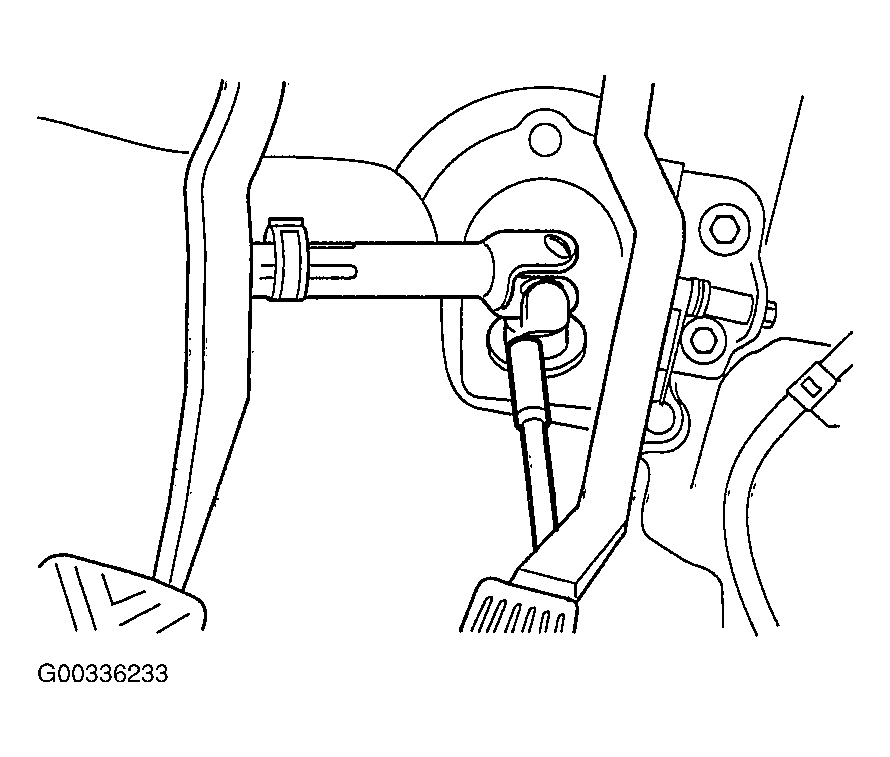

Remove the u-joint.

Fig 10: Removing U-Joint
Courtesy of HYUNDAI MOTOR CO.
Remove the power steering return hose.
Remove the tire.
Remove the starter motor.

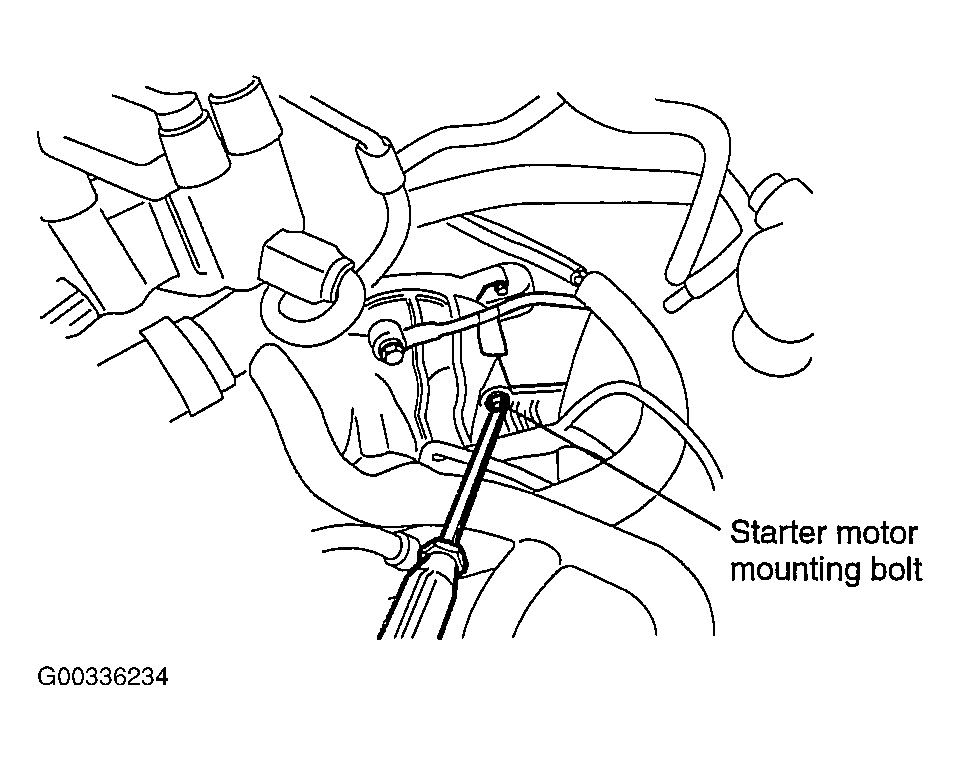

Fig 11: Removing Starter Motor
Courtesy of HYUNDAI MOTOR CO.

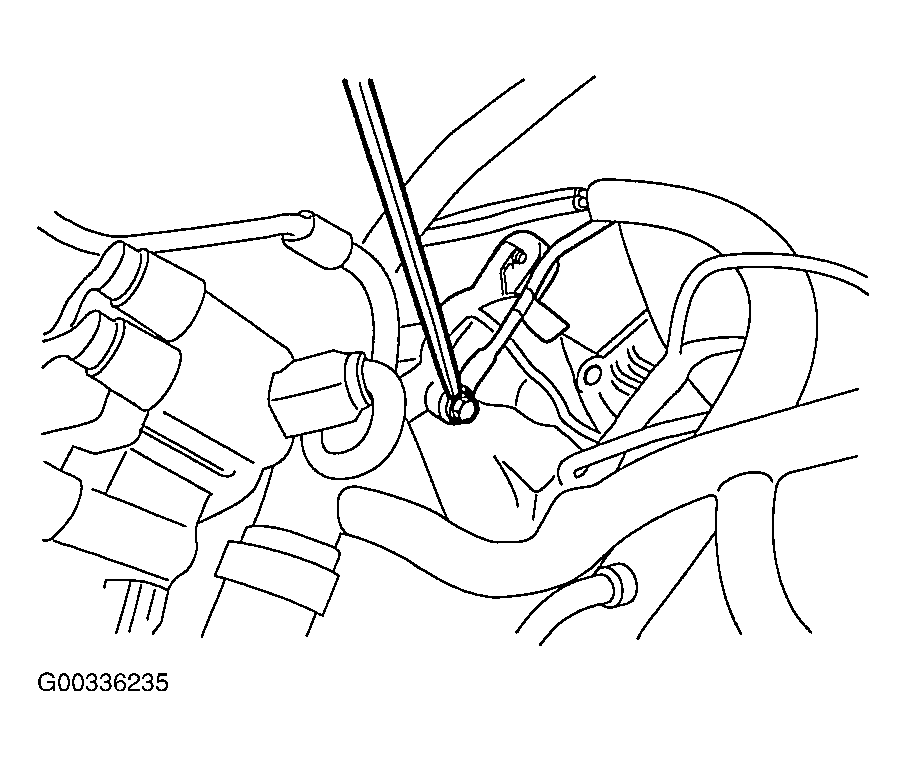

Remove the bolt for the upper connection of the engine and the transaxle.

Fig 12: Removing Bolt For Upper Connection Of Engine & Transaxle
Courtesy of HYUNDAI MOTOR CO.

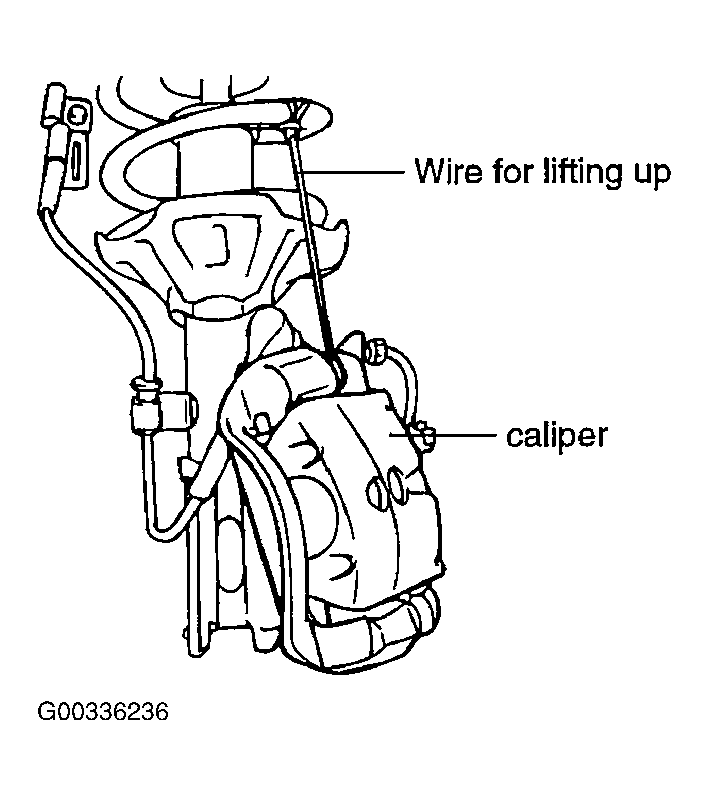

Remove the caliper after lifting up the vehicle.

Fig 13: Removing Caliper
Courtesy of HYUNDAI MOTOR CO.
Separate the tie rod end from the pin and nut.

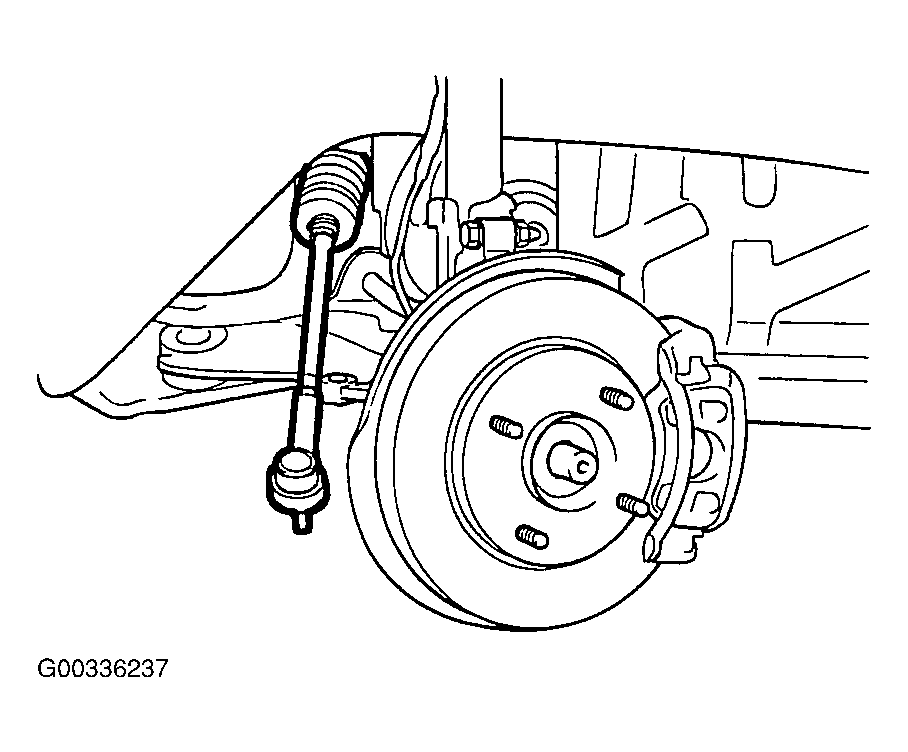

Fig 14: Separating Tie Rod End From Pin & Nut
Courtesy of HYUNDAI MOTOR CO.

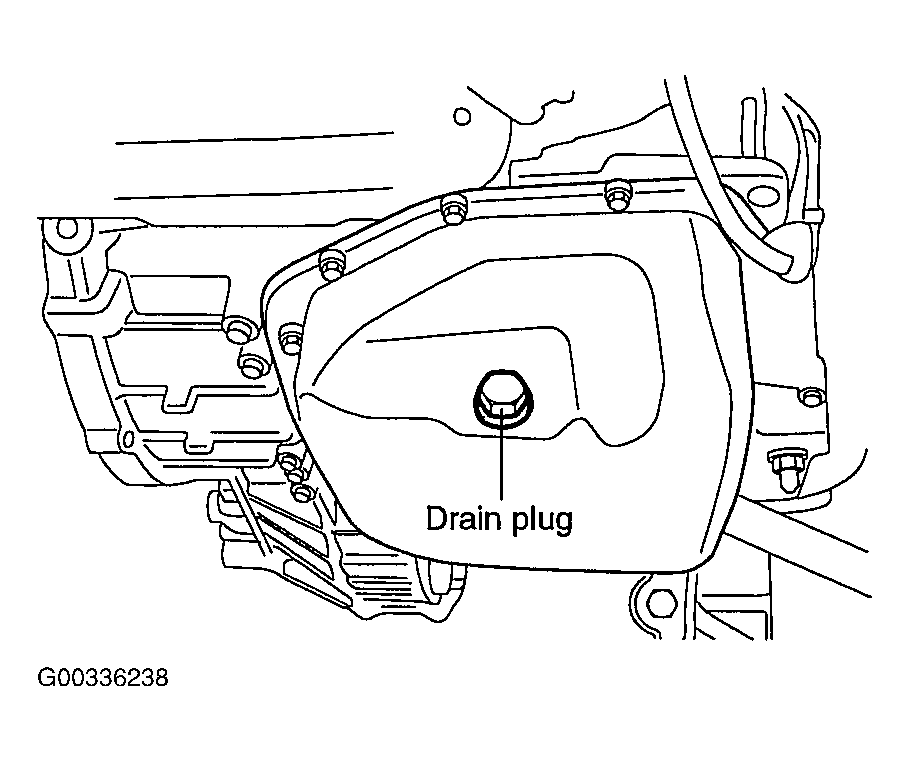

Remove the oil drain plug and drain the oil.

Fig 15: Locating Oil Drain Plug
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle side cover.

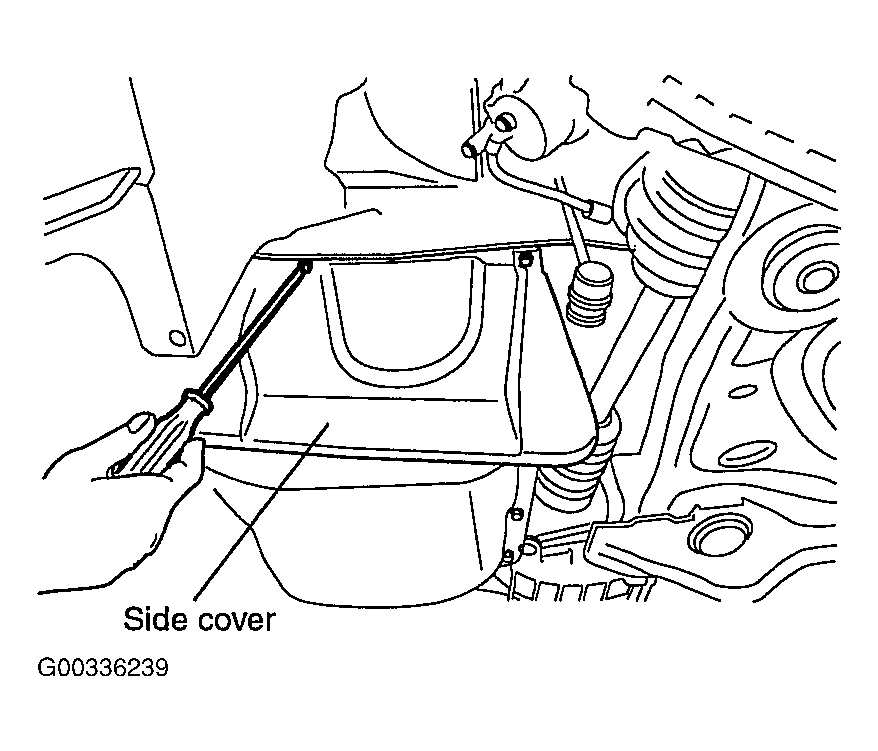

Fig 16: Removing Transaxle Side Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the wheel speed sensor and the knuckle mounting bolt.

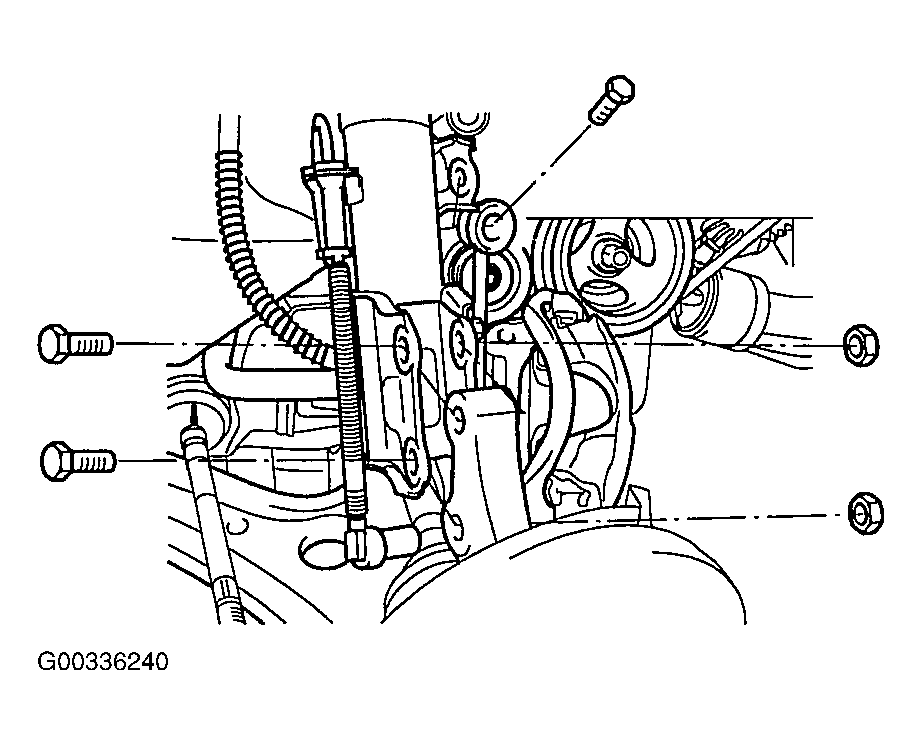

Fig 17: Removing Wheel Speed Sensor & Knuckle Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

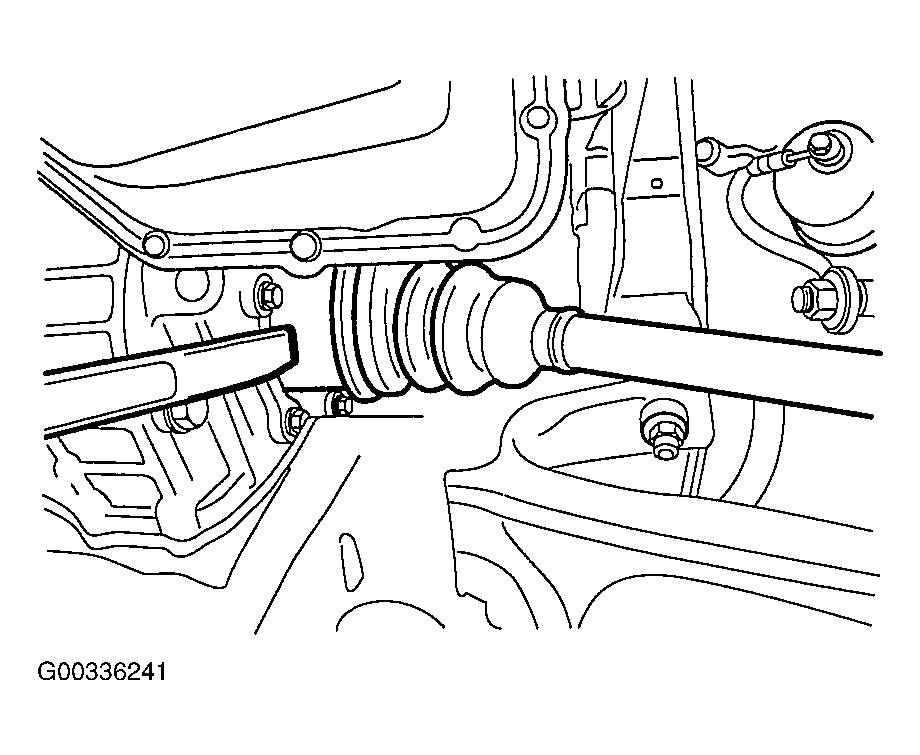

Remove the drive shaft and the left side hub nut.

Fig 18: Removing Drive Shaft & Left Side Hub Nut
Courtesy of HYUNDAI MOTOR CO.

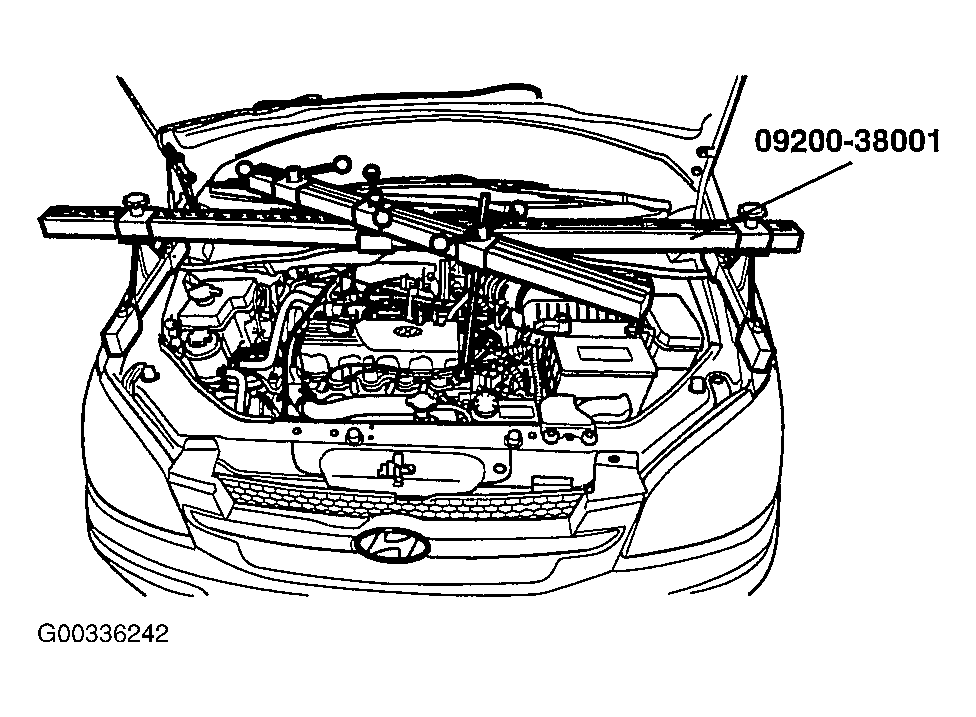

Install the special tool, the engine support fixture on the engine assembly.

Fig 19: Installing Engine Support Fixture
Courtesy of HYUNDAI MOTOR CO.

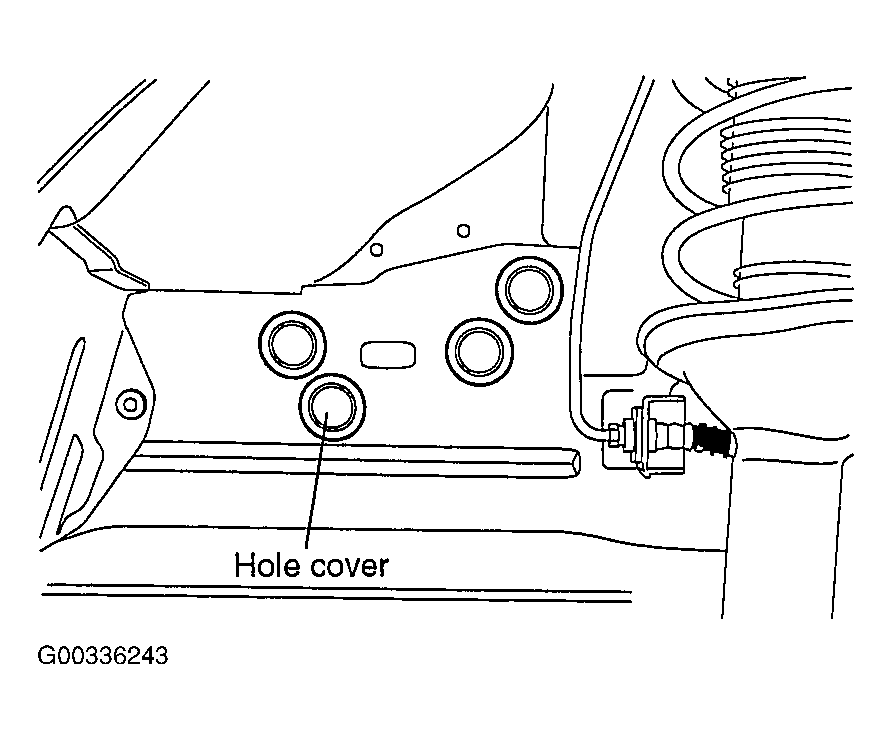

Remove the transaxle mounting bracket after removing the hole cover and the mounting bolts.

Fig 20: Removing Transaxle Mounting Bracket After Removing Hole Cover & Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

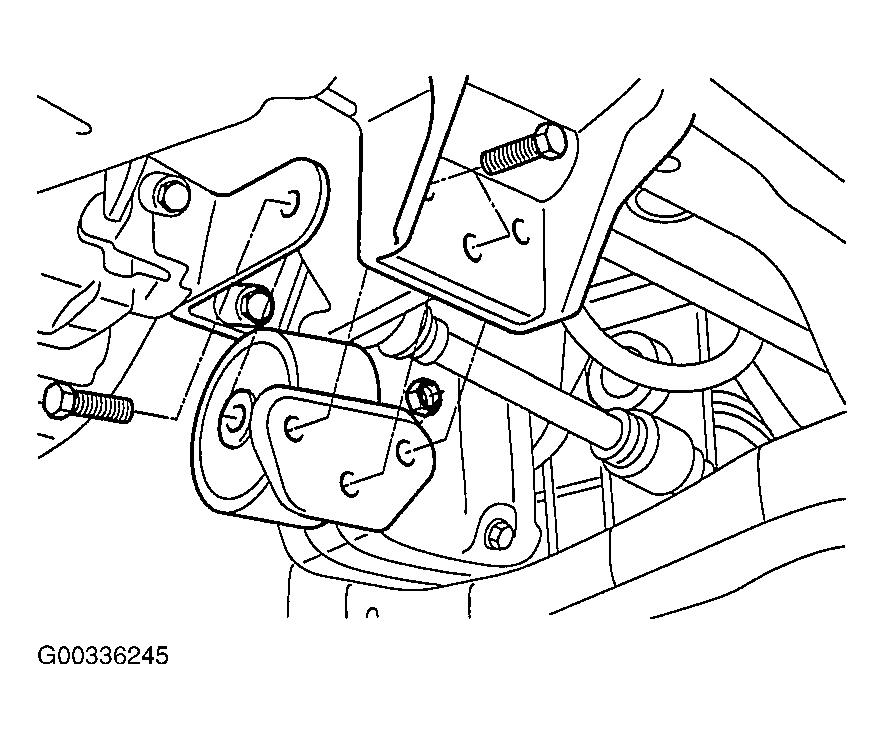

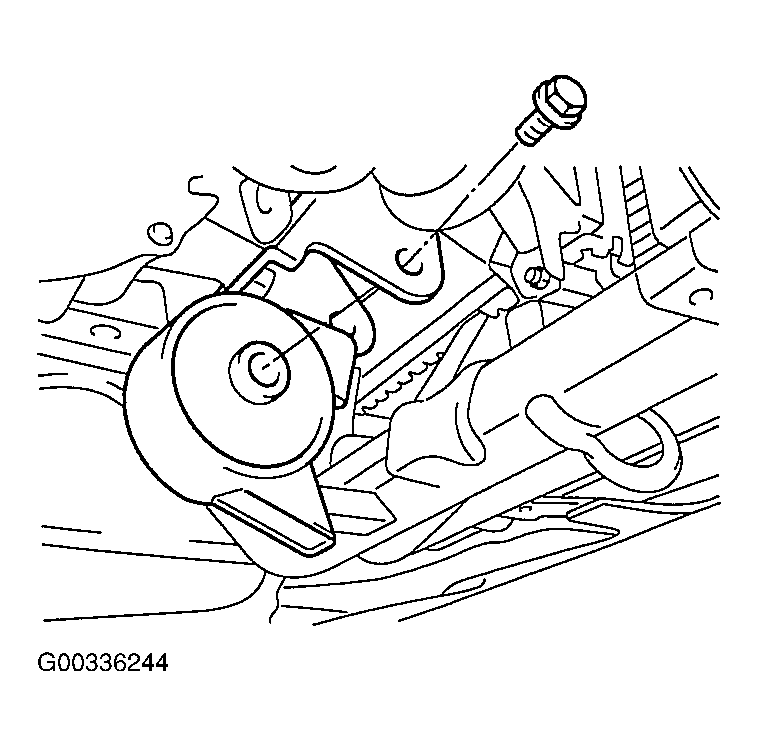

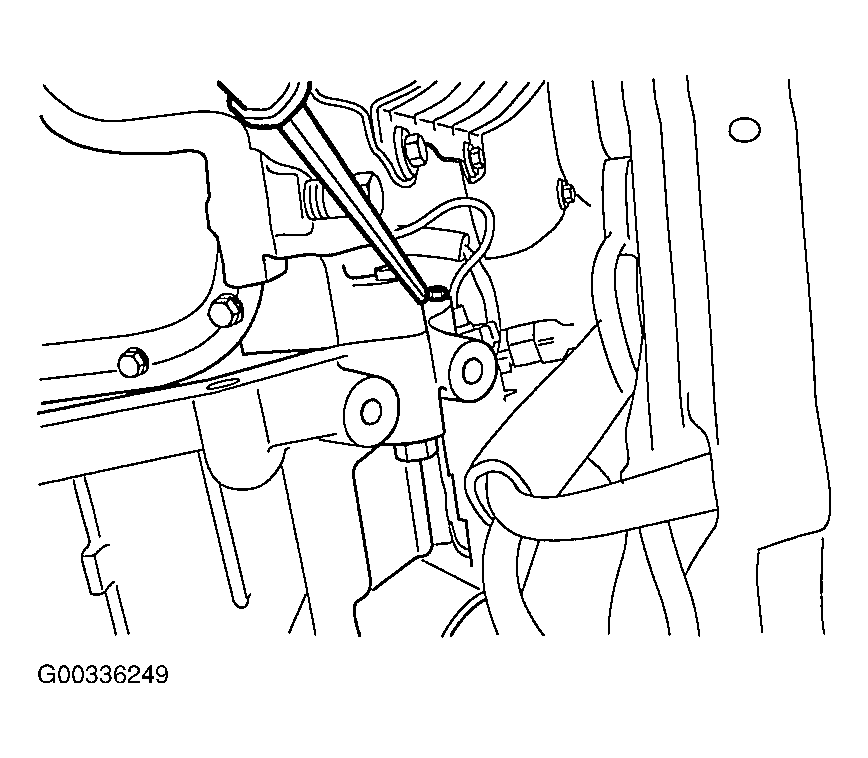

Remove the front roll stopper.

Fig 21: Removing Front Roll Stopper
Courtesy of HYUNDAI MOTOR CO.
Remove the rear roll stopper.

Fig 22: Removing Rear Roll Stopper
Courtesy of HYUNDAI MOTOR CO.
Remove the front muffler.

Fig 23: Removing Front Muffler
Courtesy of HYUNDAI MOTOR CO.

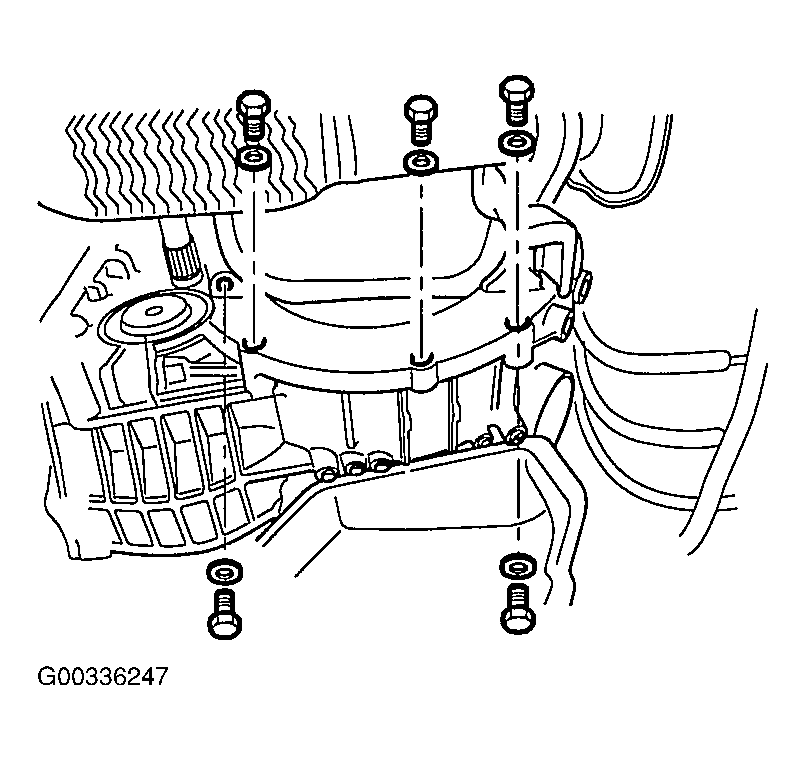

Remove the bell housing cover. (Bolts : 5EA)

Fig 24: Removing Bell Housing Cover
Courtesy of HYUNDAI MOTOR CO.

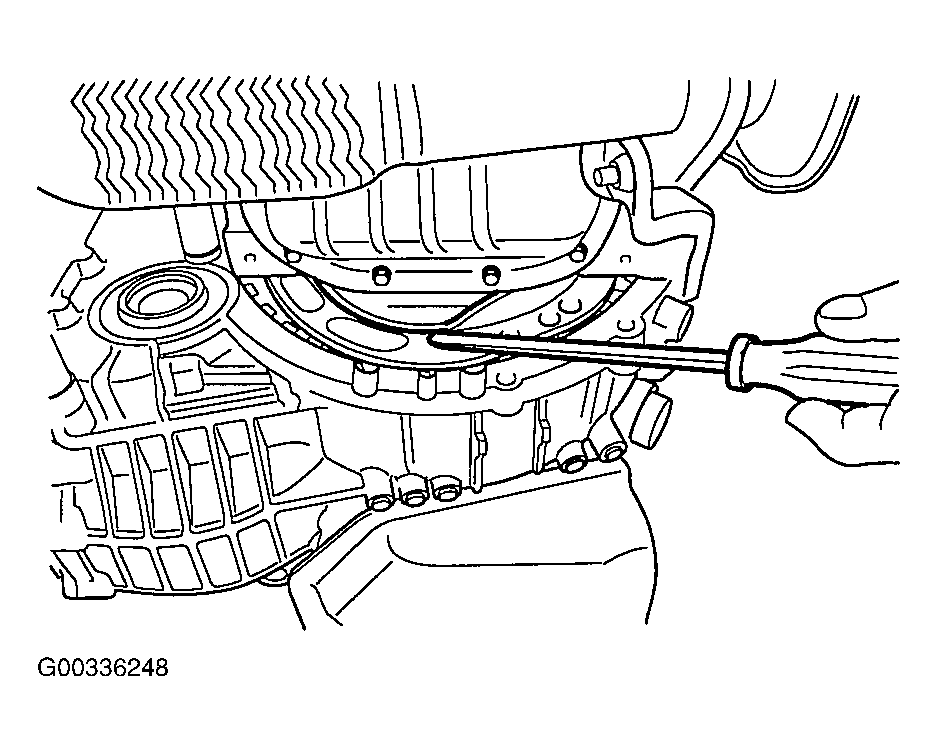

Remove the torque converter mounting plate bolts (3EA).

Fig 25: Removing Torque Converter Mounting Plate Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the cylinder block plate bolt.

Fig 26: Removing Cylinder Block Plate Bolt
Courtesy of HYUNDAI MOTOR CO.

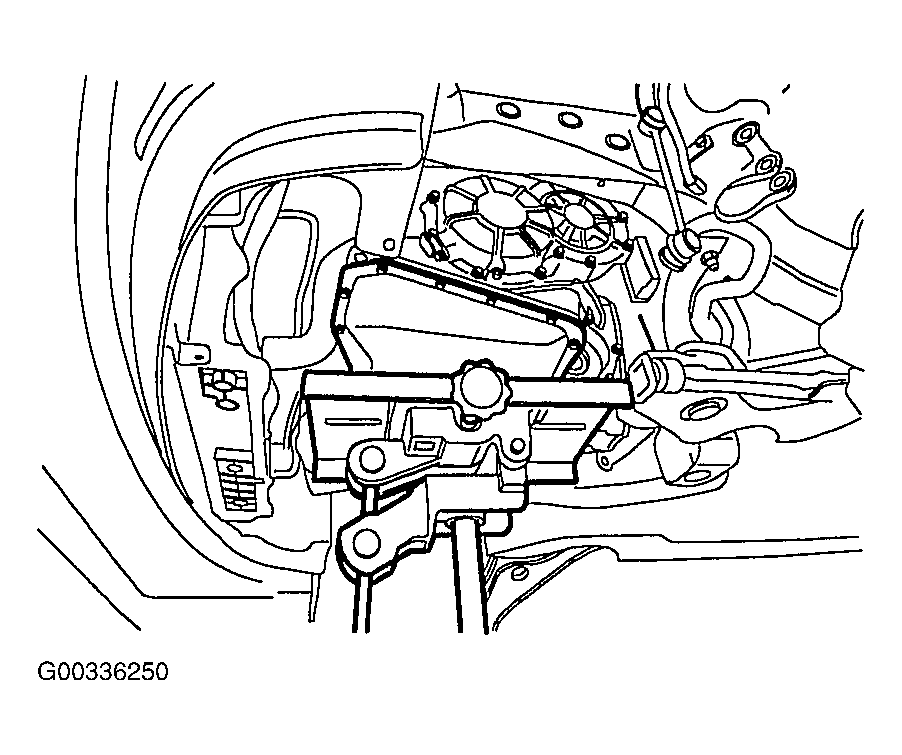

Install the jack for supporting transaxle.

Fig 27: Installing Jack For Supporting Transaxle
Courtesy of HYUNDAI MOTOR CO.
Remove the lower mounting bolts (2EA) of the transaxle.
Remove the sub frame.
Remove the transaxle.

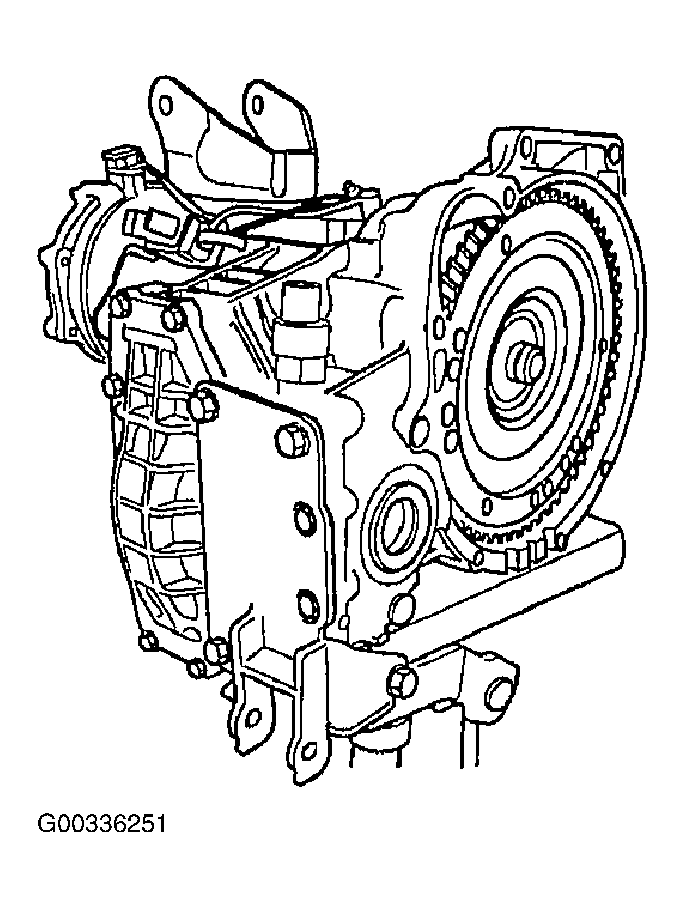

Fig 28: Removing Transaxle
Courtesy of HYUNDAI MOTOR CO.
