Immobilizer Control System
›
Troubleshooting
›
Diagnostic Trouble Code Chart
›
Notes
Diagnostic Trouble Code Chart: Notes
Inspect according to the inspection chart that is appropriate for the malfunction code.

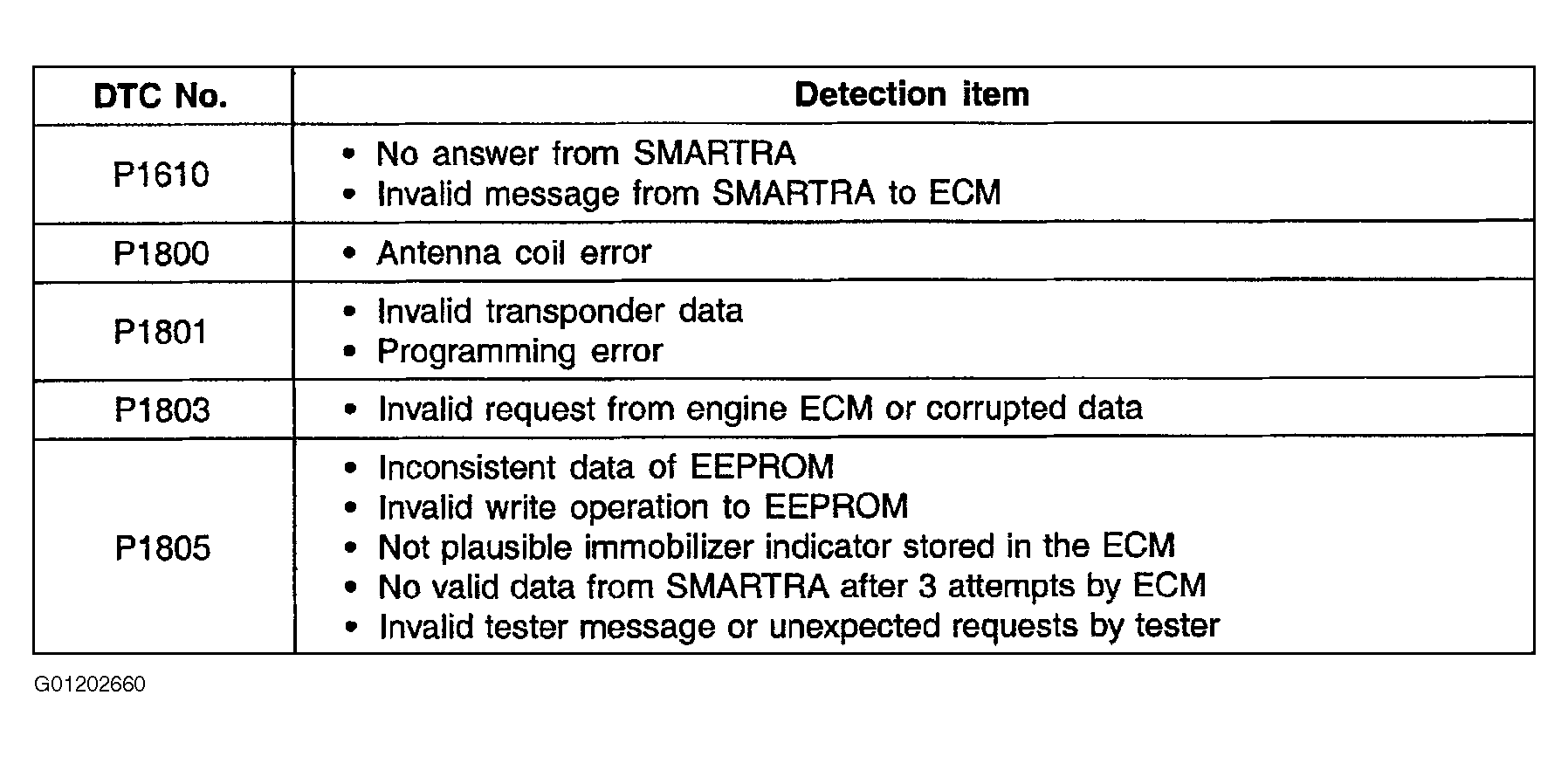

Fig 1: Trouble Code & Detection Item Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
