Home › Hyundai › 2004 › Elantra GLS, Automatic › Repair and Diagnosis › Body & Frame › Ignition Switch/Steering Lock › Multi Function Switch, Horn System & Ignition Switch › MULTIFUNCTION Switch › Components

MULTIFUNCTION Switch: Components

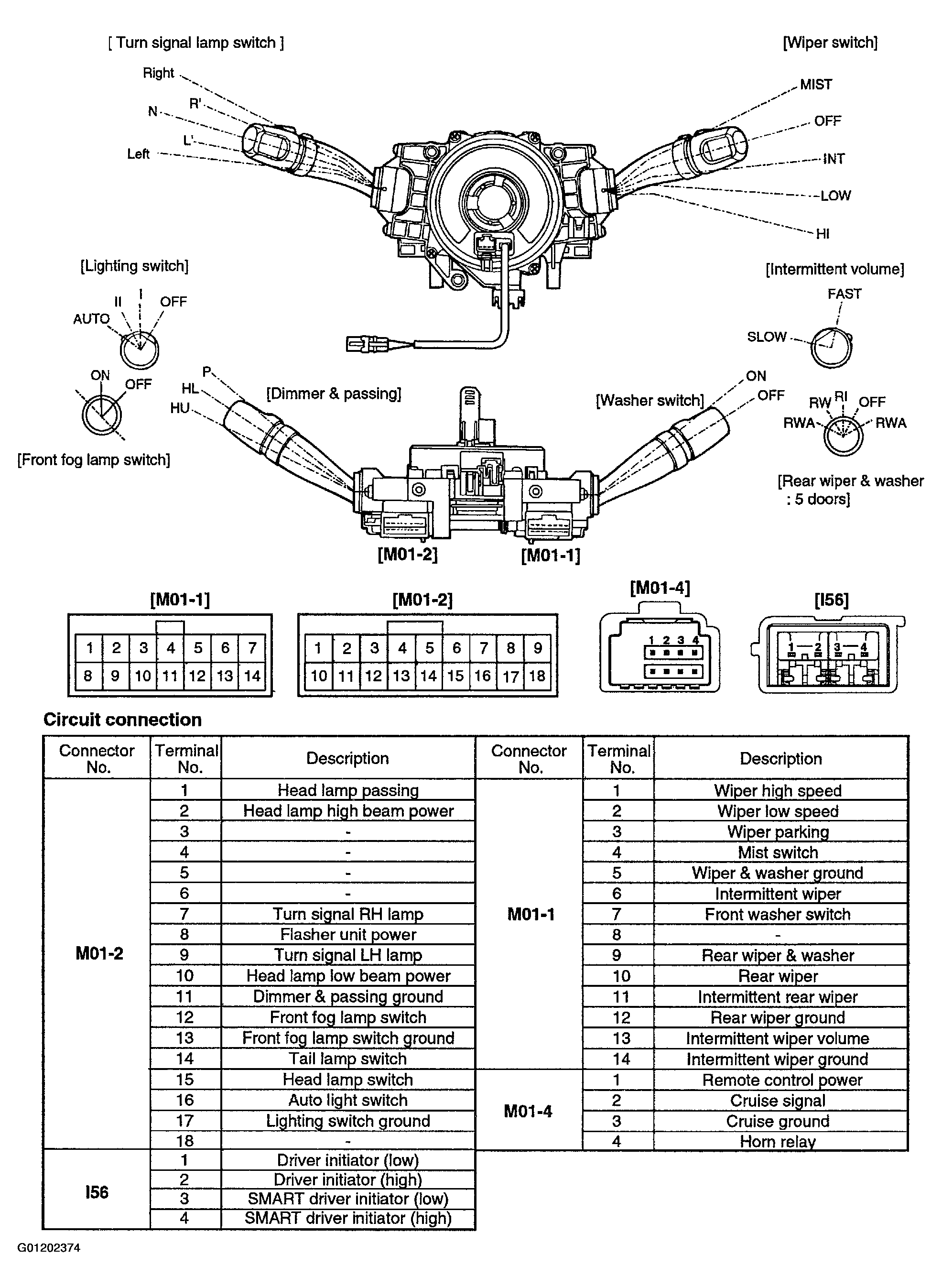

Fig 1: Multifunction Switch Components
G01202374Courtesy of HYUNDAI MOTOR CO.
