DTC P0101: Mass Air Flow Sensor (MAFS) Range/Performance Problem
›
Signal Waveform
Signal Waveform

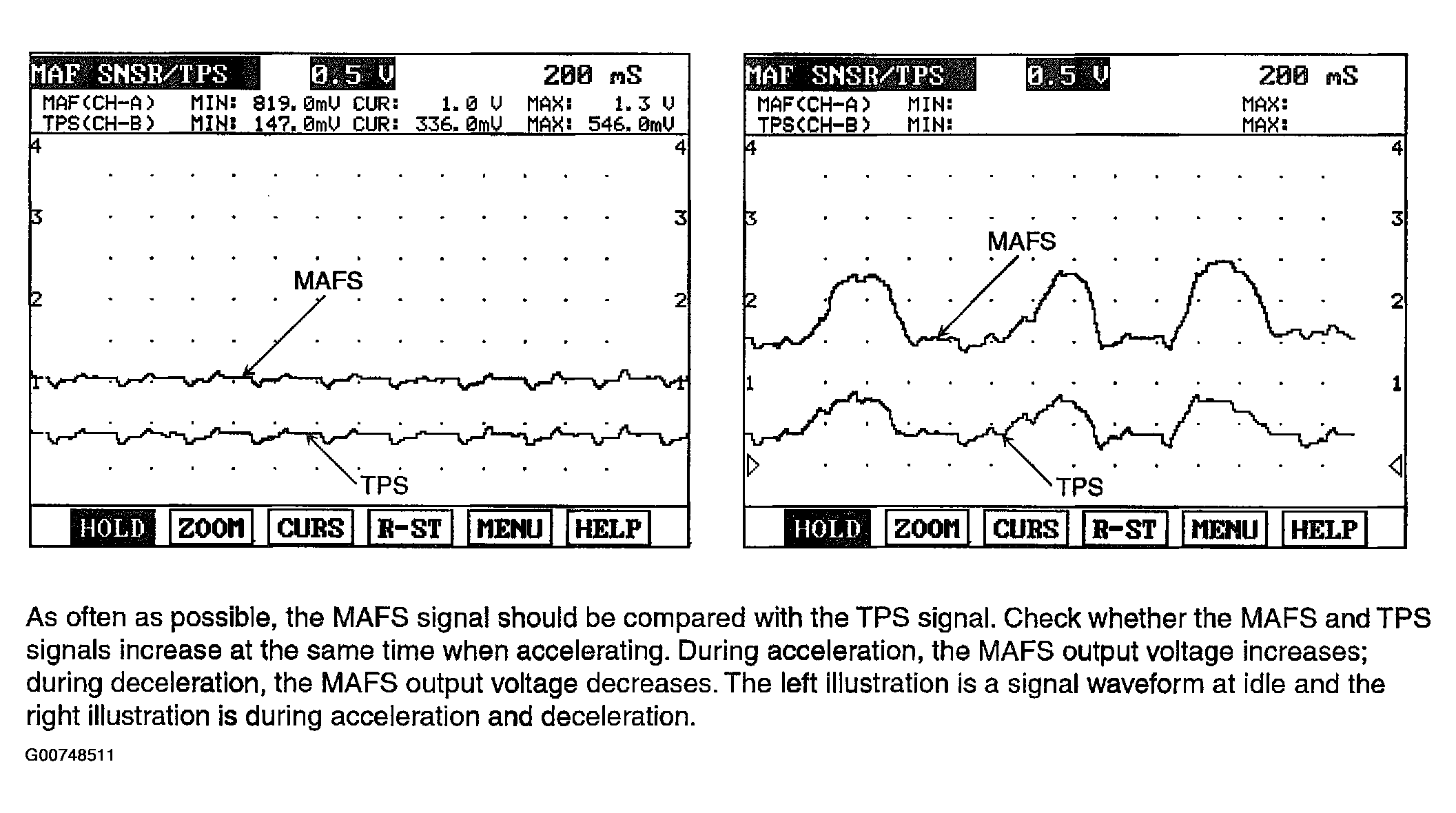

Fig 1: MAFS Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
