DTC P0121: Throttle Position Sensor (TPS) Circuit Range/Performance Problem
›
Signal Waveform
Signal Waveform

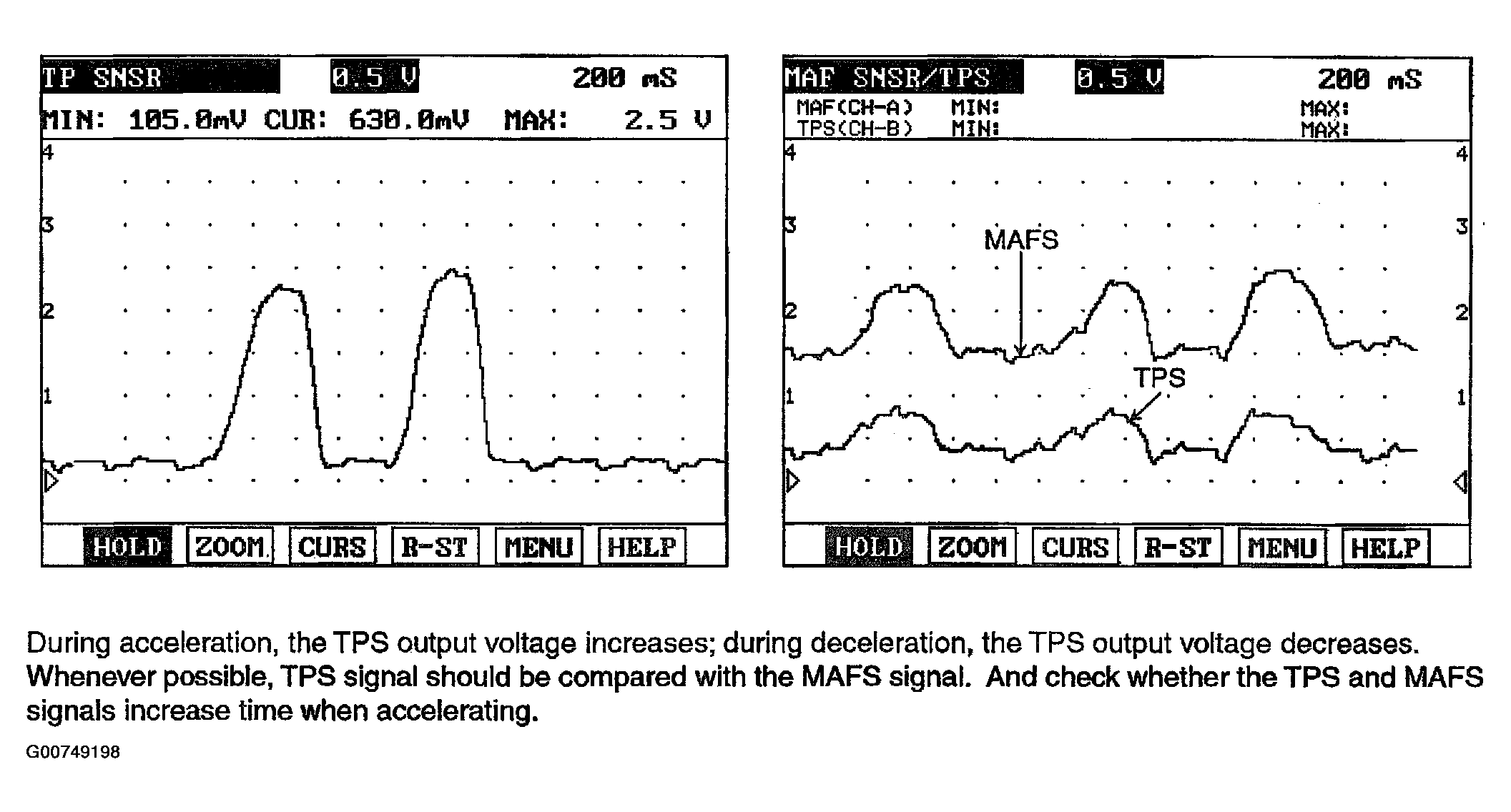

Fig 1: TPS Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
