DTC P0136: O2 Sensor Circuit Open Check (Bank 1, Sensor 2): DTC Detecting Condition

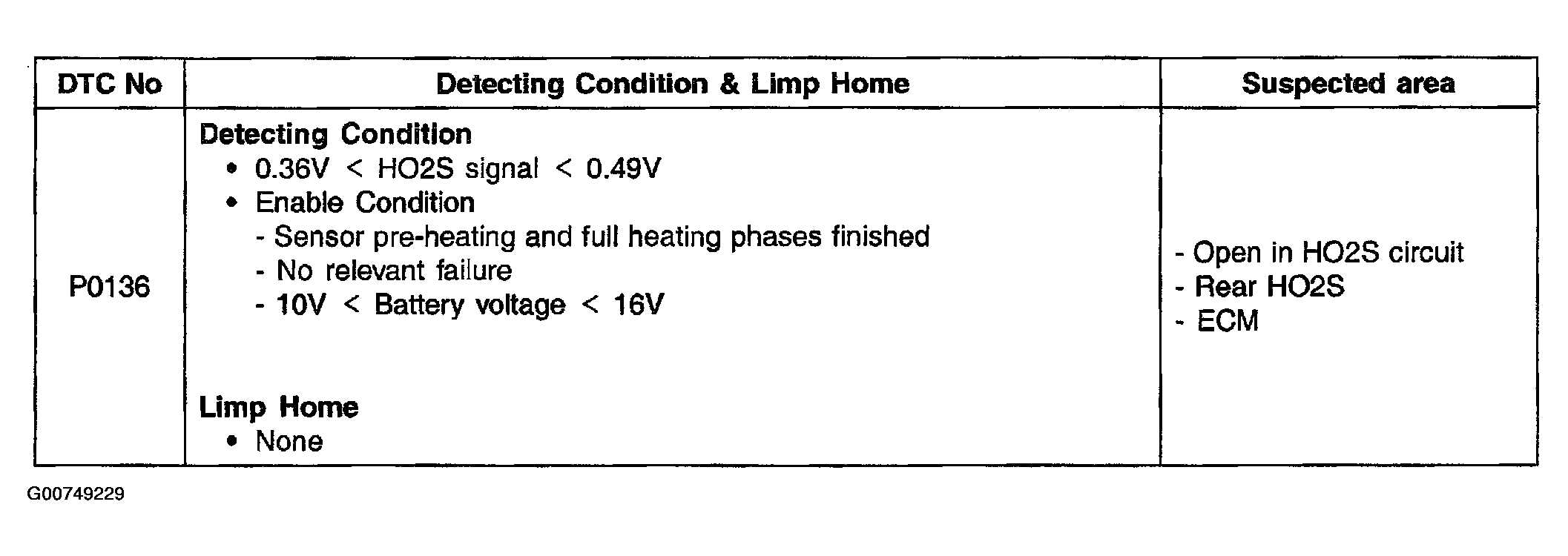

Fig 1: DTC P0136: Detecting Conditions & Probable Causes
G00749229Courtesy of HYUNDAI MOTOR CO.
