DTC P0196: Engine Oil Temperature Sensor (OTS) Circuit Range/Performance
›
DTC Detecting Condition
DTC P0196: Engine Oil Temperature Sensor (OTS) Circuit Range/Performance: DTC Detecting Condition

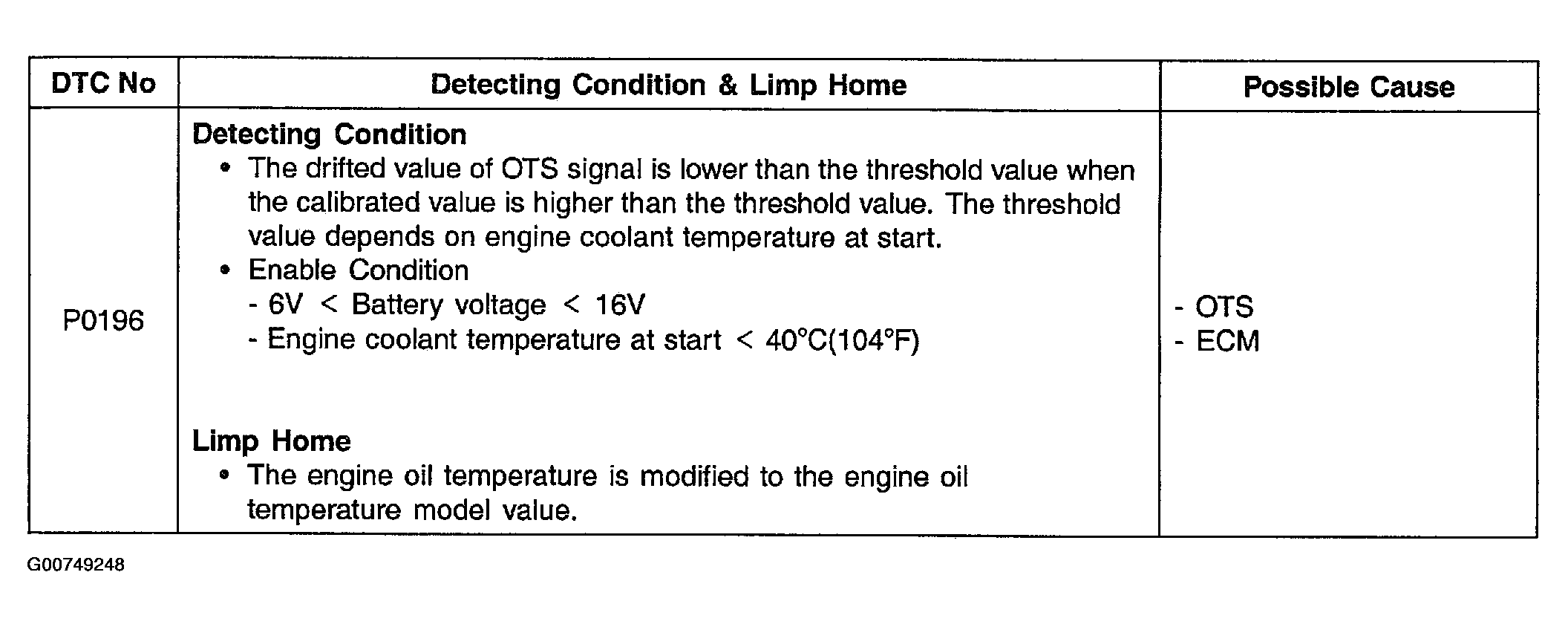

Fig 1: DTC P0196: Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
