Accelerator Pedal: Removal

  1. Disconnect the accelerator cable from the accelerator pedal by removing the 2 bolts (A).
    Fig 1: Removing Accelerator Cable Bolts
    G00748444Courtesy of HYUNDAI MOTOR CO.
  2. After disconnecting the accelerator cable, loosen the bolts (A) of the accelerator arm bracket and remove.

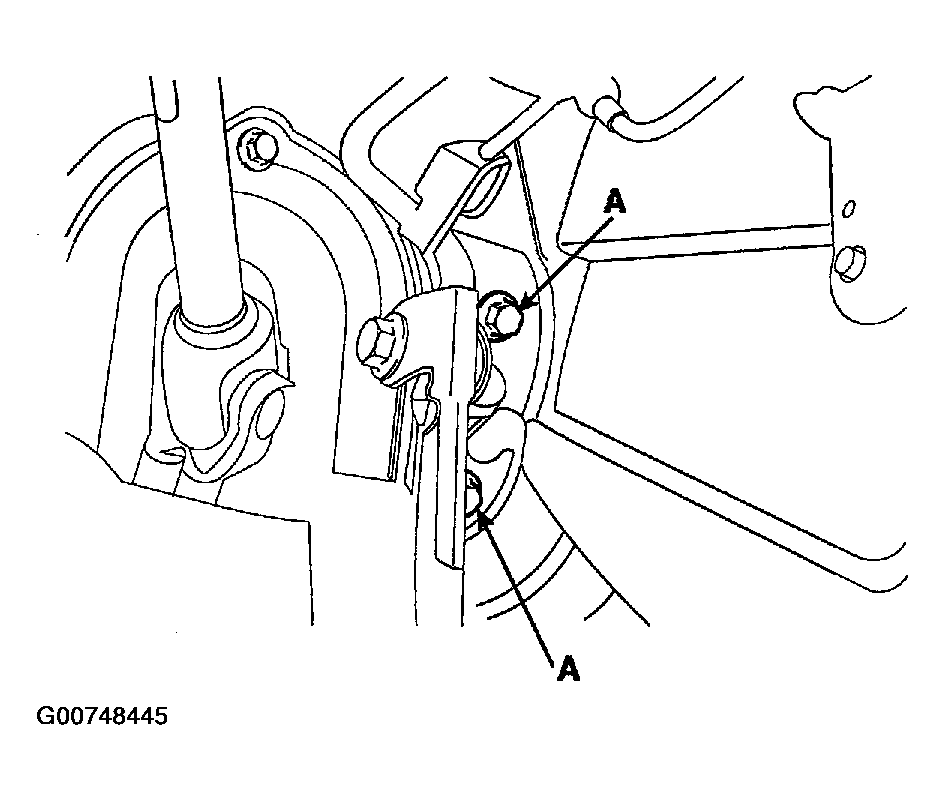

    Fig 2: Removing Accelerator Arm Bracket
    G00748445Courtesy of HYUNDAI MOTOR CO.
