Fuel Filler Cap: Operation

The fuel filler cap is equipped with a vacuum relief valve to prevent the escape of fuel vapor into the atmosphere.

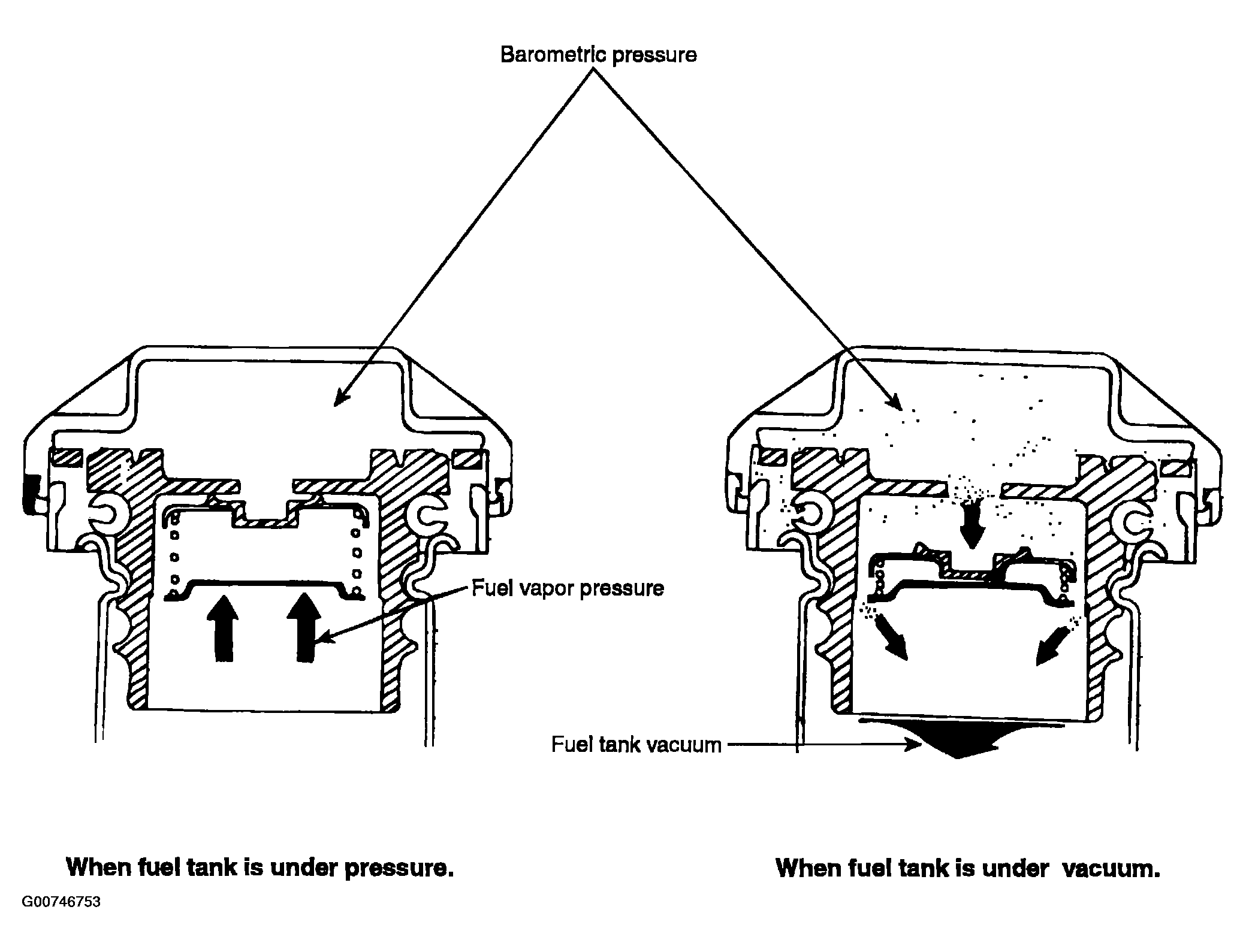

Fig 1: Identifying Fuel Filler Cap Operation
G00746753Courtesy of HYUNDAI MOTOR CO.
