DTC P0121: Throttle Position Sensor (TPS) Circuit Range/Performance Problem: Specifications

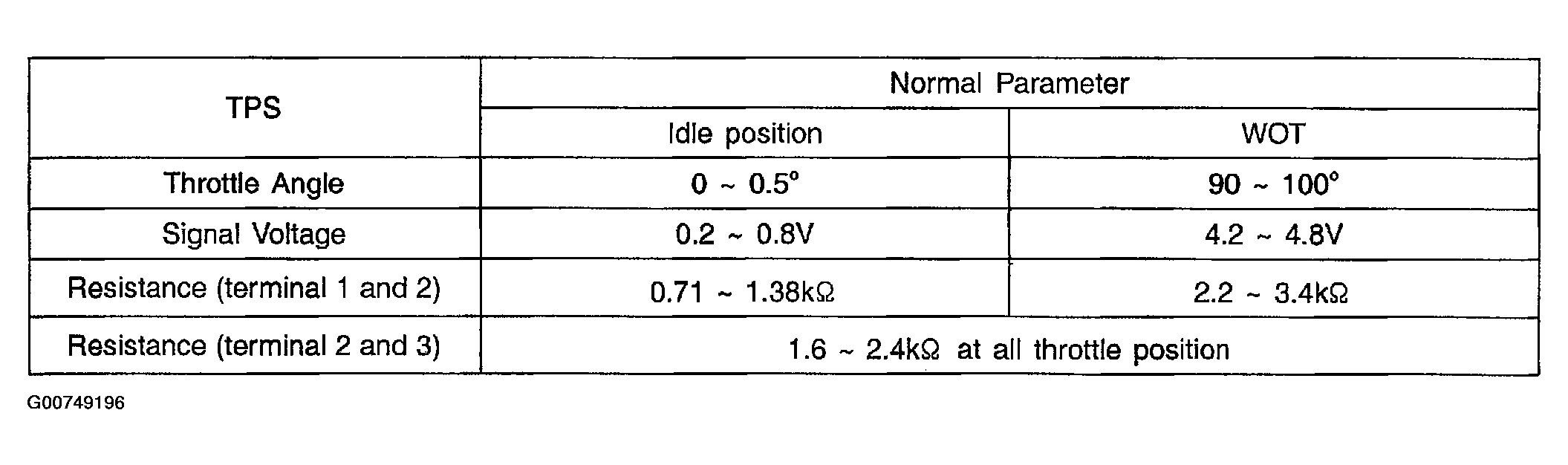

Fig 1: TPS Specification Table
G00749196Courtesy of HYUNDAI MOTOR CO.
