DTC P0198: Engine Oil Temperature Sensor Circuit High Input
›
DTC Detecting Condition
DTC P0198: Engine Oil Temperature Sensor Circuit High Input: DTC Detecting Condition

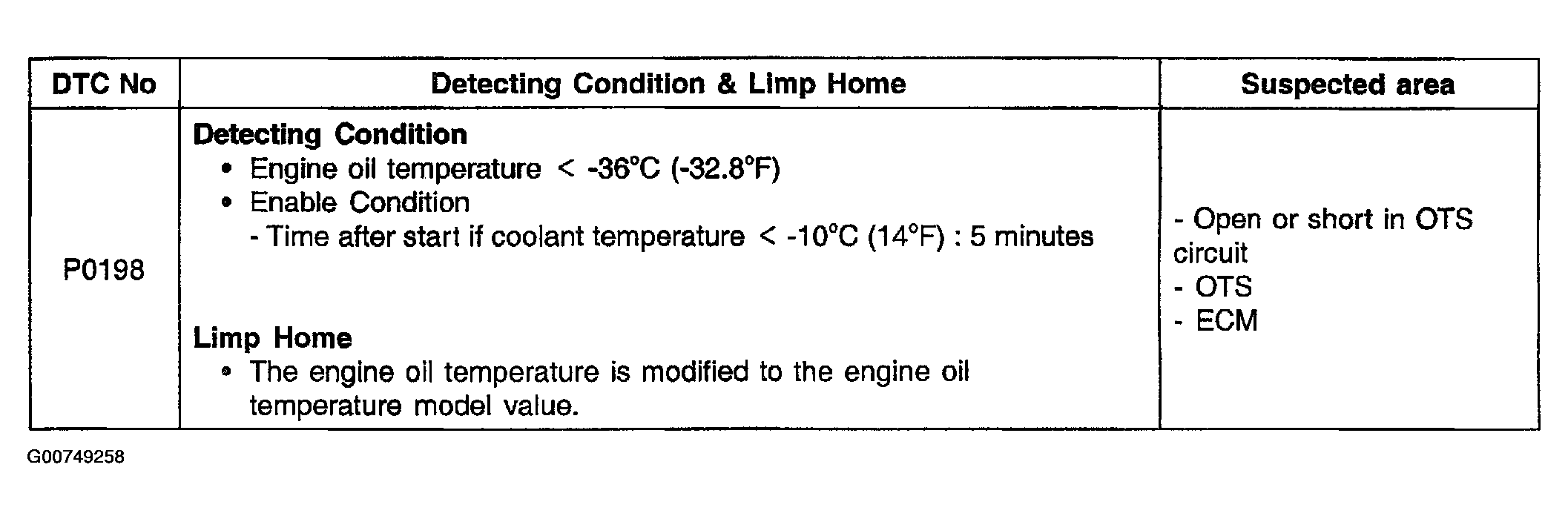

Fig 1: DTC P0198: Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.
