Location Of MFI Components
Location Of MFI Components

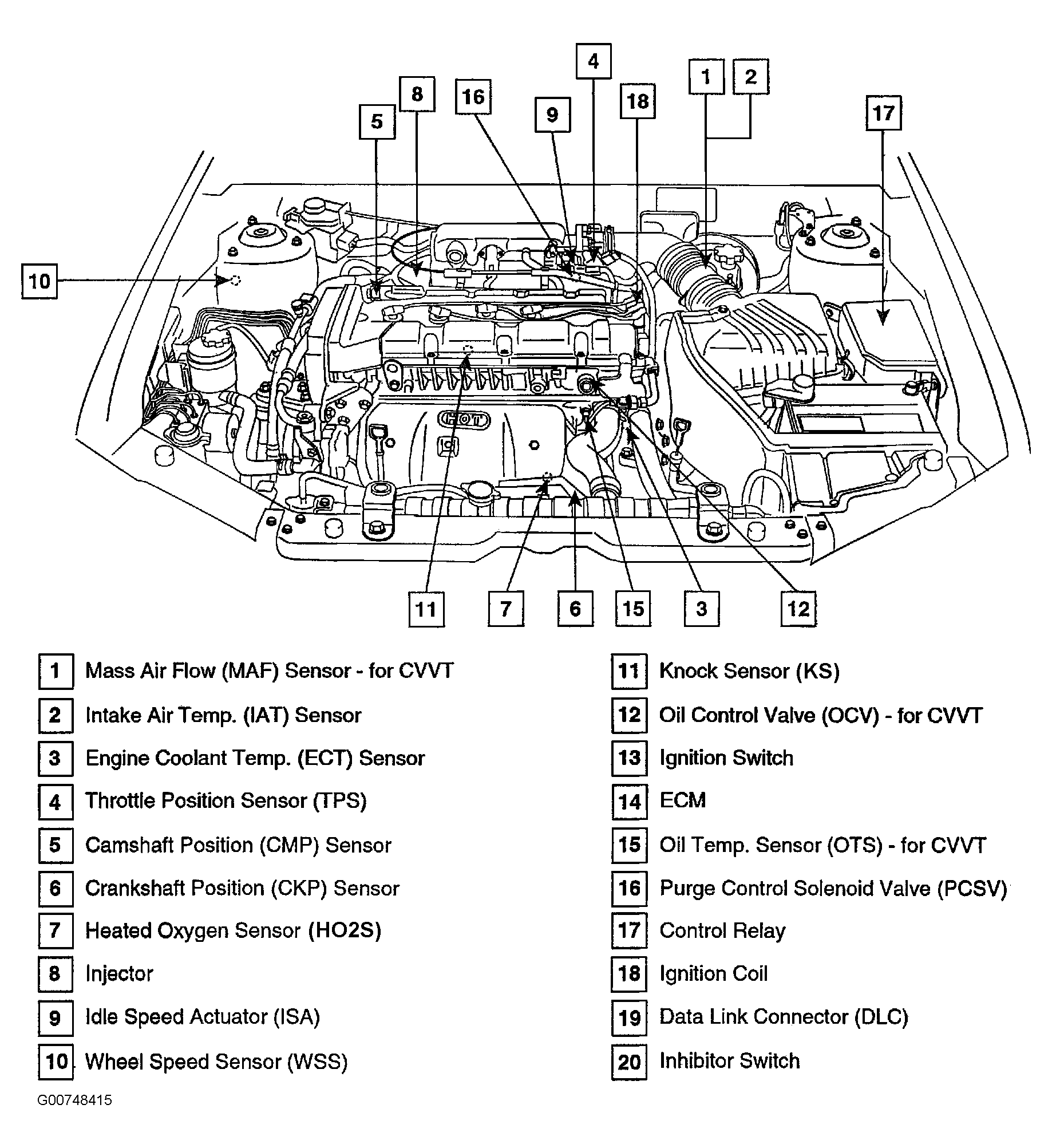

Fig 1: Locating MFI Components (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

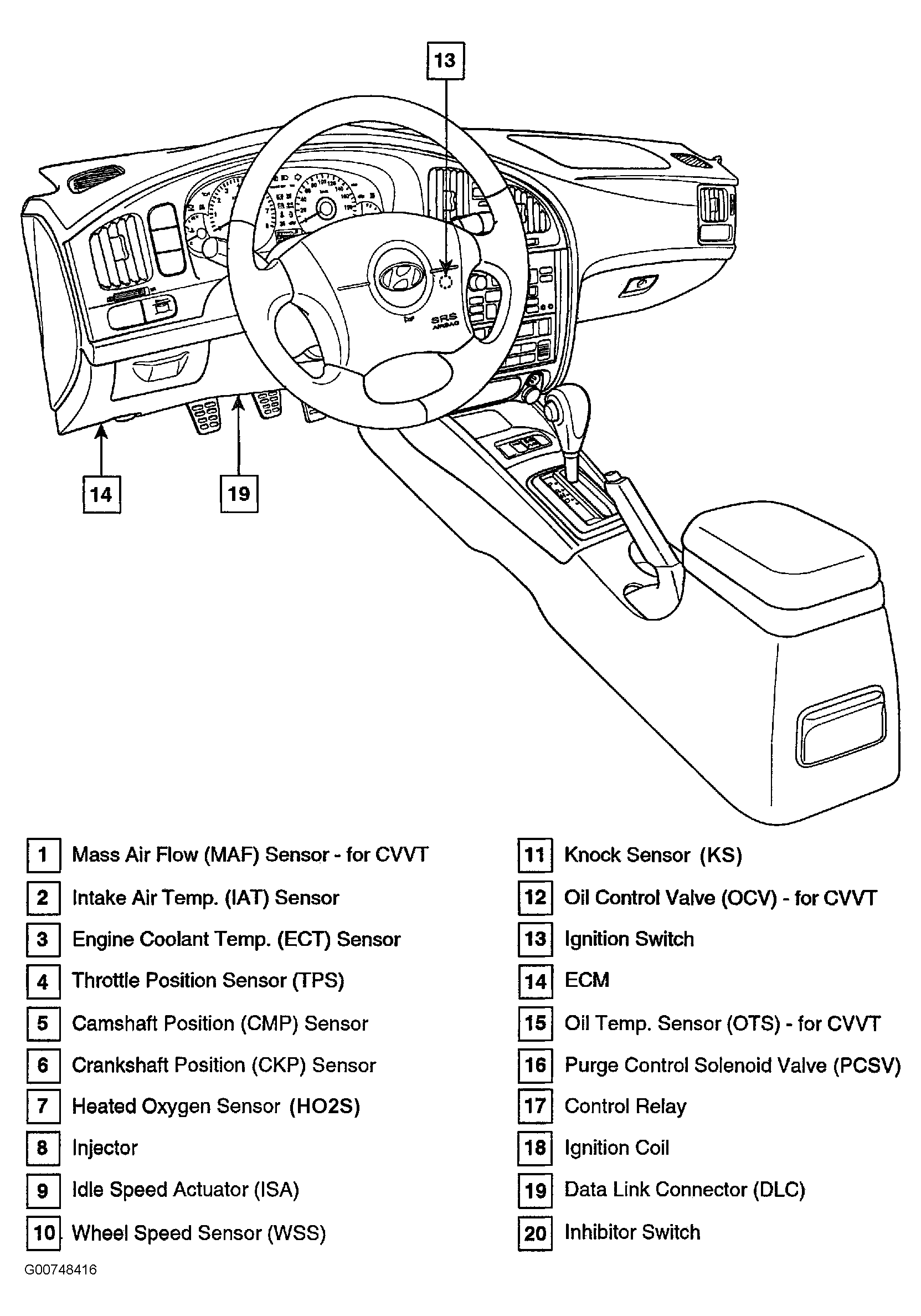

Fig 2: Locating MFI Components (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

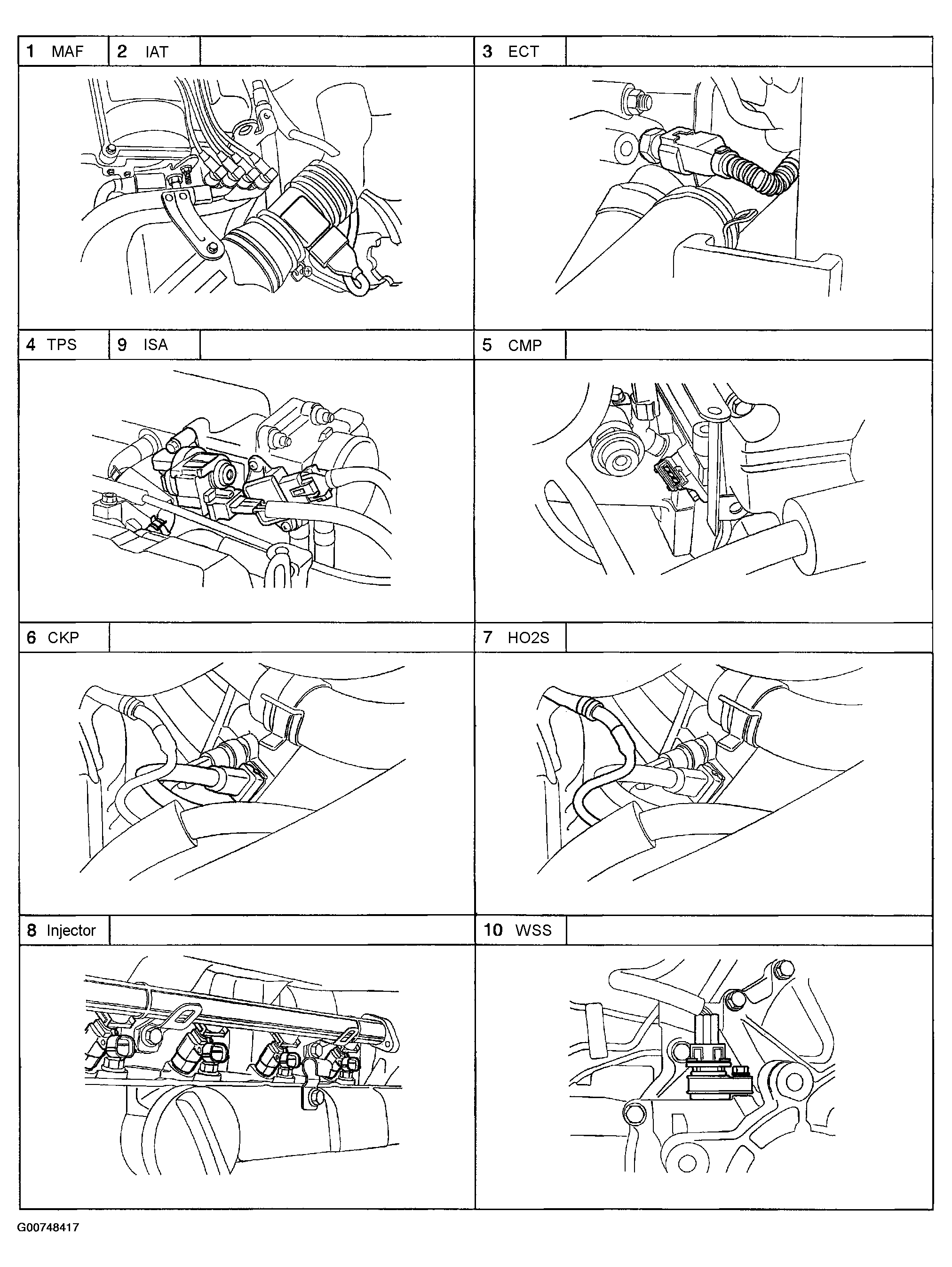

Fig 3: Locating MFI Components (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

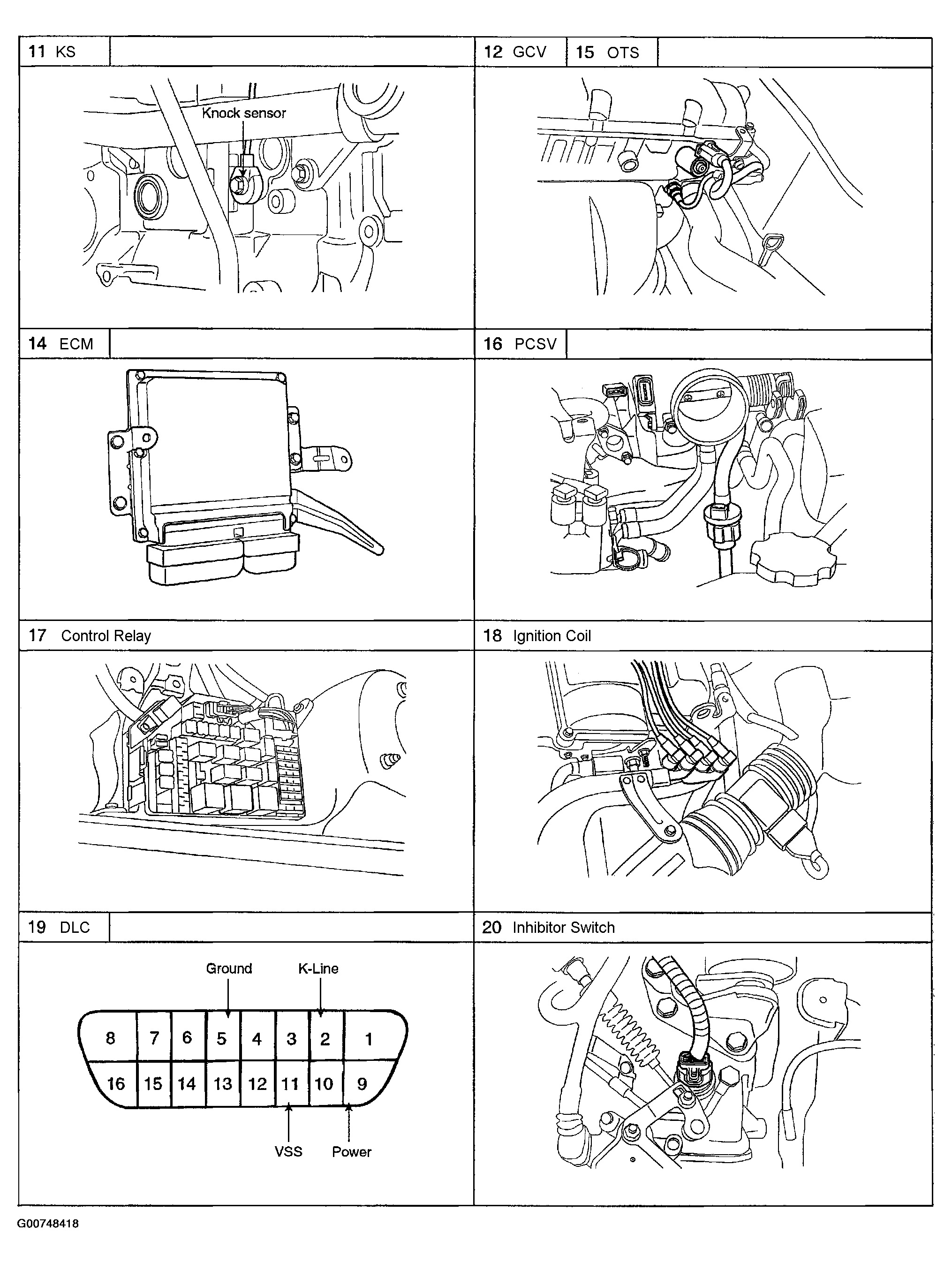

Fig 4: Locating MFI Components (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
