Service Specifications

NOTE: Overhaul information is not available from manufacturer. Only service adjustment procedures are provided by manufacturer.

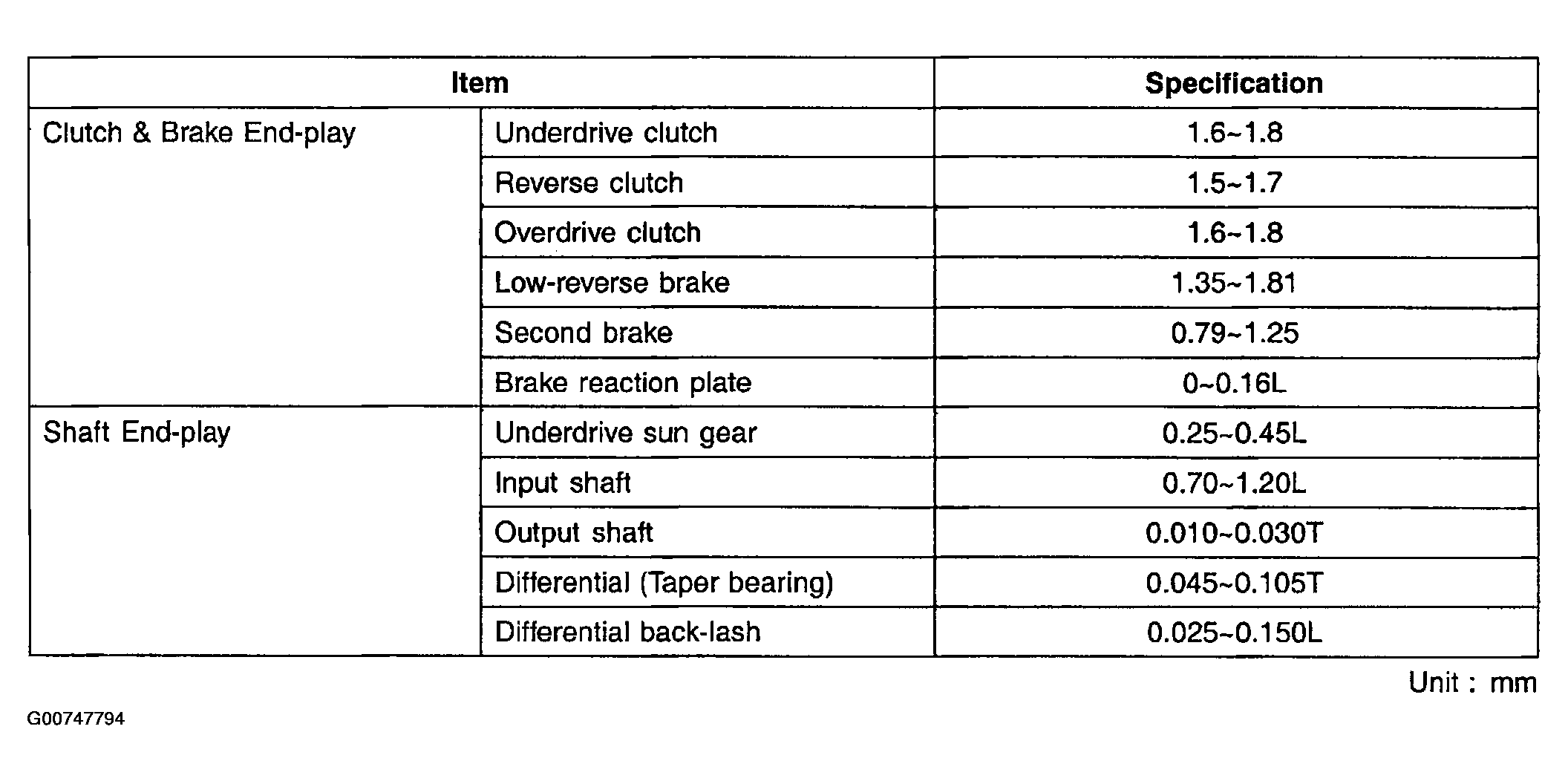

Fig 1: Automatic Transaxle End Play Specification Table

Courtesy of HYUNDAI MOTOR CO.
