Auto Light Unit

Remove the auto light unit (A) from the center support bracket left side.

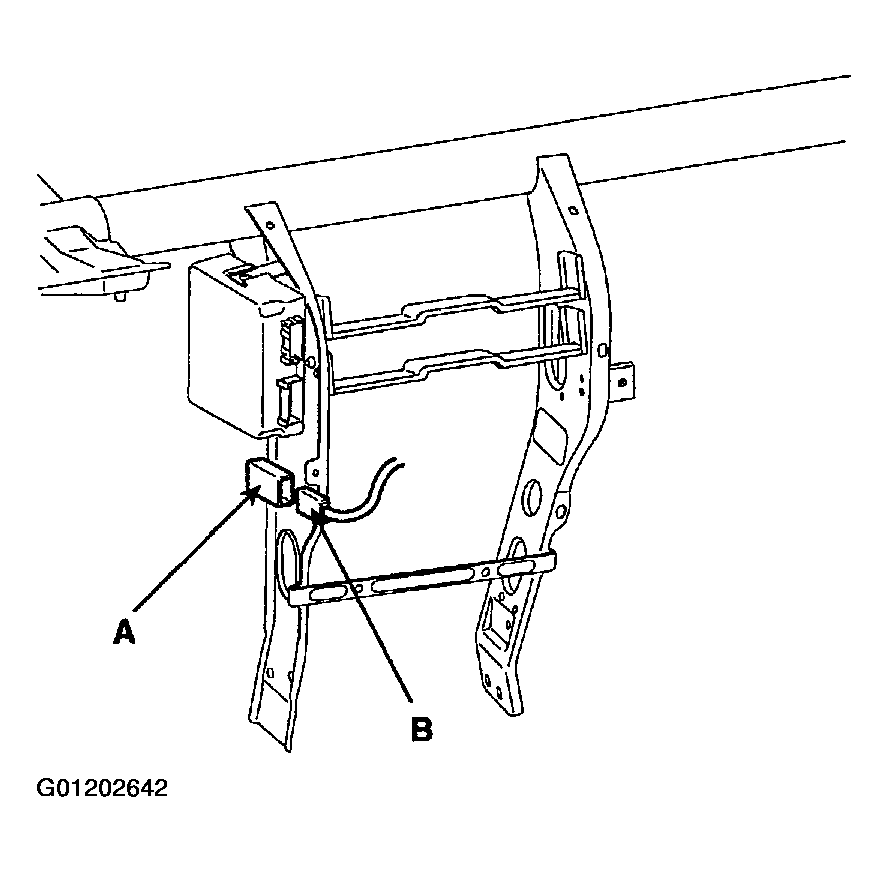

Fig 1: Identifying Auto Light Unit Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the 8P connector (B) from the auto light unit then inspect the connector on the wire harness side, as shown in the chart.

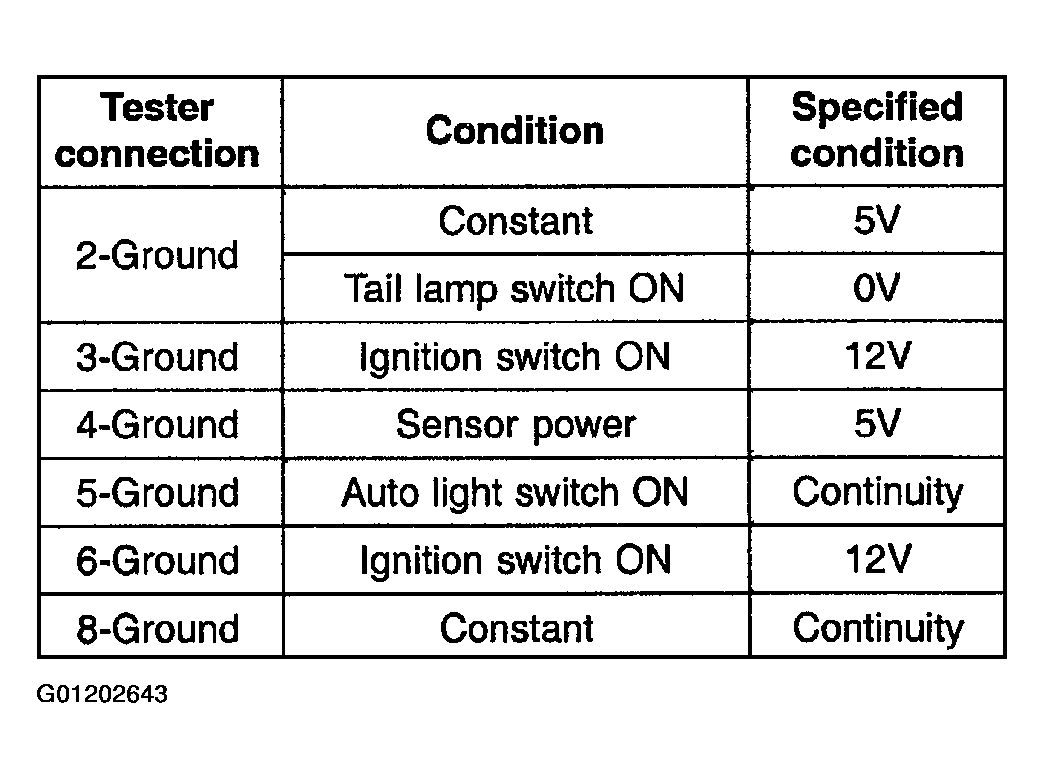

Fig 2: Auto Light Unit Circuit Testing Specification Table
Courtesy of HYUNDAI MOTOR CO.
If the circuit is not as specified, inspect the circuits connected to other parts.
