ETACS Module Input Signal Test: Notes

Disconnect the wire connector(B) from the ETACS module(A).
Inspect the connector(B) on wire harness side as shown in the below.

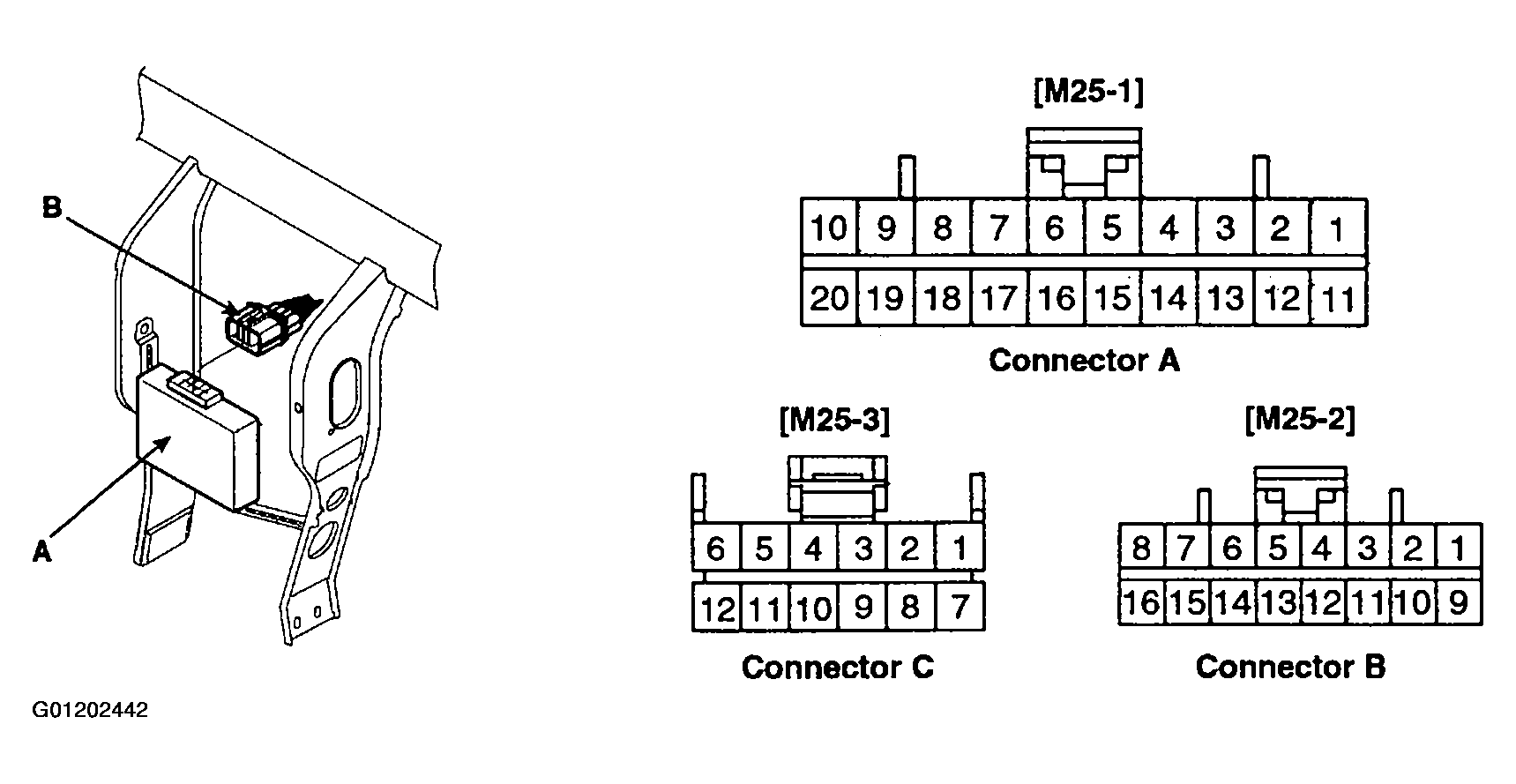

Fig 1: View Of ETACS Connectors & Terminals
Courtesy of HYUNDAI MOTOR CO.

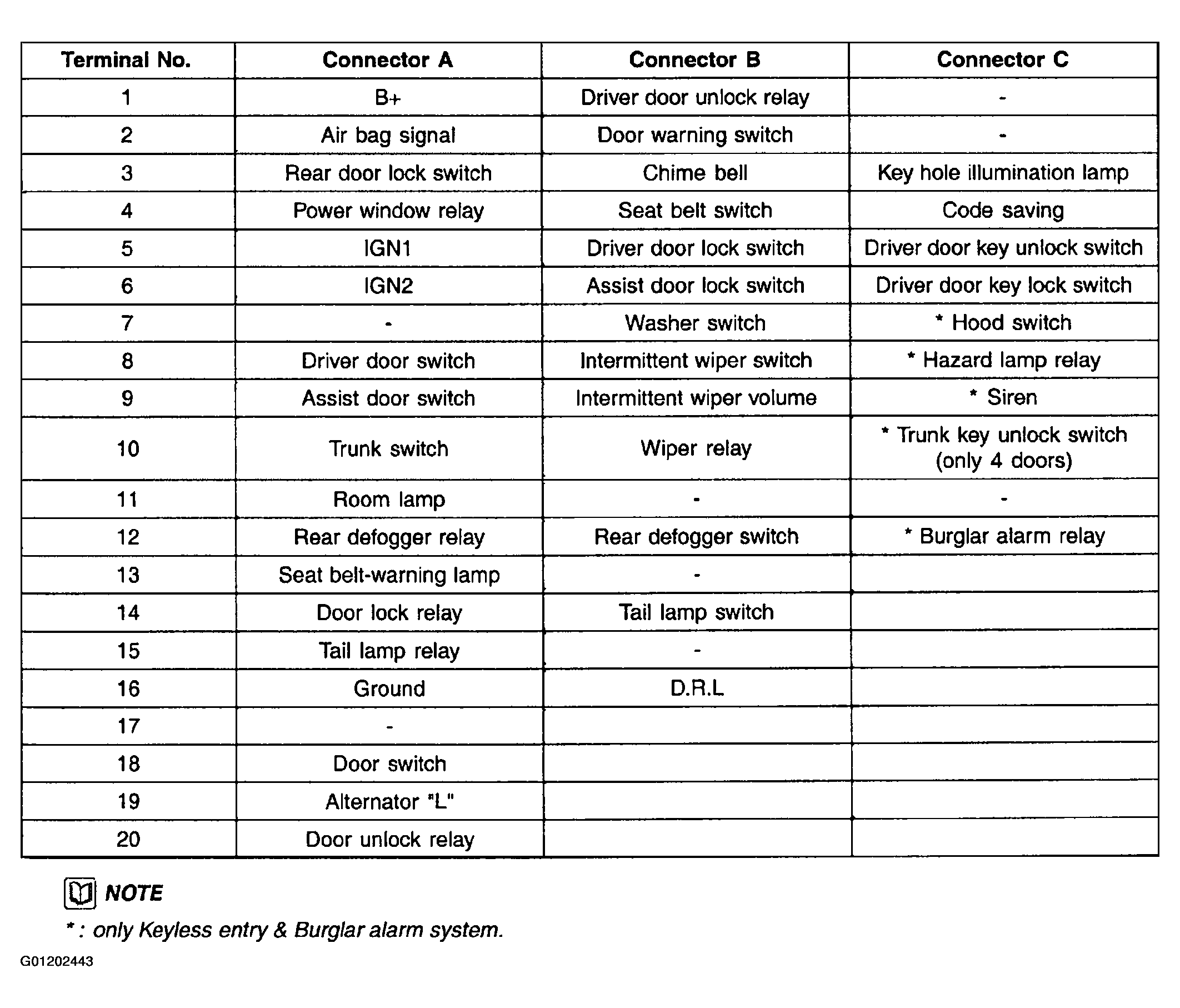

Fig 2: Identifying ETACS Connectors & Terminals
Courtesy of HYUNDAI MOTOR CO.

NOTE: *: only Keyless entry & Burglar alarm system.
