Circuit Diagram

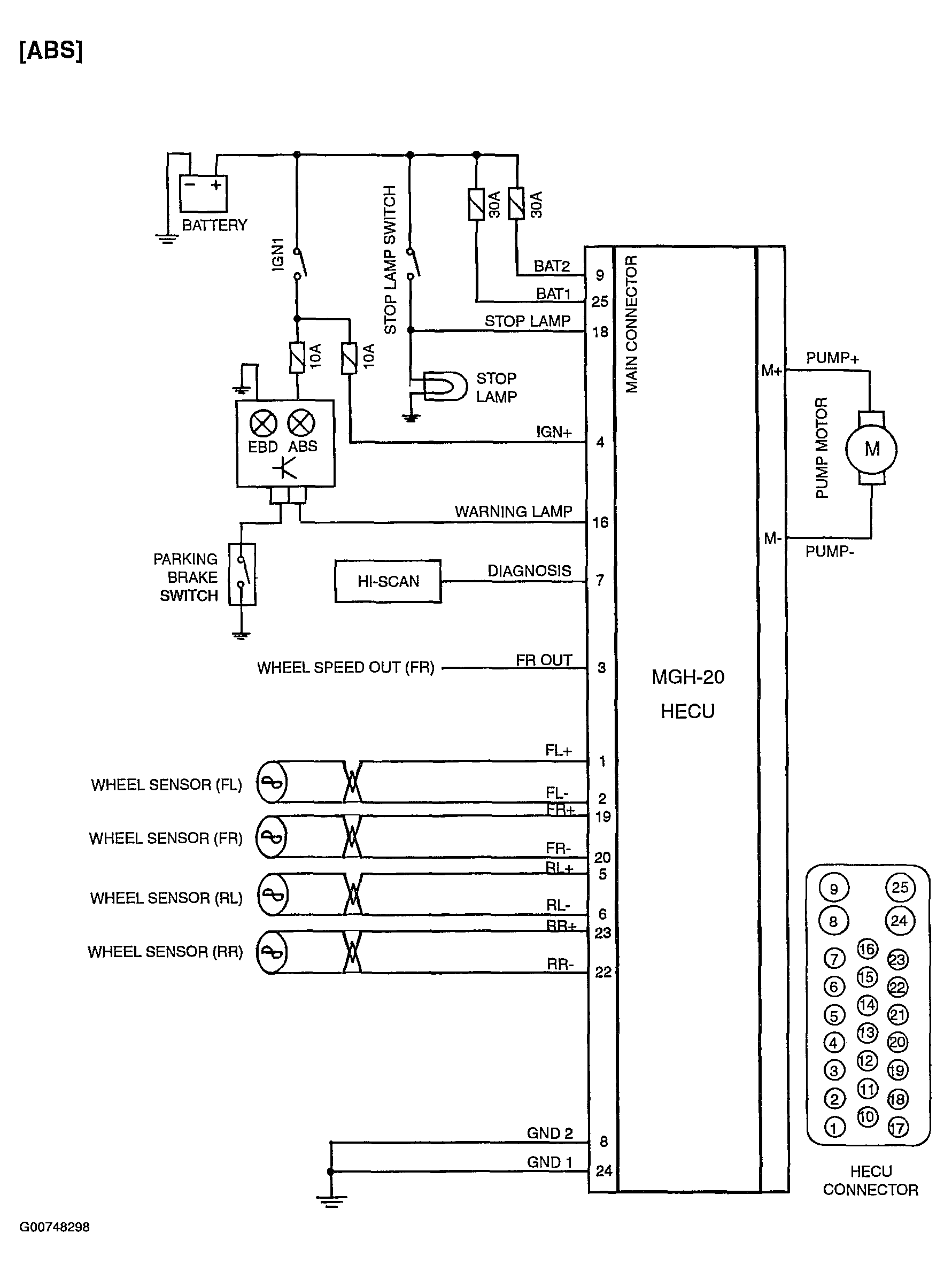

Fig 1: ABS Circuit Diagram
G00748298Courtesy of HYUNDAI MOTOR CO.

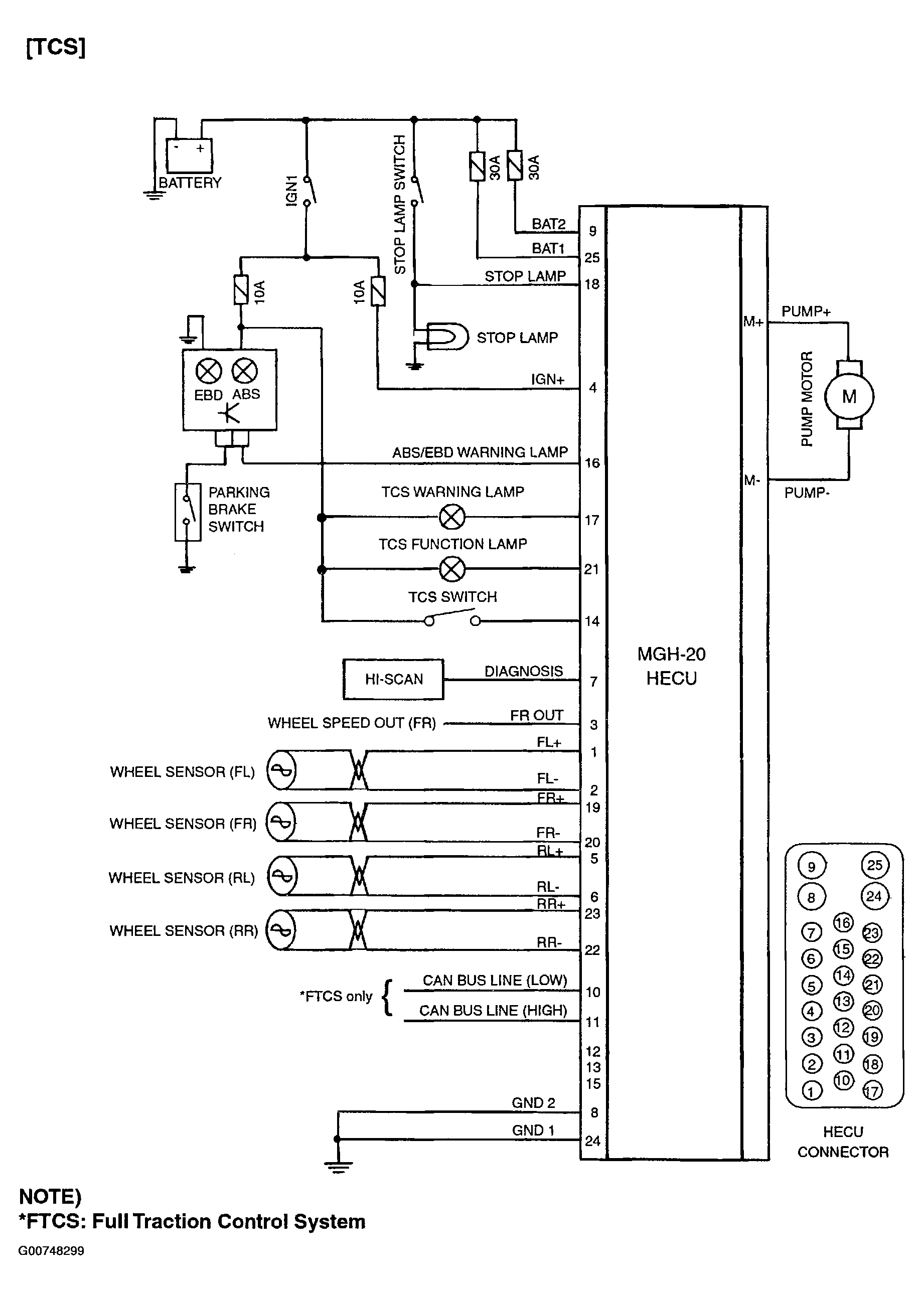

Fig 2: TCS Circuit Diagram
G00748299Courtesy of HYUNDAI MOTOR CO.
