Anti-Lock Brake System: Components

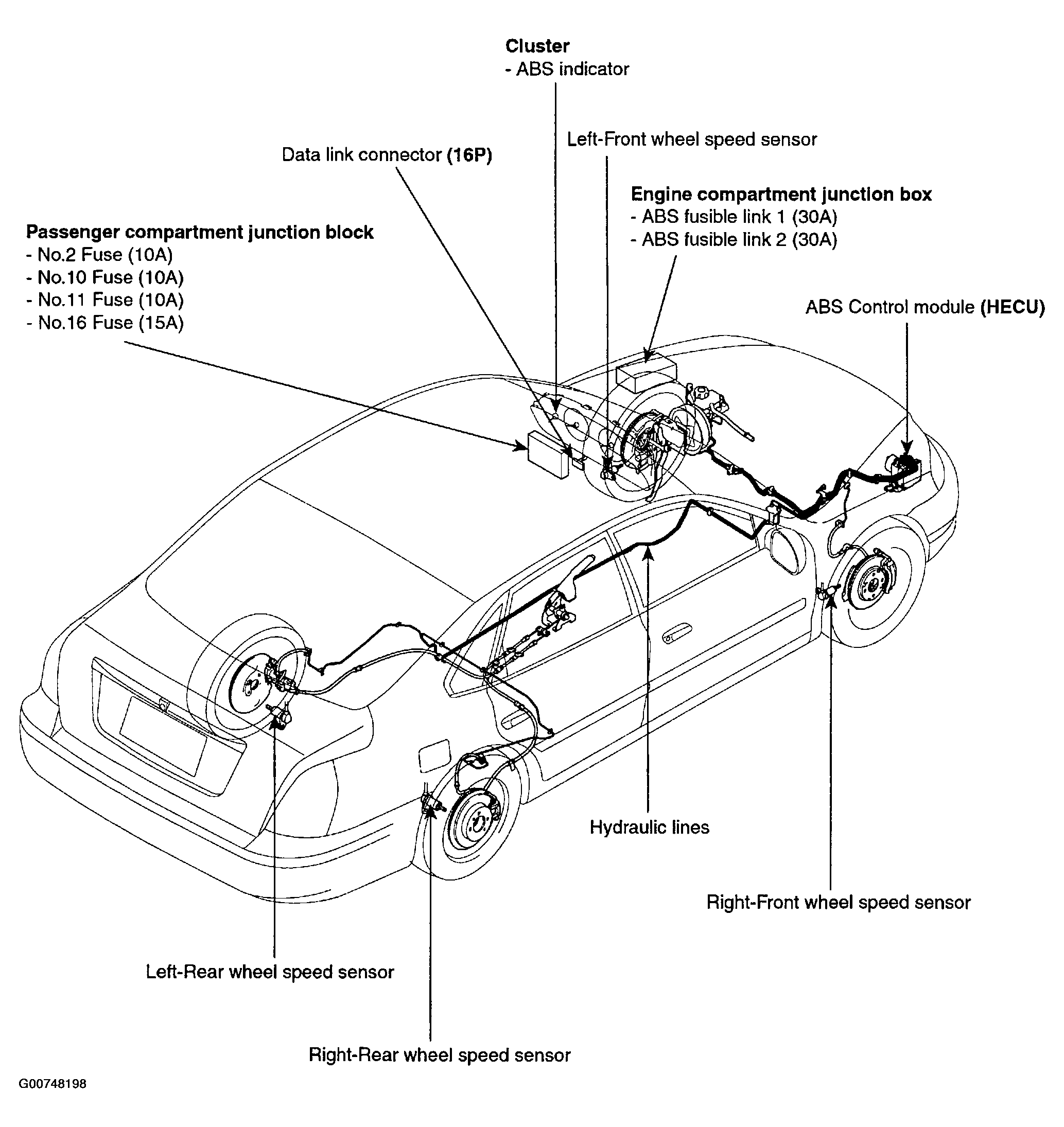

Fig 1: Locating ABS Components
G00748198Courtesy of HYUNDAI MOTOR CO.
