2. Check CCV Resistance

1. Turn ignition switch to OFF position and disconnect the CCV harness connector.
2. Measure resistance between terminals 1 and 2 of the CCV connector.

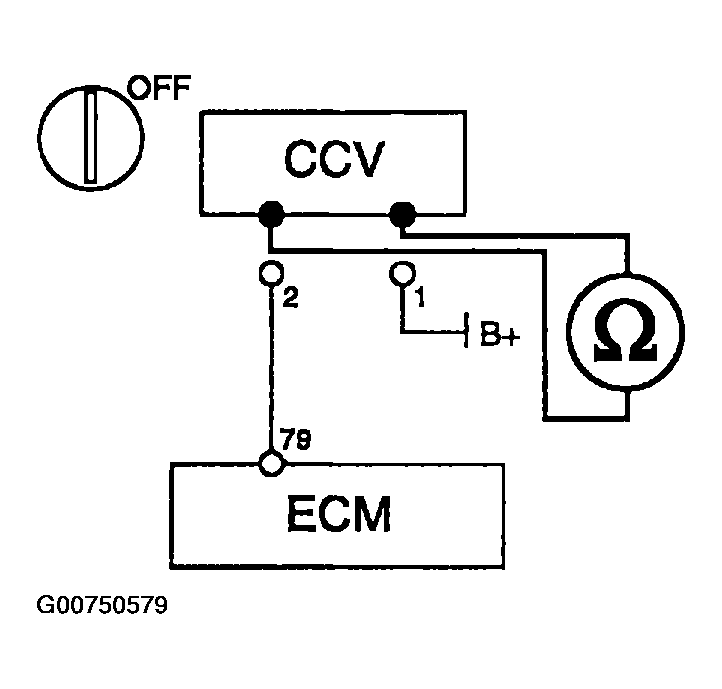

   Fig 1: Measuring CCV Resistance

   Courtesy of HYUNDAI MOTOR CO.
   • Specification: 23~26Ω at 20°C (68°F)

Is resistance within specification?

Yes: Go to next step.

No: Replace it.
