Key Interlock Device Installation

It is excepted that the ignition key may not be removed from the key cylinder due to misassembly of the key interlock cable. To prevent this problem, apply the following installation instructions when servicing.

1. Assembly of key interlock cable and ignition lock
   1. The ignition lock assembled to the steering column. Set the ignition lock to the lock position.
   2. Assemble the key interlock cable and the ignition lock with the set screw.
      Fig 1: Installing Key Interlock & Shift Lock Cables

      Courtesy of HYUNDAI MOTOR CO.
2. Assembly of key interlock cable and shift lever
   1. Set the shift lever to the "P" position.
   2. After setting the key interlock cable as shown in the Fig 2 , temporarily assemble the key interlock cable with a M8 nut just enough to move the key interlock cable plate by its spring force.

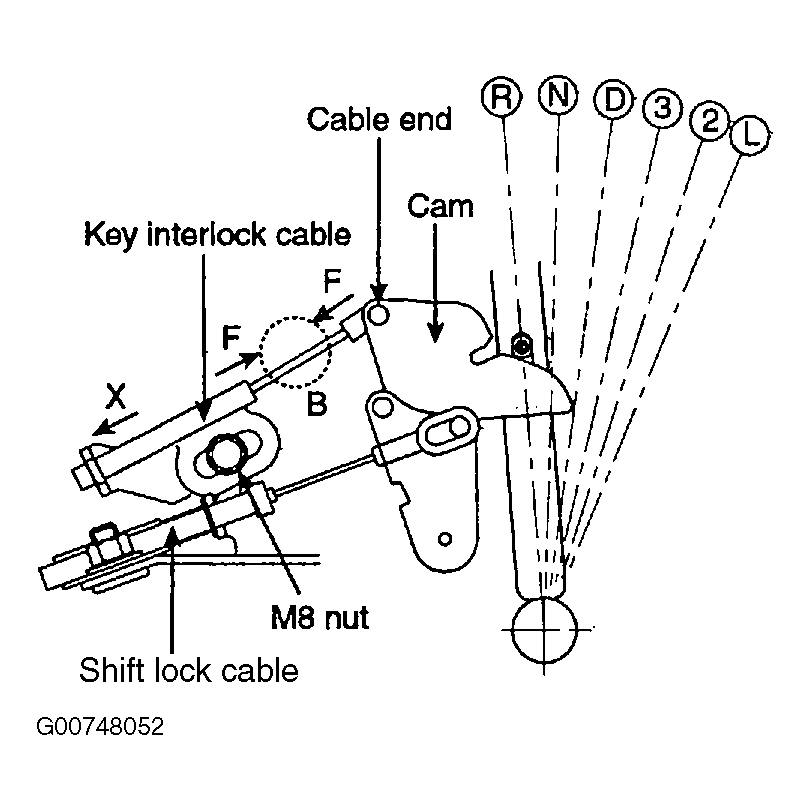

      Fig 2: Adjusting Key Interlock & Shift Lock Cables

      Courtesy of HYUNDAI MOTOR CO.
   3. Holding the cable and the key interlock cable plate, push them into the direction of "F" so as not to create any bending or slack on the "B" point of the key interlock cable.
      NOTE: Do not pull the cable in the direction of "X" to remove the slack. This may cause key not to remove from the key cylinder.
   4. Tighten the key interlock cable with a M8 nut.
