Automatic Transaxle Shift Control: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the console (A) mounting screws (6EA).

Fig 1: Removing Console Mounting Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the console (A).

Fig 2: Removing Console
Courtesy of HYUNDAI MOTOR CO.

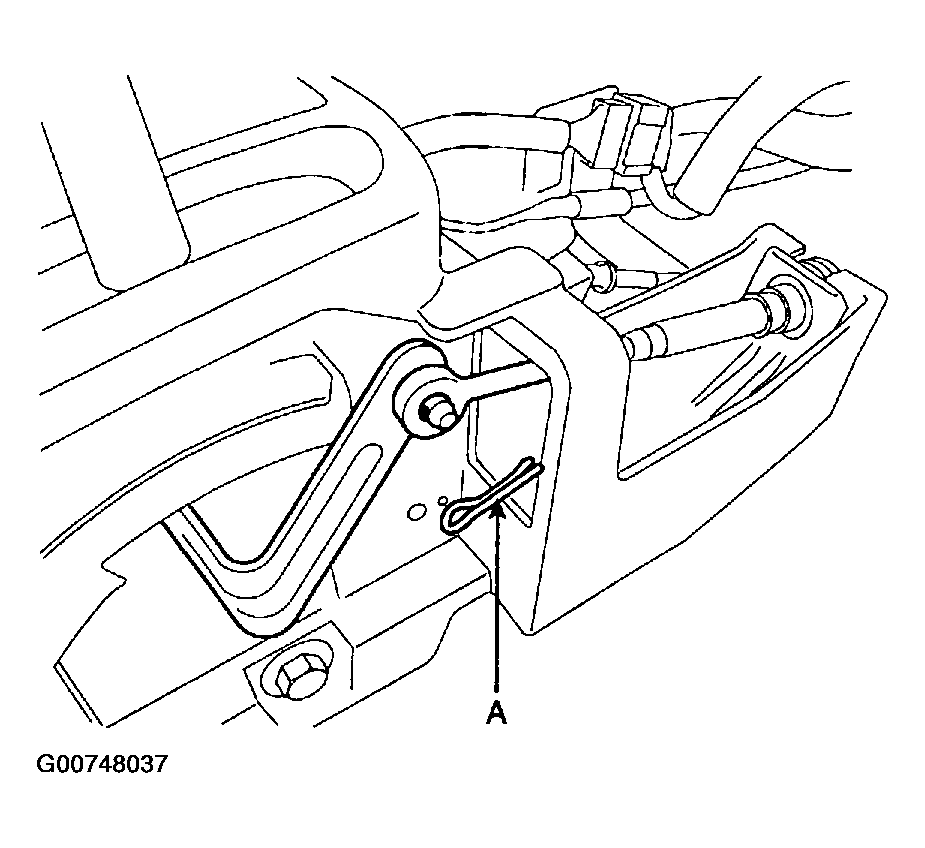

Remove the control cable pin (A).

Fig 3: Removing Control Cable Pin
Courtesy of HYUNDAI MOTOR CO.

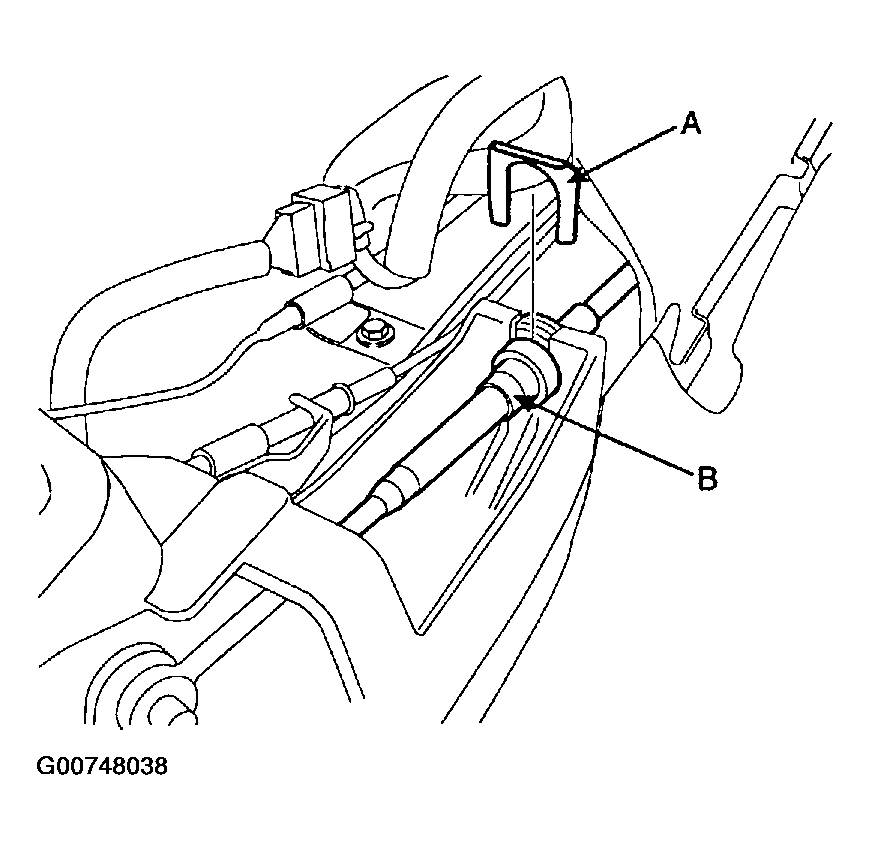

Remove the clip (A) of the control cable (B) by pressing it with the driver.

Fig 4: Removing Control Cable Clip
Courtesy of HYUNDAI MOTOR CO.
Separate the shift lock cable (A) from the P-lock cam (B).

Fig 5: Separating Shift Lock Cable Form P-Lock Cam
Courtesy of HYUNDAI MOTOR CO.

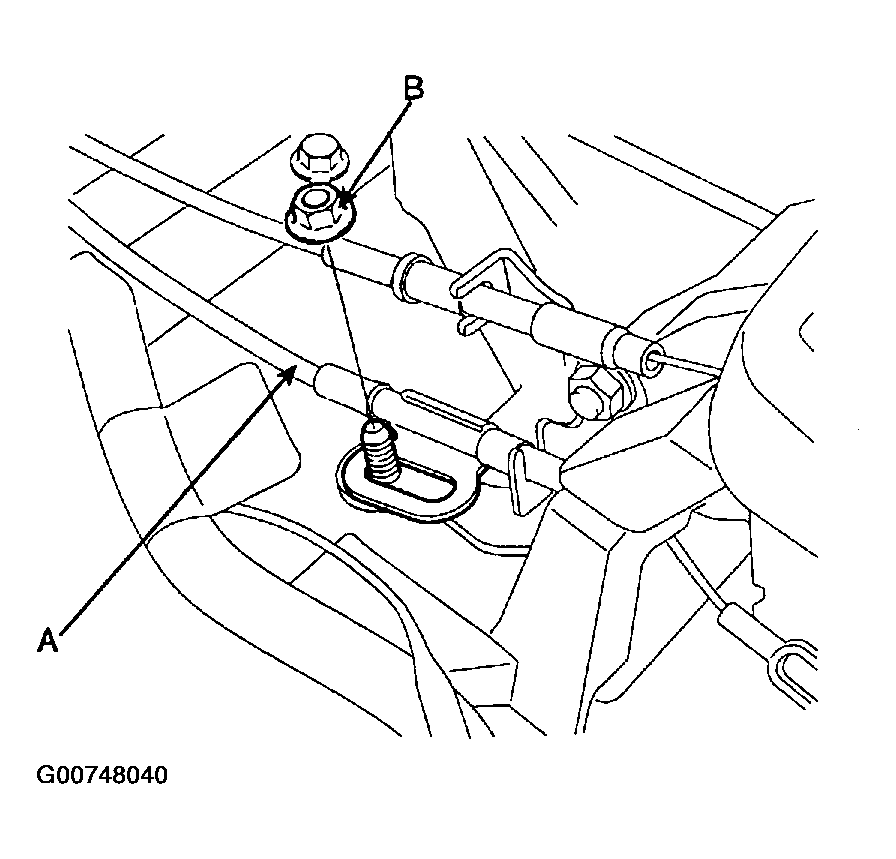

Remove the shift lock cable (A) mounting nut (B).

Fig 6: Removing Shift Lock Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the inter lock cable (A) from the key-lock cam (B).

Fig 7: Removing Inter Lock Cable From Key-Lock Cam
Courtesy of HYUNDAI MOTOR CO.

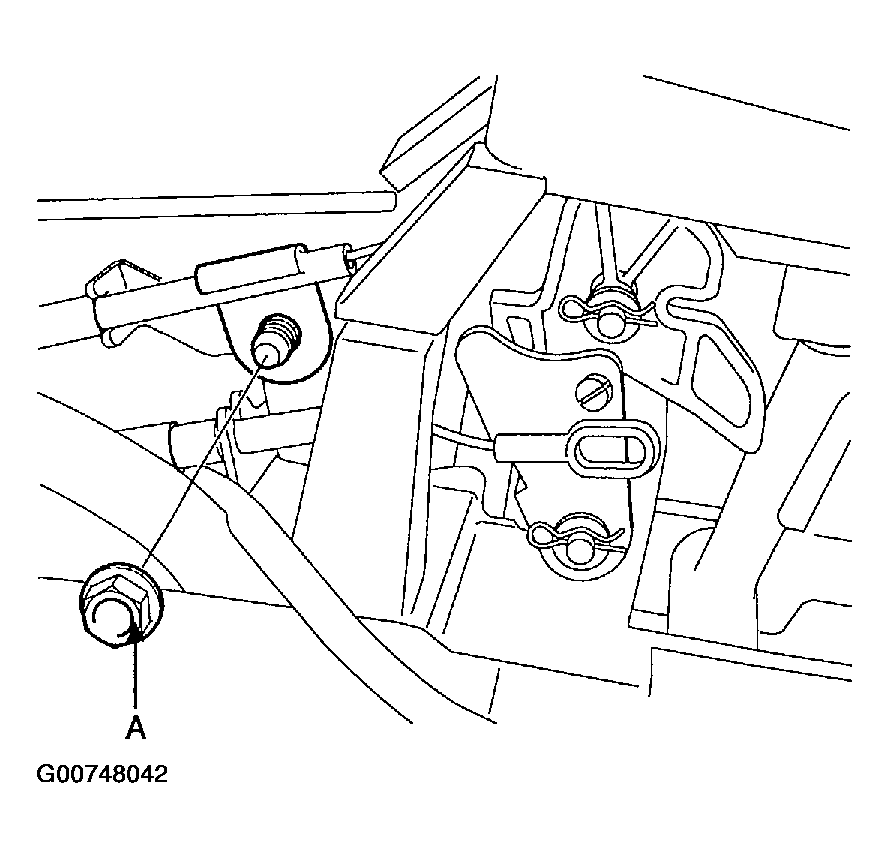

Remove the inter lock cable mounting bolt (A).

Fig 8: Removing Inter Lock Cable Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the mounting bolts (A) of the cable of the lower dashboard side to remove the cable.

Fig 9: Removing Control Cable Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the indicator connector (A).

Fig 10: Removing Indicator Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever mounting bracket bolts (A) (4EA).

Fig 11: Removing Shift Lever Mounting Bracket
Courtesy of HYUNDAI MOTOR CO.
