Automatic Transaxle: Components

WARNING: This page is about a different variant/trim than selected.

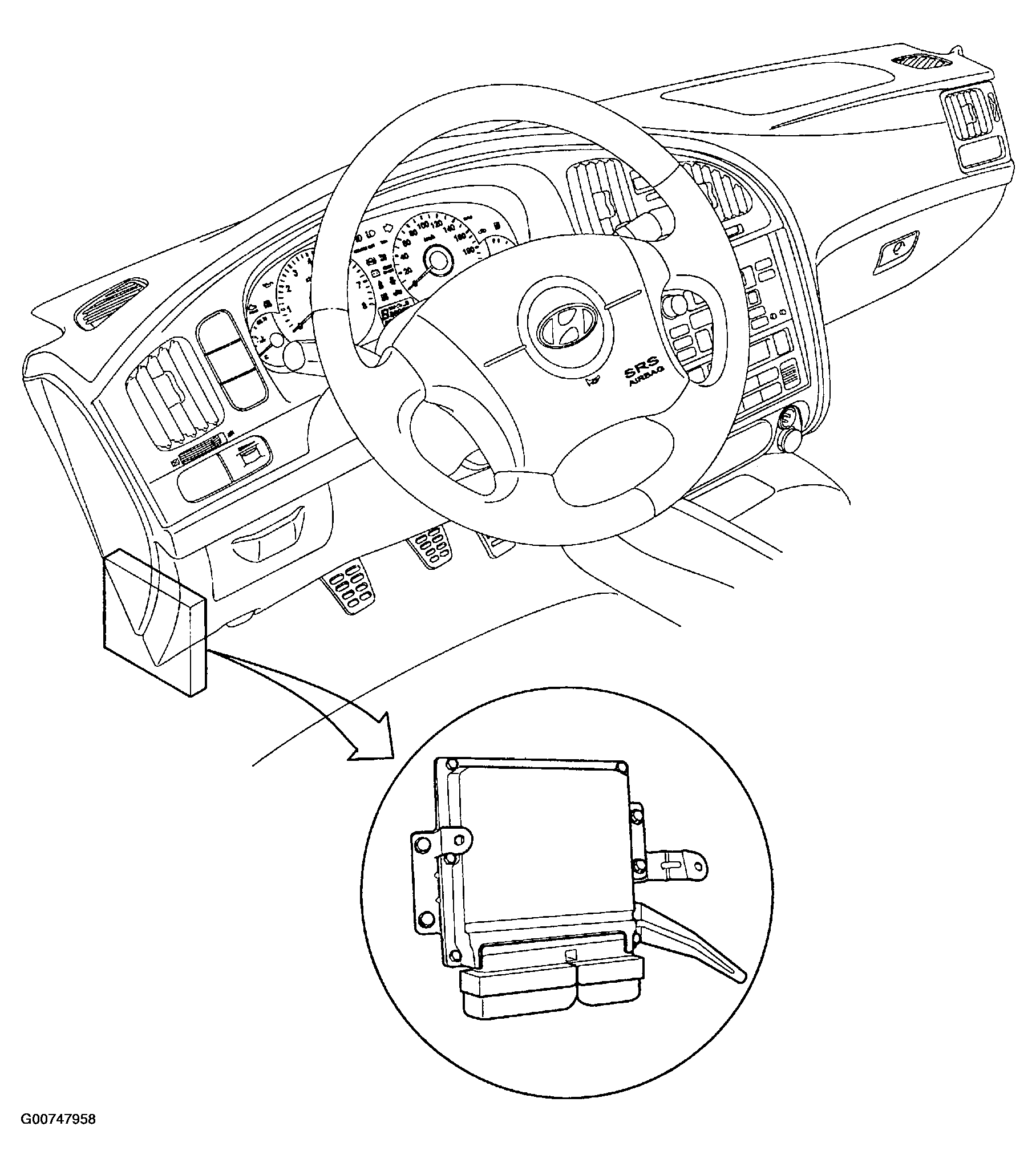

Fig 1: Identifying & Locating PCM
G00747958Courtesy of HYUNDAI MOTOR CO.

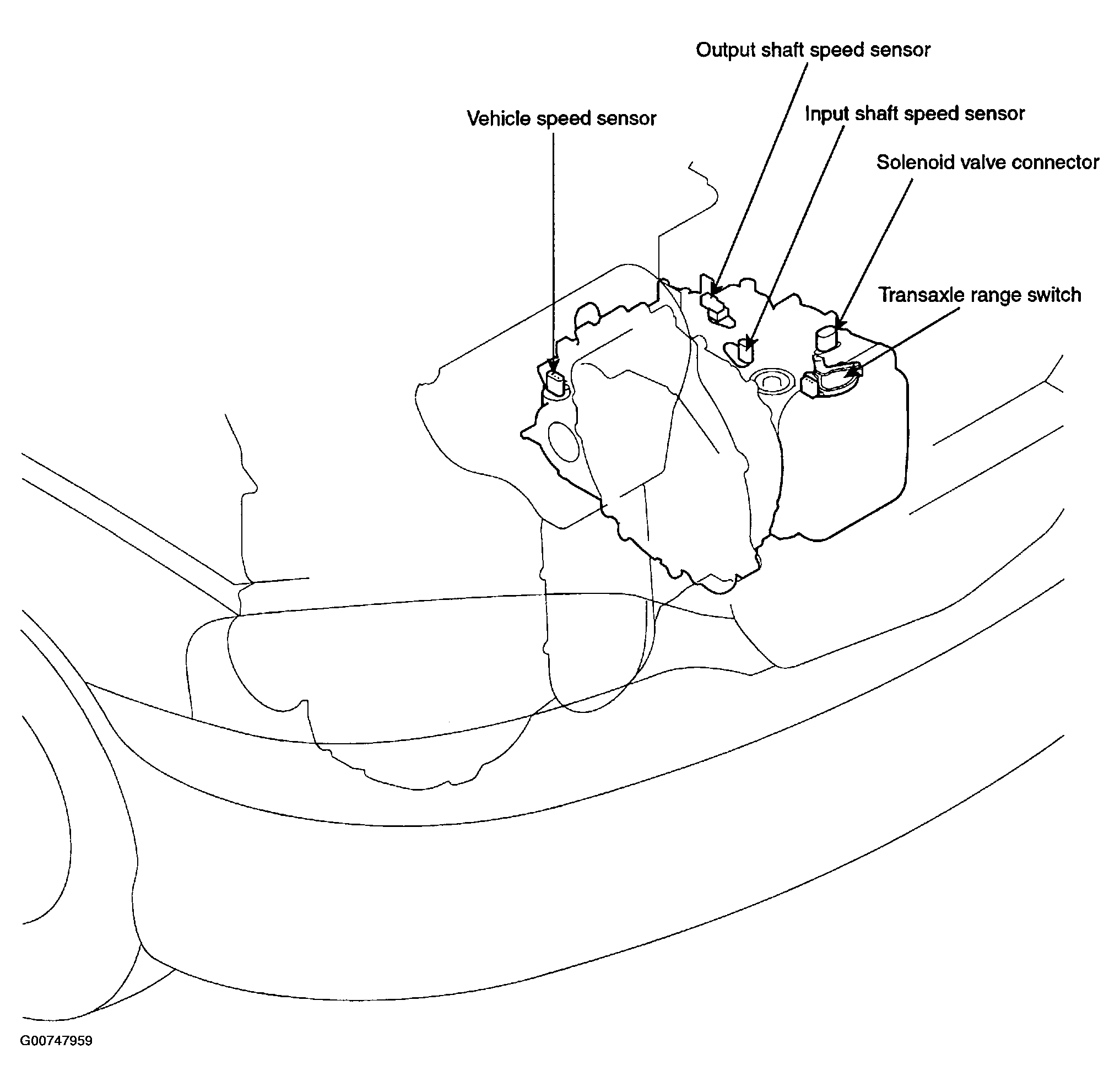

Fig 2: Identifying & Locating Sensors & Solenoid Valve Connector
G00747959Courtesy of HYUNDAI MOTOR CO.

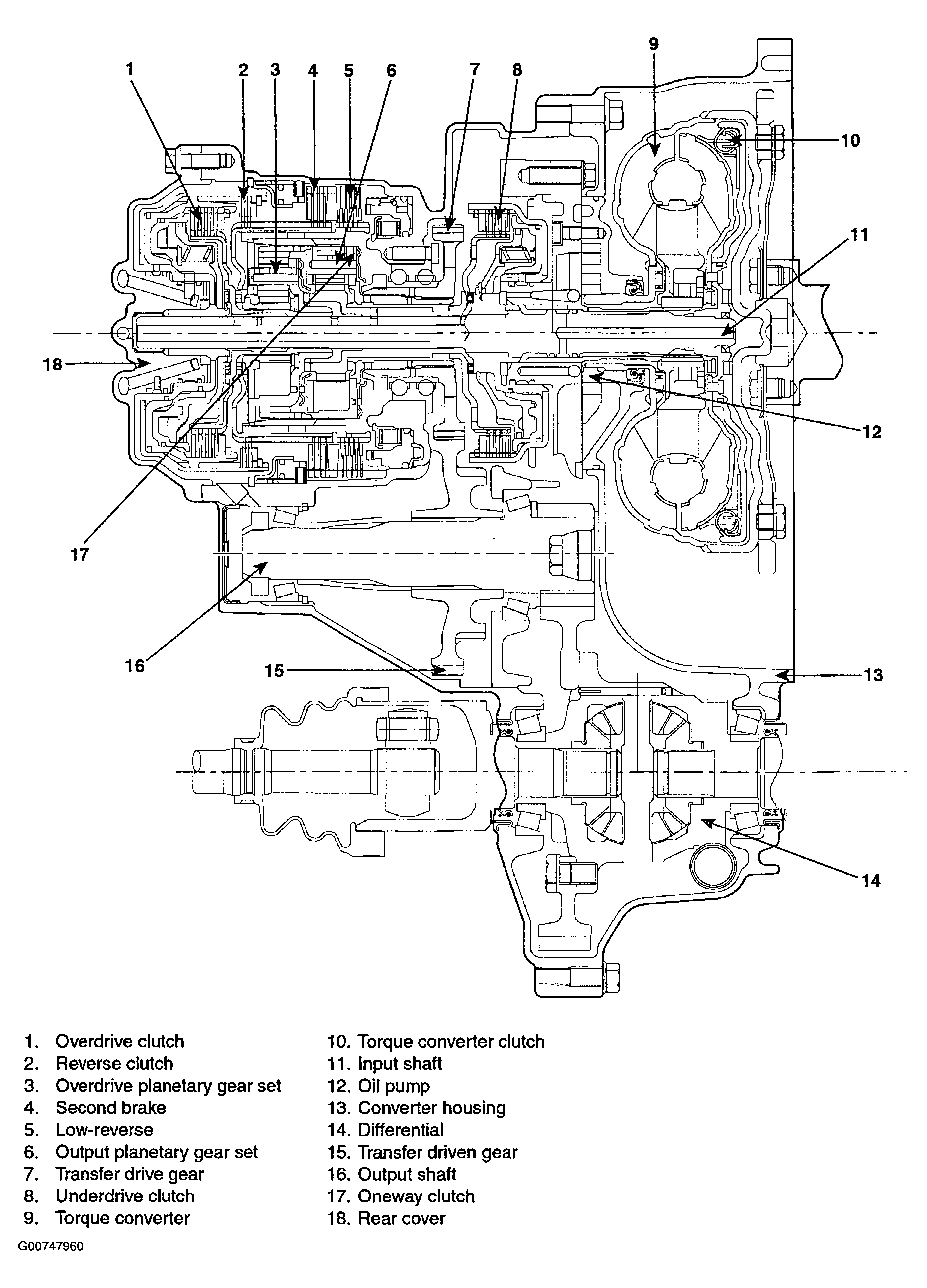

Fig 3: Identifying & Locating Internal Transaxle Components
G00747960Courtesy of HYUNDAI MOTOR CO.
