In/Output Shaft Speed Sensor Check

WARNING: This page is about a different variant/trim than selected.

Check the waveform by the scan tool

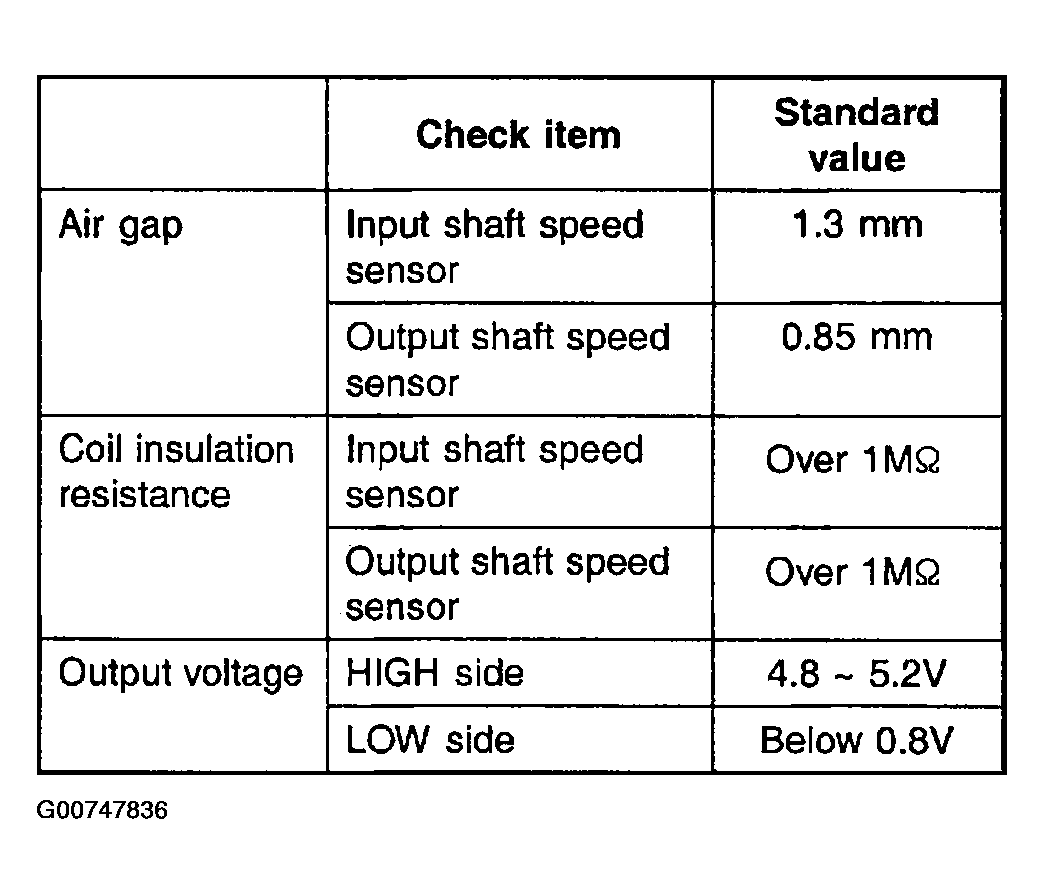

Fig 1: In/Output Shaft Speed Sensor Specification Table
G00747836Courtesy of HYUNDAI MOTOR CO.
