Solenoid Valve Check

Remove the valve body cover.
Disconnect the connectors of each solenoid valve.

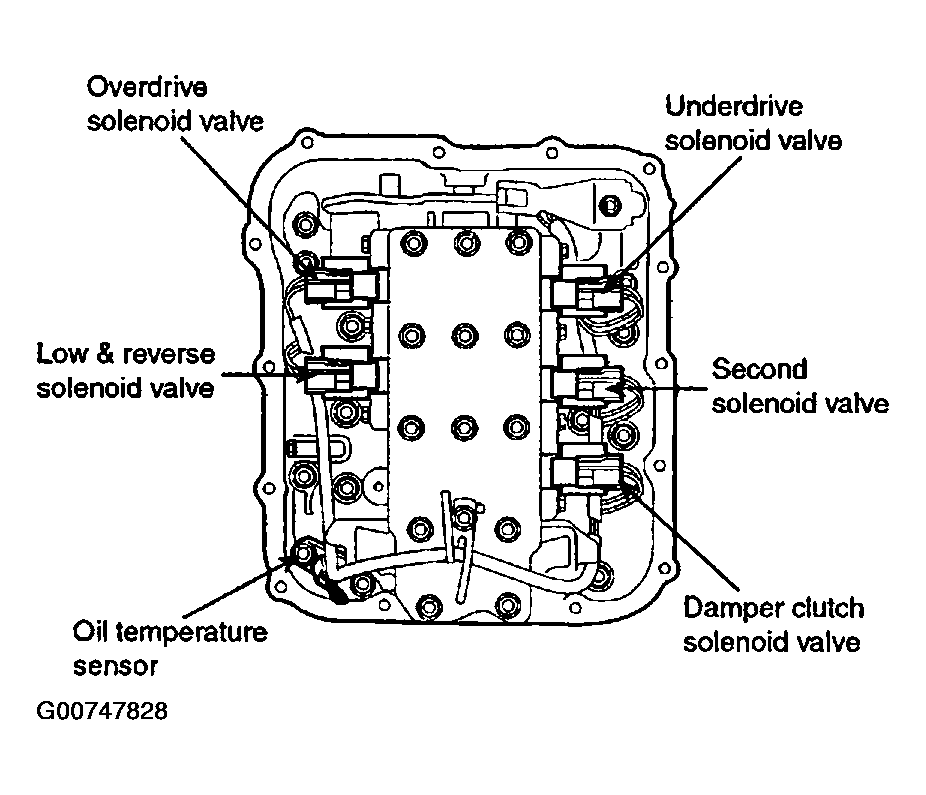

Fig 1: Locating Solenoid Valves
Courtesy of HYUNDAI MOTOR CO.
Measure the resistance between terminals 1 and 2 of each solenoid valve.
STANDARD VALUE :

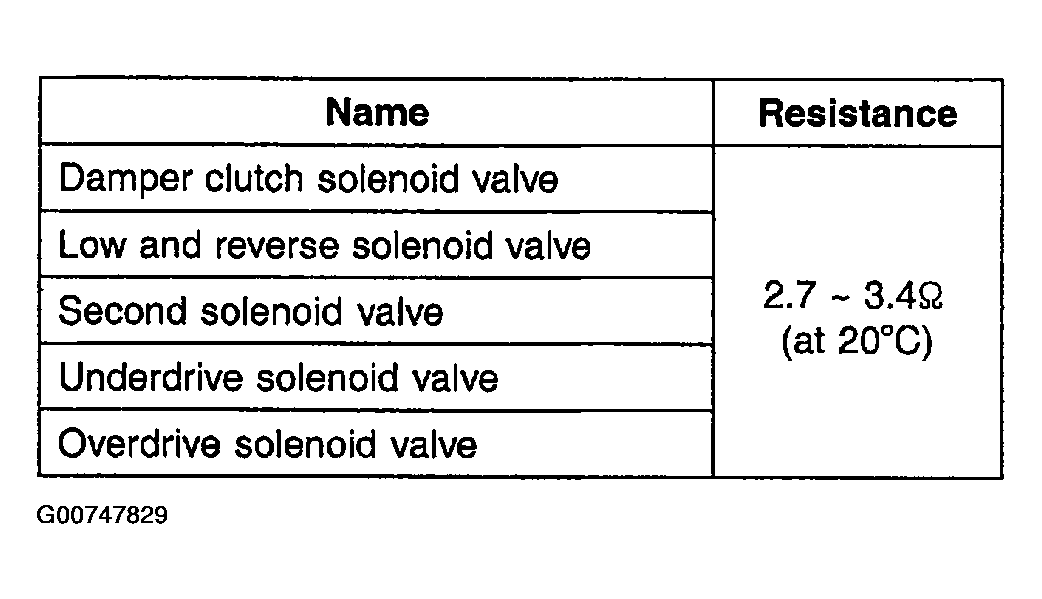

Fig 2: Solenoid Valve Specifications
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Measuring Solenoid Valve Resistance
Courtesy of HYUNDAI MOTOR CO.
If the resistance is outside the standard value, replace the solenoid valve.
NOTE: Resistance of the solenoid valve connector.

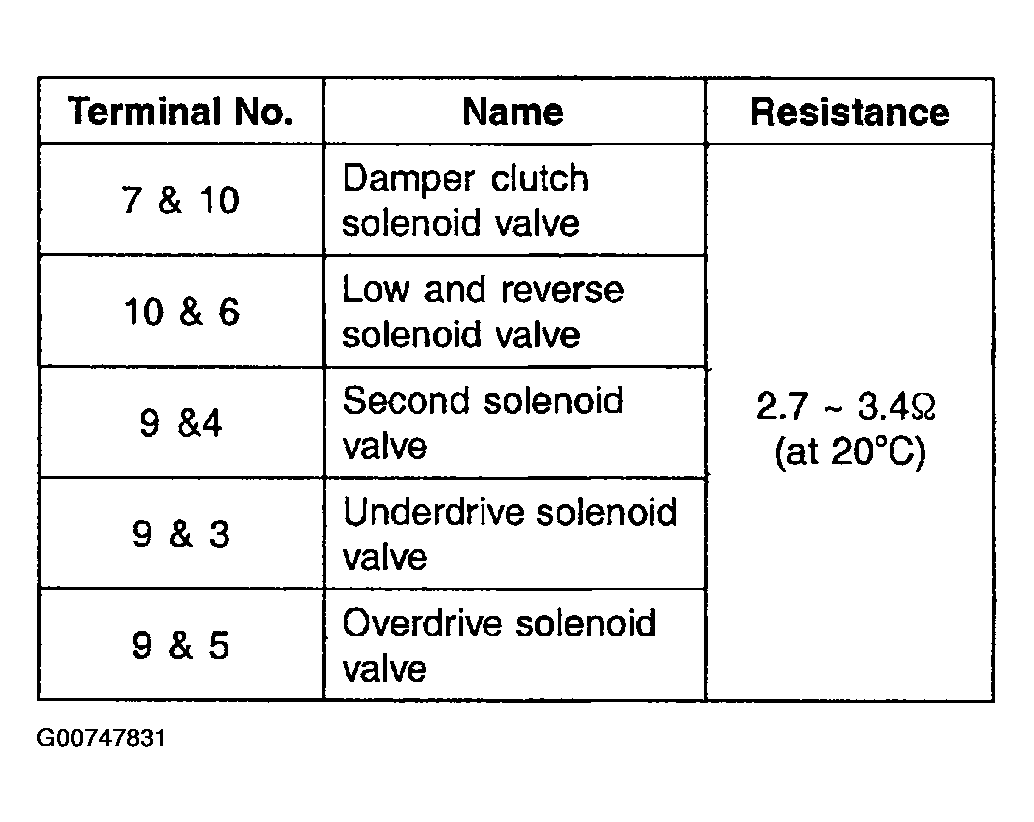

Fig 4: Identifying Solenoid Valve Terminals
Courtesy of HYUNDAI MOTOR CO.

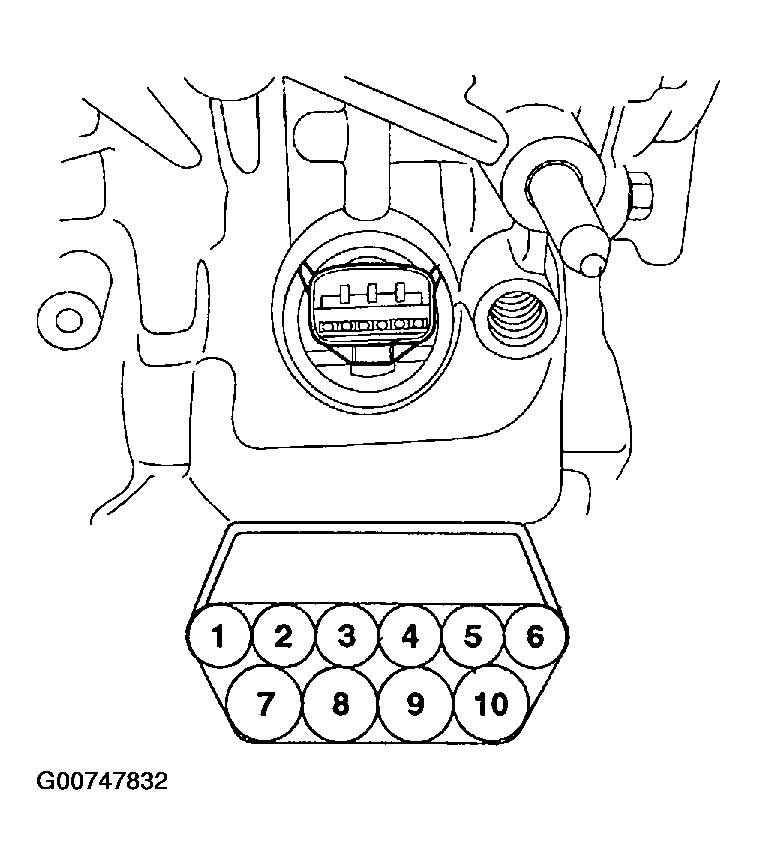

Fig 5: Identifying Solenoid Valve Connector Terminal Locations
Courtesy of HYUNDAI MOTOR CO.
