Crankcase Emission Control System: Components

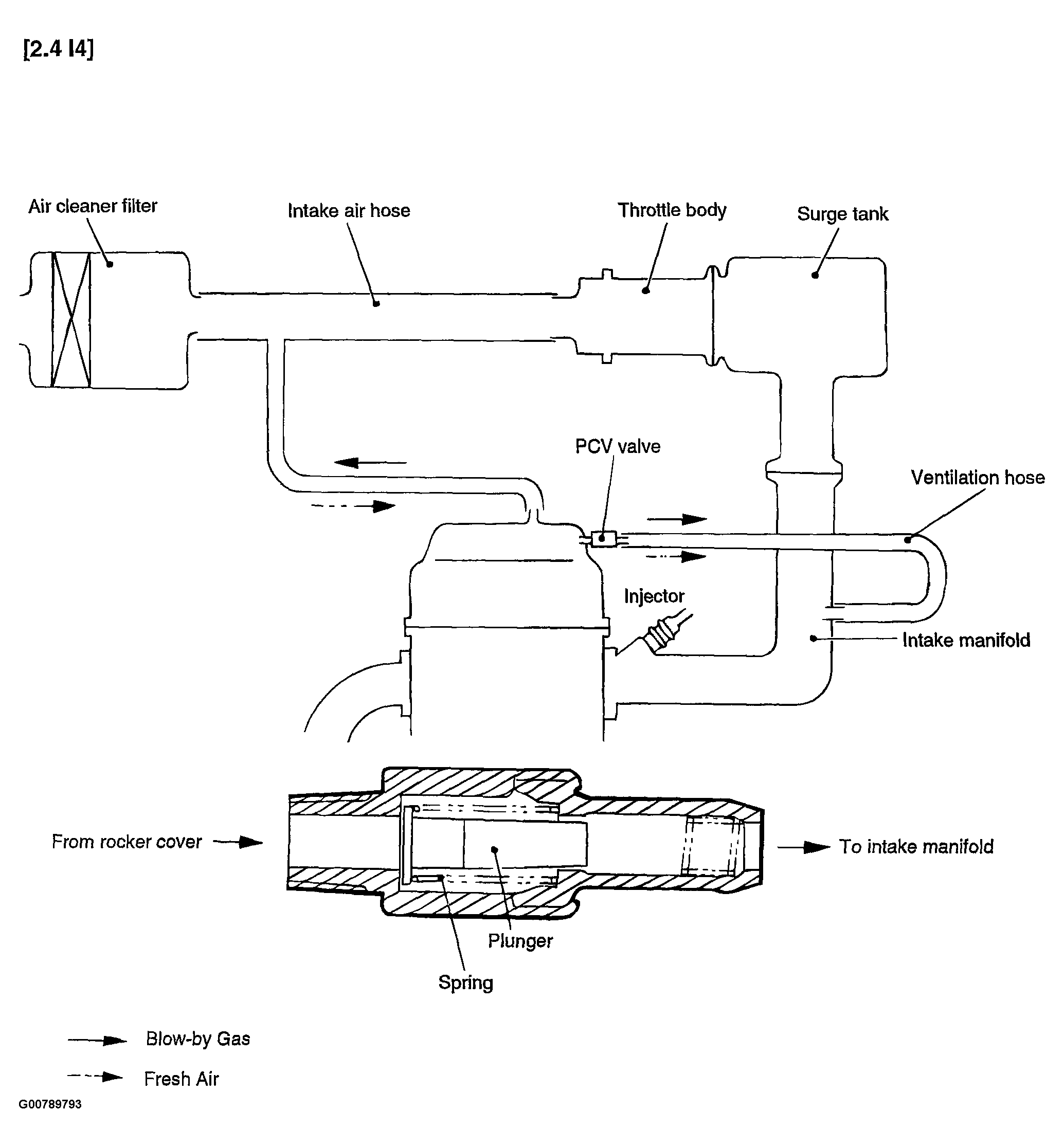

Fig 1: Crankcase Emission Control System Components (2.4L)
G00789793Courtesy of HYUNDAI MOTOR CO.

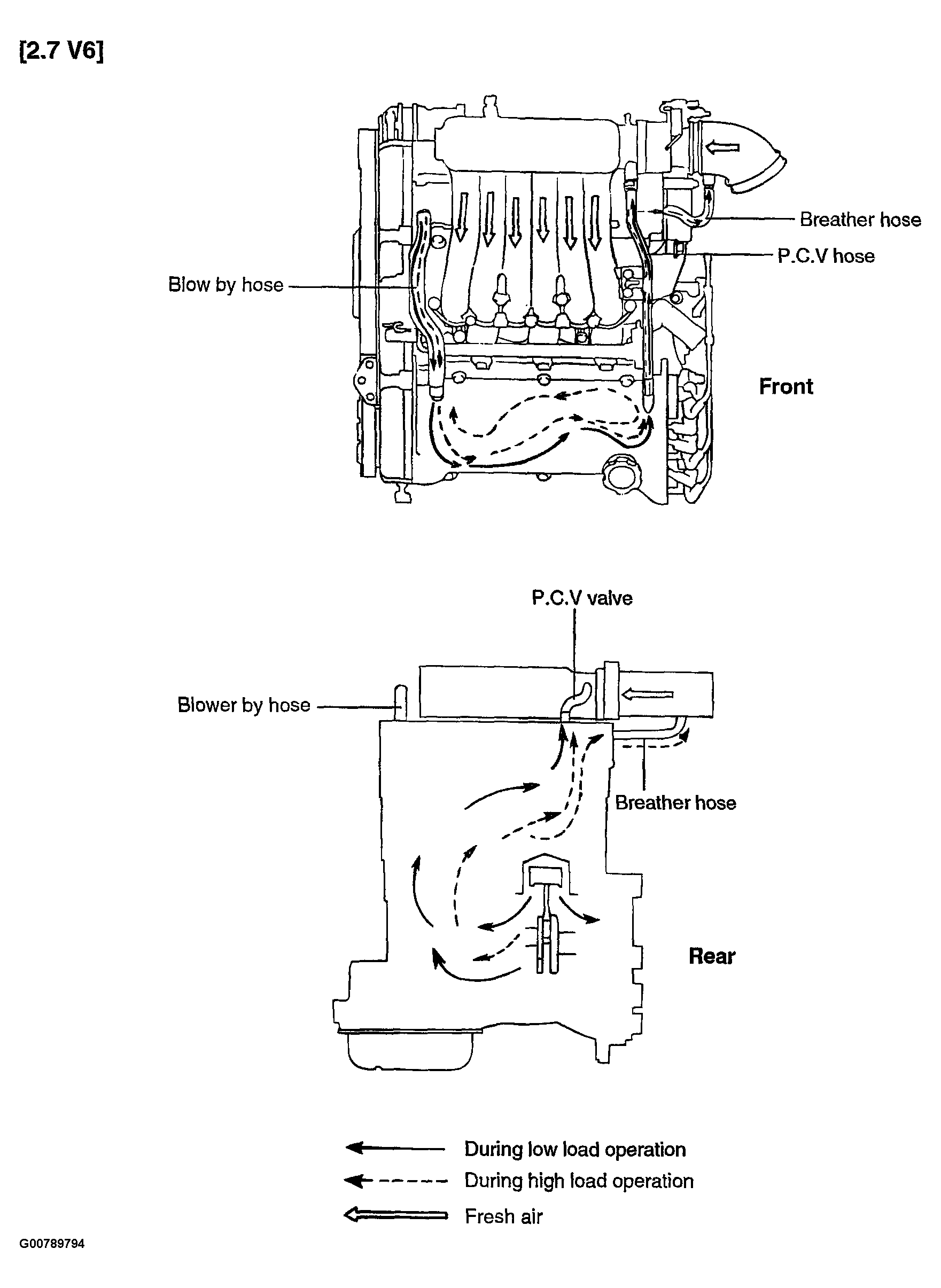

Fig 2: Crankcase Emission Control System Components (2.7L)
G00789794Courtesy of HYUNDAI MOTOR CO.
