Evaporative Emission Control System: Components

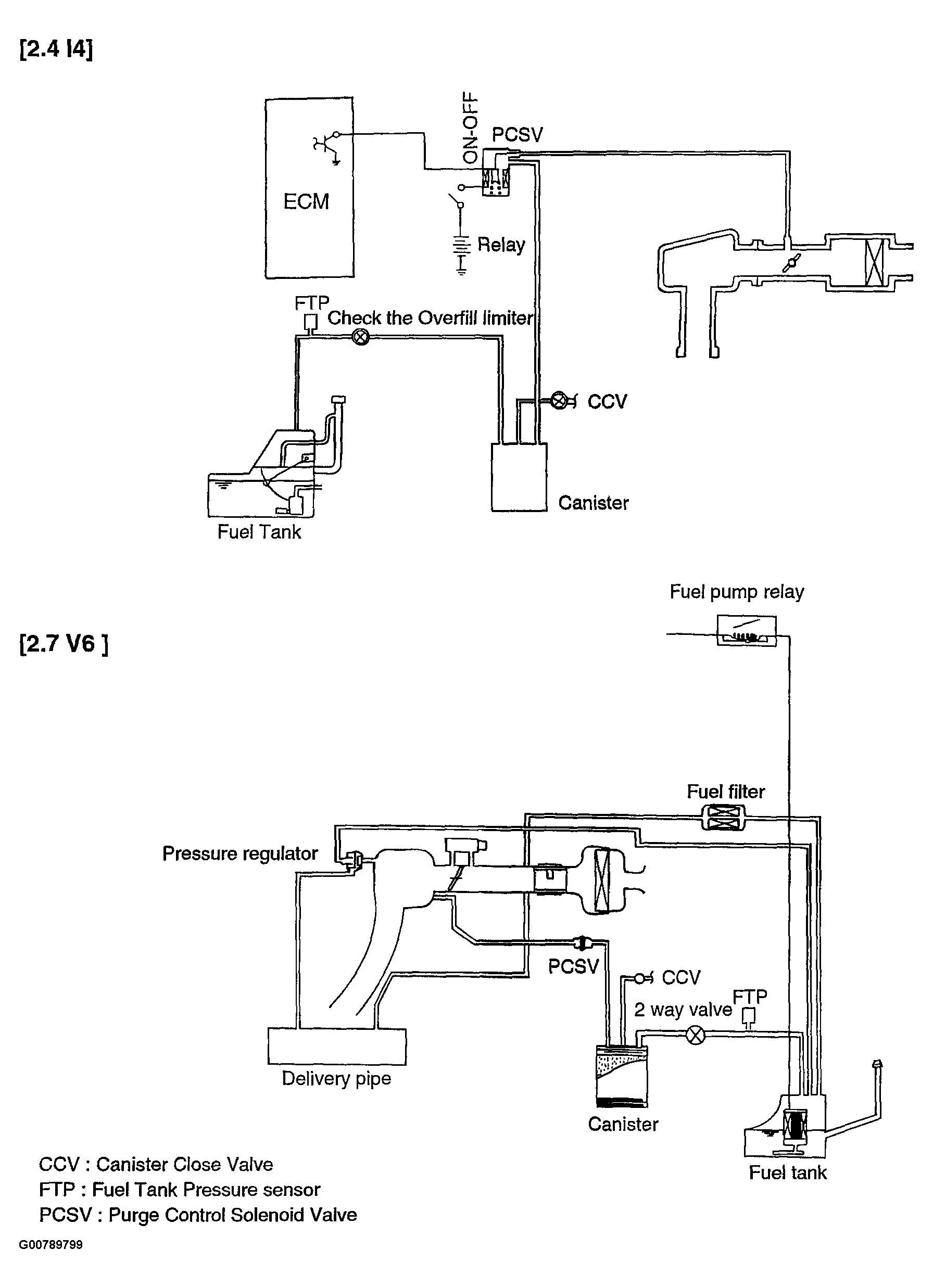

Fig 1: Evaporative Emission Control System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
