Main Moving System: Crankshaft: Components

WARNING: This page is about a different variant/trim than selected.

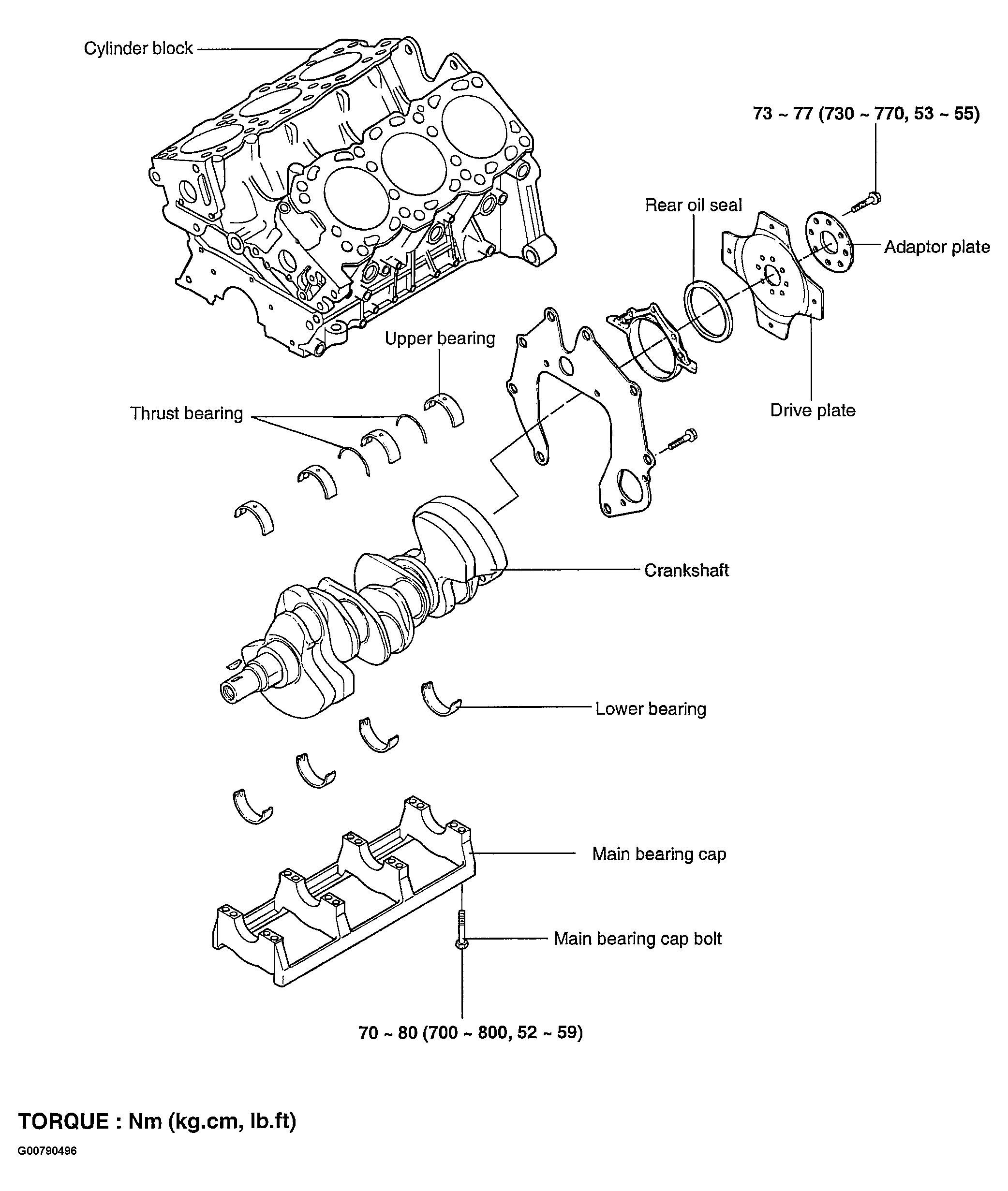

Fig 1: Crankshaft Components
G00790496Courtesy of HYUNDAI MOTOR CO.
