DTC P1723: A/T Control Relay System

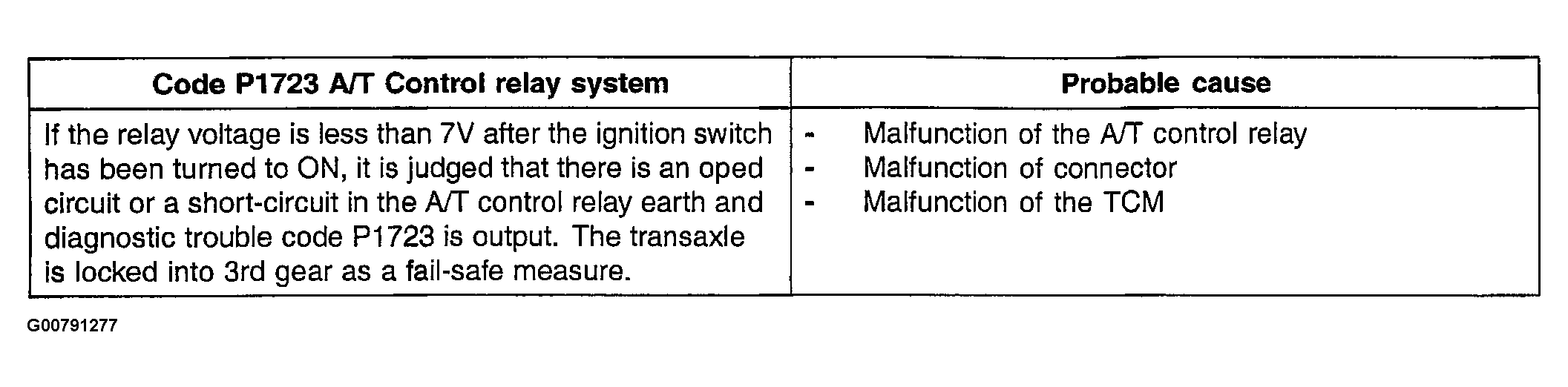

Fig 1: DTC P1723: A/T Control Relay System Definitions & Probable Causes
G00791277Courtesy of HYUNDAI MOTOR CO.

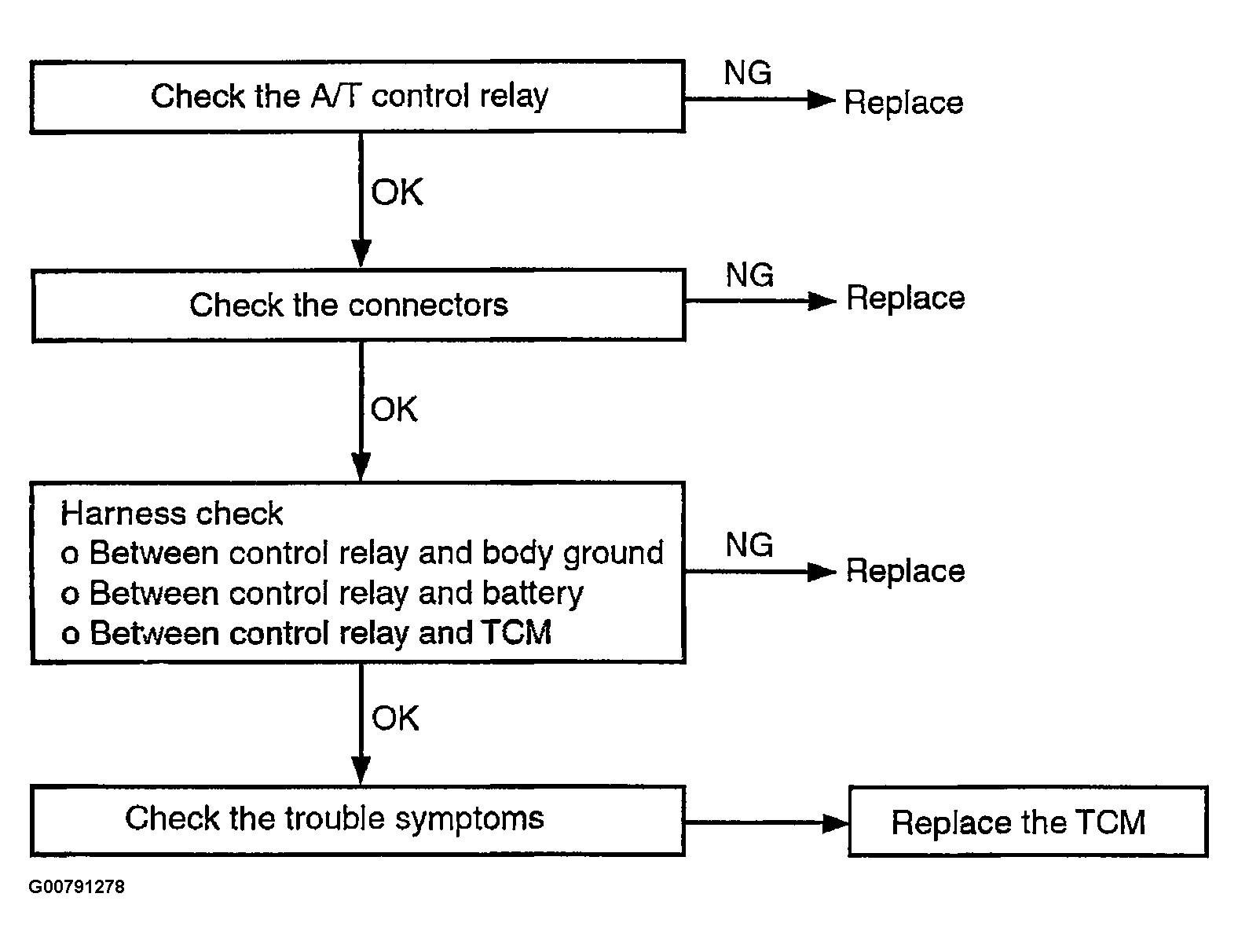

Fig 2: DTC P1723: A/T Control Relay System Diagnostic Flow Chart
G00791278Courtesy of HYUNDAI MOTOR CO.
