Front Strut Assembly: Components

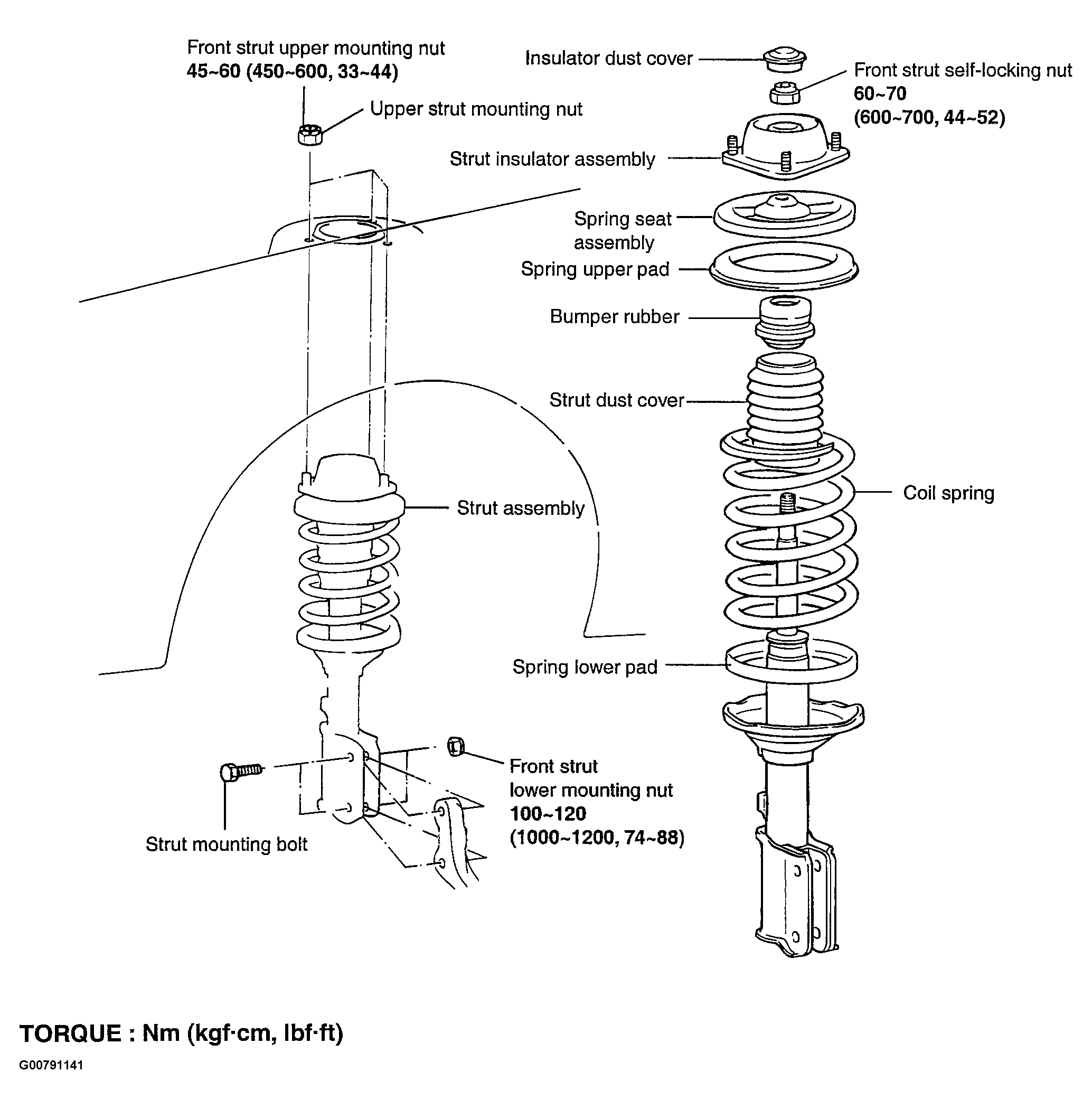

Fig 1: Front Strut Assembly Components
G00791141Courtesy of HYUNDAI MOTOR CO.
